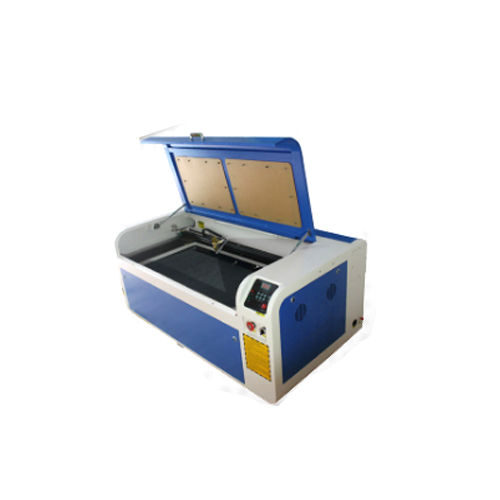

CO2 MDF Laser Cutting Machine

Product Name: CO2 MDF Laser Cutting Machine
Classification: MDF Laser Cutting Machine
Application: Wood, Acrylic, Granite, Stone, Paper, Fabric, etc.
Place Of Origin: China
...

Send Inquiry
Product Details

Product Parameters


Total power

<300W

Laser power

80W

Laser type

CO2 laser engraving machine

Power supply

AC 220V/110V

Working area

400*1000 mm

Engraving depth

0-10 mm (different material differ)

Cutting depth

0-10 mm

Engraving speed

0-600mm/s

Cutting speed

0-600mm/s

Lifting platform

0-250 mm  Honeycomb Worktable

Locating precision

<0.01 mm

Min shaping character

Character: 2*2mm, Letter: 1*1mm

Working temperature

5℃-45℃

Working humidity

5%-95%

Resolution ratio

≤1000dpi

Data transfer interface

USB 2.0 (offline)

System environment

Windows XP / Win 7 / Win 8

Cooling

Water Cooling and protection system with chiller

Graphic Format Supported

The Files which CorelDraw & WinsealXP can identify

(BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF

Compatible software

CorelDraw,WinsealXP

Color separation

NO

Sloping engraving

NO

Protection

Emergency stop buttom and Stop working when water broken

Machine Dimensions

140*75*58 cm

Packing

Wooden box with foam inside

Package Dimension

157*94*78 cm

Package Weight

230 kg  (Counted by volumetric weight )


1.jpg USB Interface

1.jpg Air Assist, Remove heat and combustible gases from the cutting surface.

18W Air pump, flow can be 38L/Min.

1.jpg Embedded Exhaust Fan, Easier install, Safer transport.

40W exhaust fan, flow can be 5.27m³\Min.

1.jpg Rotary Axis, Engrave any cylindrical object.

1.jpg Cellular platform, Leave no chippings on working area.

1.jpg Intuitive Control Panel, Set Speed, power and more controls directly from the laser.

1.jpg Water Cooling and Protection System with a chiller.

With jam-proof heat exchanger, water flow detection alarm, over temperature alarm.

1.jpg Laser position.

1.jpg Emergency Stop Buttom.

1.jpg Larger Size, 400*1000mm working area.

1.jpg Lifting platform is electric control, 0-25cm.

1.jpg Drag - and - chain transmission line

1.jpg Laser focal length: 5CM


Product Features

1.jpg Adjustable Speed and Power, Smooth and Precise Engraving and Cutting

1.jpg A limit switch let it can only work when the cover is closed.

1.jpg Machine service life: 7200H at least for laser tube, 5-8 years for machine body.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of CO2 MDF Laser Cutting Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
