CO2 Ceramic Laser Cutting Machine

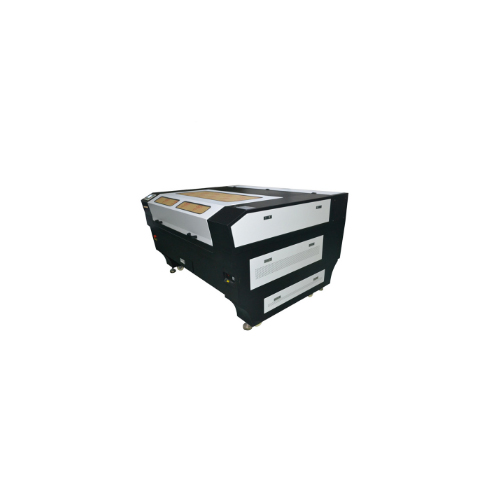

Product Name: CO2 Ceramic Laser Cutting Machine
Classification: Ceramic Laser Cutting Machine
Application: ceramic, fabric, leather, plexiglass, acrylic, etc
Place Of Origin: China
... Send Inquiry
Product Details

CO2 Ceramic Laser Cutting Machine comes with one water chiller, one exhaust fan and one air pumb. For the chiller we have CW3000 and CW5200, customer can choose according to their need. Normally, the laser tube is less than 80W with a CW3000, more than 80W with a CW5200.


Product Parameters


Machine model

K-1390

Cutting area

1300*900mm

Laser power

80W/100W/120W/150W

Cutting speed

0-64000mm/min

Resolution

0.025mm

Minimum shaping character

Chinese character:2mm  Letter:1mm

Resetting positioning accuracy

±0.01mm

Transmission

Linear guide

Operating temperature

0-45°C

Operating humidity

5%-95%(free of condensed water)

Graphic format supported

BMP.GIF.JPG.TGA.TIFF.PLT.CDR.DWG.DXF

Power supply

AC220V±10%.50Hz/60Hz

Cooling system

Water cooling

Cutting thickness

≤30mm(acrylic), ≤15mm(wood)

Control system

RD control system

Gross power

<1250W

Net weight

450KG

Dimension

1900*1530*1100mm


Product Application

1.jpg Application material

This laser cutting machine suitable for fabric, leather, plexiglass, acrylic, plastic, rubber, tile, wood products,bamboo products, wool, paper materials, ceramics and non-metallicmaterials.

1.jpg Application industry

This laser cutting machine is widely used in clothing, footwear, luggage, computerized embroidery and clipping,model,electronic appliance,toys,furniture,advertisementdecoration, packaging, printing, paper products,handicrafts and other industries.


Product Features

K series laser cutting machine, we use the higher quality parts for the machine, which make the machine more stable.

1.jpg Control panel:New English operation interface, easy to operate.

1.jpg Laser head:Our laser machine head use the high quality metal, which make the laser head more strong and not easy to be broken by the smell and the fire.

1.jpg Motor:Stepping motor with instant start and rapid stop the superior characteristics.

1.jpg English button:Clear, simple and easy to operate.

1.jpg Solid aluminum table:Apply to acrylic, wood and other hard materials, all solid aluminum, durable.

1.jpg Linear guide:High precise.

1.jpg Control system:RD newest system. Working more stable, Rd system has the mamory of 1Gb which can remember 800 pieces pictures that youworked. 图1Laser lens:Laser lens and mirror is from signgapore, the back side off the mirror we use the copper, which make the mirror temperature low down fast.

1.jpg Bottom of the machine: The machine design is more professonal, because we use two fan for the power supplier and the motherboard, which let the machine can work in the long time, and no worry about the high temperature. The bottom of the machine can be put the exhaust fan, air pump and tools, saving space.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of CO2 Ceramic Laser Cutting Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
