CO2 Glass Laser Engraving Machine

CO2 Glass Laser Engraving Machine

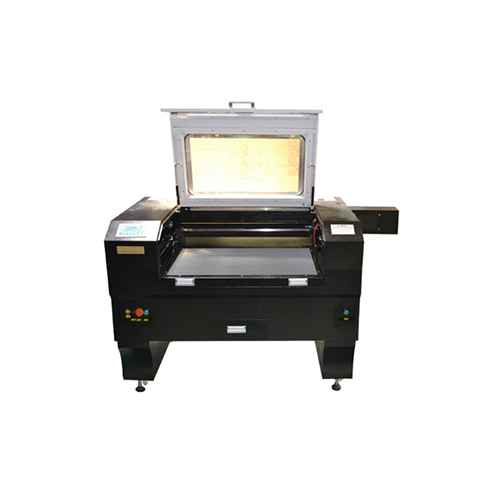

Product Name: CO2 Glass Laser Engraving Machine
Classification: Glass Laser Engraving Machine
Application: Acrylic, Organic Glass, Crafts, etc
Place Of Origin: China
...

Send Inquiry
Product Details

CO2 Glass Laser Engraving Machine has been widely used for emgraving and cutting the non-metal material, including Acrylic, Organic Glass, Crafts, Furniture, Glasses, Wood, PVC, Lightings,Advertising and decorating, pater, packaging ithography, mark plate, atomic stamp & seals, bamboo products, trademarks, embroidery, apparel and other industries. Adoptable for clothing tailoring, embroidery cutting, leather punch Pierced menthol cutting carving processing.


Product Parameters


Model

K-9060

Cutting Area

900×600mm

Cutting Speed

0-64000mm/min

Laser power

60W/80W/100W/120W/150W

Natural life of laser

10000hours

Laser wave length

10.6um

Resolution ratio

0.025mm

Minimum shaping character

Chinese character 2mm/ letter 1mm

Resetting positioning accuracy

±0.01mm

Power Supply

Ac220v±10%,50HZ

Gross Power

<1250W

Operating Temperature

0-45°

Operating humidity

5%-95%

Graphic Format Supported

BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF

Driver Type

Stepper Motor

Cooling

Water cooling

Opearate System

Win98/Win2000/WinXP

Max Cutting thickness

≤30mm(acrylic), ≤18mm(wood)

Net Weight

420KG

Dimension

1400*1200*1100mm



Product Features

1.jpg laser cutting machine K 9060 use RD newest system. machine the laser machine to work more stable, Rd control panel has the english system and chinese system, means it uses two languages. Rd system has the mamory of 1Gb which can remember 800 pieces pictures that youworked.

1.jpg Our laser machine head use the high quality metal, which make the laser head more strong and not easy to be broken by the smell and the fire.

1.jpg inside pully linear, alunimun materials, makes the cutting more accuracy, and the speed more fast, which has the fuction of the pully linear and the straight linear. And it can protect the linear broken by the smoke of cutting PVC.

1.jpg Our laser cutting machine use the strick test, especially for the wire and the electric board, we make it more clear and more clean, Which make the customer work more safety. And for the after sell service customer can exchange the parts more easily.

1.jpg We use the aluninum connector, that keep the X and Y axial more accuracy and not easy to change ther place.

1.jpg laser machine design is more professonal, Because we use two fan for the power supplier and the motherboard. which let the machine can work in the long time, and no worry about the high temperature.

1.jpg laser cutting machine we have 3 style machine table, honey comb table is for the fabbric leather cutting, the aluninum table is for the acrylic wood cutting, the square table is for the small things cutting, three table for different business. Customer can choose the table according to his works.

1.jpg laser the laser cutting machine back side has more space and which machine the chiller and the air suction can put inside and save the space for customer. the through table can put one acrylic board, though the working table is 900*600mm but for the machine, it can out longer side materials.

1.jpg laser K 9060 we use the laser cutting machine lens is from signgapore, and the mirror. the back side off the mirror we use the copper, which make the mirror temperature low down fast.

1.jpg K9060 laser cutting machine use the leishai motor, small machine make the speed more fast, and the machine can be more stable forthe moving system.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of CO2 Glass Laser Engraving Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
