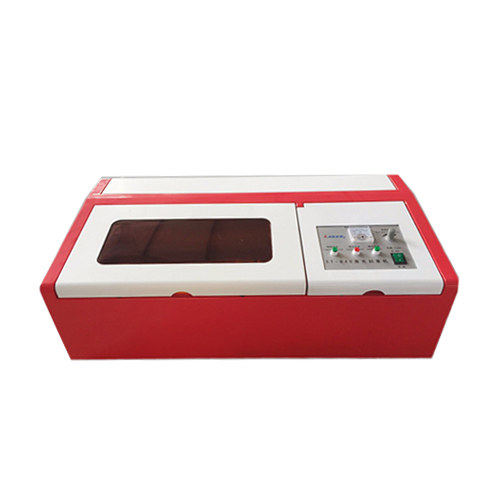

Mini CO2 Leather Laser Engraving Machine

Mini CO2 Leather Laser Engraving Machine

Product Name: Mini CO2 Leather Laser Engraving Machine
Classification: Leather Laser Engraving Machine
Application: plastics, organic, horn, etc
Place Of Origin: China
... Send Inquiry
Product Details

The company’s independent research development Mini CO2 Leather Laser Engraving Machine is the collection computer, the laser, the automated control and the precision machinery to a body high tech product, the characteristic: performance advanced, the quality stable, the ease of operation, the compatibility is strong and so on.


Product Parameters


Type

HX40A

Engraving Area

220 X 200mm

Laser Power

≤40W

Engraving Speed

100mm/s

Engraving Depth

1.2mm

Minimum Shaping Character

1 X 1mm

Resolution Ratio

0.025mm

Power Supply

220V(or110V)±10% 50HZ

Resetting Positioning Accuracy

≤0.01mm

Gross Power

500W

Operating Temperature

0-45°C

Operating Humidity

35-70°

Graphic Format Supported

PLT,DXF,BMP,JPG,GIF,PGN,TIF

Engraver For Curve Surfaces(Yes/No)

No

Water Cooling(Yes/No)

Yes

Maximum Height Of Materials To Engrave

60mm

Laser Tube(life hours)

800-1000 Hour

Recommended Spare Parts/Consum Ables

Laser Tube



Product Application

1.jpg Applicable industry:musical instruments,bamboo handicrafts,wooden boxes ,advertising ,decoration,toys,electronics,model,paper products ,craft gift industry,model industry (building model,air navigation model ),furniture industry,the printing plate-making industry,decoration industry ,photographic industry,paper -cut sticker industry, and so on

1.jpg Applicable materials: Cancarvewood, coconutshell, paper, plexiglass, acrylic , marble, granite, jade, crystal and other non-metallic materials,can also be equipped with rotate auxiliary device to process cylindrical items such as cups,pen container, trophies and so one.


Product Features

1.jpg Multi-function electric lift table,can cut and carve one entire ink back seal pad, is more suitable for a variety of non-metallic seal material carving, has many kinds of application.

1.jpg DSP independent operations control system has the industry's most advancedfunction of continuing carving where power off , and reduce material waste.high Engraving speed, high accuracy, completely off-line operation, easy to operate and save computer resources.

1.jpg mandatory water protection, which can directly avoid the unnecessary loss caused by laser tube working without water.

1.jpg With DSP industrial control system can Support PLT, BMP, DXF, DST and many other output format, freely design and engrave all kinds of patterns and text, can easily create finger prints and other anti-counterfeiting seals.

1.jpg light,electricity,mechanical integration, get rid of smoke and dust,air blowing protection, a more compact and reasonable mechanical structure ,reliable electrical performance.

1.jpg The well-known brand laser systems,real-time adjustable laser power ,long life.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Mini CO2 Leather Laser Engraving Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
