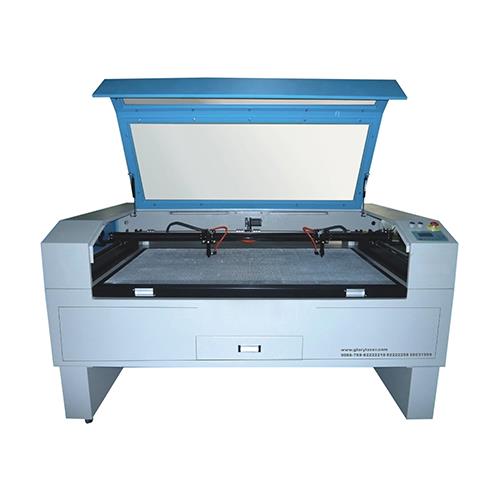

Desktop CNC CO2 Leather Laser Engraving Machine

Desktop CNC CO2 Leather Laser Engraving Machine

Product Name: Desktop CNC CO2 Leather Laser Engraving Machine
Classification: Leather Laser Engraving Machine
Application: plywood, stone, marble, glass, jade, crystal, etc
Place Of Origin: China
... Send InquiryChat Now
Product Details

Product Parameters


Model

AOL-6090/AOL-1390/AOL-1410/AOL-1610/AOL-1810/AOL-1812/AOL-1325/AOL-1530

Working area

600×900mm/1300×900mm/1400×900mm/1600×1000mm/1800×1000mm/1800×1200mm/

1300×2500mm/1500×3000mm

Laser power

60W/80W/100W/130W/150W

Control system

DSP control system

Drive system

Leadshine stepper driver & motor

Cutting Speed

0-60000mm/min

Engraving Speed

0-40000mm/min

Highest Scanning Precision

Constant temperature water cooling and protecting system

Positioning Accuracy

≤0.01mm

Graphic Format Supported

DST, PLT, BMP, DXF, DWG, AI, LAS, etc.

Compatible Software

CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc.

Power Supply

AC220V+10%, 50Hz/60Hz

Cooling Type

Water Cooling

Other auxiliary equipment

Exhaust-fans and air-exhaust pipe

Minimum letter size English

1 x 1mm   Chinese:2 x 2mm

Working temperature

0 - 45°C



Product Application

(1)Cutting:acrylic,perspex,wood,MDF,plywood,veneer,paper,leather,rubber,fabric,cloth,canvas,foil,leather,fur,foam,plastic,PES,PC,PA, PE,PP,composite material, PVC, etc.

(2) Engraving: acrylic,perspex,wood,MDF,plywood,stone,marble,glass,jade,crystal, metal coating,paper,leather,rubber,fabric,cloth,plastic,PVC, etc.


Product Features

1.jpg The laser machine both can engrave & cut. Besides, scanning functions and more functions are widely used.

1.jpg More scientific design and high-strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.

1.jpg Reci brand laser tube lifetime is 3 times longer than the common laser tube, laser beam is more stable, lifespan reach 10000 hours.

1.jpg All models adopt imported components to ensure the high accuracy,faster speed and longer using life.

1.jpg According to process different materials,you can choose knife strip stable,honeycomb table and flat table.

1.jpg The materials are able to be through the laser machine front and rear, so materials length is unlimited.

1.jpg LCD controlling panel support various languages and clear display, so it iis more convenient to operate.

1.jpg Combined with the sophisticated technique computer control,precision machinery,DSP digital control technology,USB data transmission and other high-tech.

1.jpg Water Cooling System with Alarm Protection, if there's no water or the water flows in opposite direction, there'll be no laser, which protects the laser tube in an effective way.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Desktop CNC CO2 Leather Laser Engraving Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
