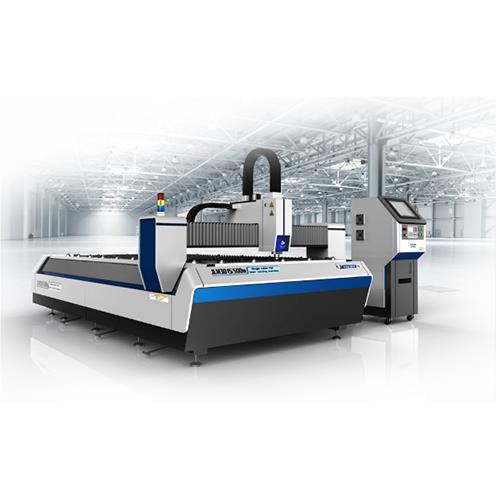

Product Name: CNC Metal Fiber Laser Cutting Machine
Classification: Fiber Laser Cutting Machine
Application: Metal, etc.
Place Of Origin: China
CNC control language: Besides English, we have professional Russian, Spanish, German language, we can also support local agent to translate any language in need
IPG: 500,700, 1000, 1500, 2000, 3000, 4000, 6000, 8000,10000W
Trumpf : 2000W, 3000W, 4000W, 6000W, 10000W
Raycus: 500, 750, 1000, 1500W
Machine size:3015, 4015, 4020, 6015, 6020, 6023, 6025, 6525, 8020, 8025, 9520, 12025, 13030….. We customize as your metal sheet size
Machine type: Single table, auto feeding shuttle table
Enclosed table, open table all available
Plate and tube cutting table, tube cutting machine available
Support different images format as Al, DXF, PLT, Gerber, can read standard ISO G codes from MaterCam, Type3 such nesting software.
Automatically optimization when open or lead in DXF file, like delete repeated line, merge connected lines, recognize in/out cutting file and file sorting out. User can decide to manually do above work, or let controller do it automatically.
Support conventional picture edit functions
Following what you see is what you get, to set lead in/out, kerf compensation, merge, bridge, over burning, save gap ….etc
Unique function of Preview of cutting work flow.
Support segmental pierce, Progressive pierce, Pre-pierce, power pierce,separately setting output laser watt, frequency, laser type, air type, pressure, auto cutting height during pierce and cutting.
Support to set separate lead in/out speed according to adjustment of laser power.
Big storage, allowing user to save all cutting parameters to use it again on same material.
Breakpoint recovery, CNC can return to the point where the cutting stopped, allowing partial file cutting. It can go to any point to start there after stop or pause.
Same software can support round tube cutting and plate cutting, programming is same, and support intersect cutting.
Support to cut at set height, automatically seek edge, and start from outside of workpiece, or lift up when torch is out of workpiece.
Powerful expanding capability, over 15 PLC process programming, over 30 programmable processes.
Input/output and alarm input are programmable, support wireless remote control, and support internet …
Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.
The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.
Pre-sale services: enthusiasm
We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.
Sale services: servant
Send technicians to the job site for guiding the installation and adjustment of CNC Metal Fiber Laser Cutting Machine, training operators and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
