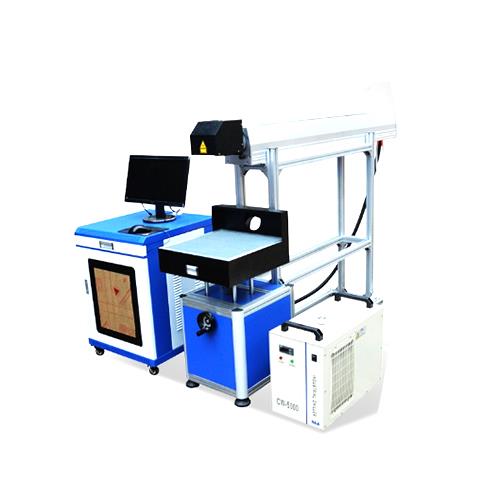

CO2 Laser Marking Machine for Wood

Product Name: CO2 Laser Marking Machine For Wood
Classification: CO2 Laser Marking Machine
Application: buttons , snaps, wood, jeans, cloth, etc
Place Of Origin: China
...

Send Inquiry
Product Details

CO2 Laser Marking Machine For Wood adopts RECI 80W Co2 glass laser tube, spot mode, stable performance, long lifetime, mainly used to cut and mark on nonmetal materials, high speed, high precision, high efficiency. This Co2 Laser Markers Machine be used in wood, paper, leather, cloth. Plexiglass, epoxy, acrylic, plastic, unsaturated polyester resin and other non-metal materials.


Product Parameters


Model

MT-DF60

MT-DF80

MT-DF100

Work Area (cm)

10x10/16x16/22x22/30x30(Optional)

Laser Generator

RECI 100W CO2 Glass Laser Tube

Laser Power

100W

Wavelength

10640nm

Min Character

0.4mm

Marking Speed

≤7000mm/s

Marking Depth

≤0.3mm

Repeat Precision

±0.003mm

Cooling Style

Air Cooling

Power Supply

220V(±10%)/50Hz/15A

Gross Power

<1.5KW

Operating Temperature

10℃-45℃

Software Supported

Special design powerful laser marking software, with
simple operating menu, may print each Chinese and
English fonts, PLT, DXF, BMP document, the
sequence number (automatic sequence
arranges), the bar code and the two-dimensional code.

Standard Fittings Parts

Simple up/down working platform, cooling, controlling
systems and 15 LCD

Warranty

12 Months

Dimension (cm)

120x33x122 (Optic System)

56 x84 x83 (Control System)



Product Application

1.jpg Applicable Materials:

This Co2 Laser Marker Machines can be used in wood, paper, leather, cloth. Plexiglass, epoxy, acrylic, plastic, ucsaturated polyester resin and other non-metal materials

1.jpg Applicable Industry:

This series Co2 Laser Markers Machine is widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries, can be combined with streamline for online marking.


Product Features

1.jpg Fast speed marking on non-metal materials, marking speed may achieve 230 characters per second.

1.jpg Mark the small area leather or textile material cutting, with maximum marking area 150mm*150mm.

1.jpg Mechanism as well as the control system can be custom-made according to customer special requirements.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of CO2 Laser Marking Machine For Wood, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.

Inquiry
Hot Tags: co2 laser marking machine for wood, China, manufacturers, suppliers, buy, cheap, price,
