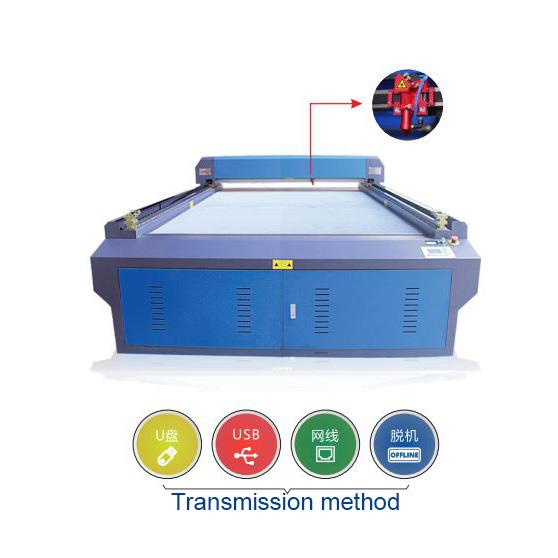

CO2 Leather Laser Cutting Machine

CO2 Leather Laser Cutting Machine

Product Name: CO2 Leather Laser Cutting Machine
Classification: Leather Laser Cutting Machine

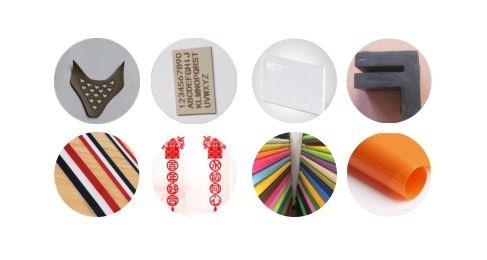

Application: fabric, leather, acrylic, crytal, glass, etc.
Place Of Origin: China
... Send InquiryChat Now
Product Details

Product Parameters


Machine model:

LM-1325 Laser cutting machine for textile

Laser type:

Sealed CO2 laser tube, wavelength: 10.64μm

Laser power:

80W / 100W / 150W / 180W

Cooling mode:

Circulating water cooling

Laser power control:

0-100% software control

Control system:

DSP offline control system

Max. engraving speed:

60000mm/min

Max cutting speed:

50000mm/min

Repetition accuracy:

0.01mm

Min. letter:

Chinese: 1.5mm; English: 1mm

Table size:

1300x2500mm

Working voltage:

110V/220V,50~60Hz

Working conditions:

temperature: 0-45°C, humidity: 5%-95%

Control software language:

English / Chinese

File formats:

*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, *doc


Options

1.jpg Red dot

The laser is invisible. Red dot shows the position of the laser on the material. It’s more convenient for location.

1.jpg Honeycomb or blade table optional

Aluminum blade table is for processing acrylic, wood and other hard materials;

Honeycomb table is for processing cloth, leather and other soft materials.

1.jpg Up/down Z-axis

You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.

1.jpg Auto focusing

Auto focusing automatically adjust the focusing distance.

1.jpg Rotary

Rotary is used when processing cylindrical objects like bottles, cups, sticks, etc.


Product Features

1.jpg CO2 Glass sealed laser tube

China famous brand (Reci, Yongli), good beam mode stability, service time over 1500~8000 working hours.

1.jpg Laser Power

40W~180W, good quality and stable output to extend the laser tube service time.

1.jpg Singapore imported lens and mirrors

High transmittance, good focusing, reflecting effect.

1.jpg DSP control system, Leetro Controller

Leetro USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.


1.jpg High accuracy stepper motors and drivers. Belt transmission

1.jpg Aluminium blade table

1.jpg Tiwan Linear guide rails

1.jpg Lasercut 5.3 software, user’s manual

1.jpg Tool box


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of CO2 Leather Laser Cutting Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
