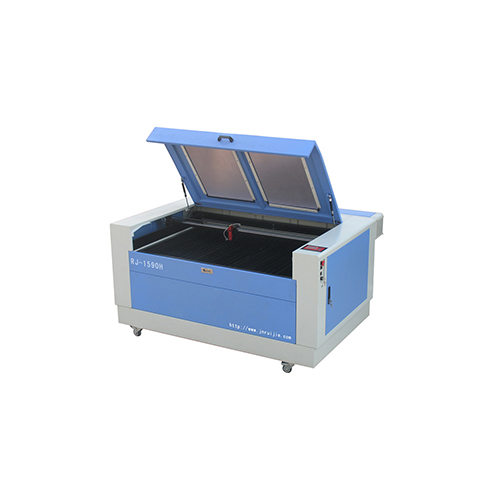

PCB CNC Leather Laser Cutting Machine

PCB CNC Leather Laser Cutting Machine

Product Name: PCB CNC Leather Laser Cutting Machine
Classification: Leather Laser Cutting Machine
Application: fabric, leather, acrylic, crytal, glass, etc.
Place Of Origin: China
... Send Inquiry
Product Details

Product Parameters


Model

DRK1390

X,Y Working Area

1300x900mm

Laser power

80w (90/100/130/150w option)

Laser type

CO2

Laser head NO.

One ( two heads option)

Reflector and focus mirrors

Imported

Linear rail

Taiwan HIWIN square guide rail

Table type

Knife ( Option: Honeycomb )

Cooling system

Water chiller 3000

Other accessories

Air pump,  Exhausted fan

Engraving Speed

0-60000mm/min

Cutting speed

0-36000mm/min

Resetting position accuracy

±0. 01mm

Control system

Leetro System /RD system

Software

Laser cut / Laser work

Graphic format supported

BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF

Software supported

CorelDraw, PhotoShop, AutoCAD, TAJIMA,Artcut

Laser Output

1-100% Software Setting

Operating temperature

0 - 45℃

Operating humidity

5 - 95%

Working Mode

3-phase Stepper

Cooling Mode

Water cooling and protect system

water supply cut-off protection

YES

Dichroic Cutting

Up to 256 colors

Gross power

<1200W

Minimum shaping character

English 1 x 1mm

Working Voltage

220V/50HZ , 110V/60HZ

Command G Code,

*uoo, *mmg, *plt

Resolution rate

4000DPI

Focus

Auto focus system option

Table

up and down table option

Packing

Plywood case

Machine Size

1,750 x 2,900 x 800mm

Packing Size

3515x1930x1365mm

N.W

600KGS

G.W

750KGS


Product Advantages

1.jpg Adjustable Speed and Power, Smooth and Precise Engraving and Cutting

1.jpg USB Interface or off USB , U-Flash Disk Supported, Can work without a PC.

1.jpg Air Assist, Remove heat and combustible gases from the cutting surface.

1.jpg Embedded Exhaust Fan, Easier intall, Safer transport.

1.jpg Rotary Axis, Engrave any cylindrical object.

1.jpg Cellular platform, Leave no chippings on working area.

1.jpg Intuitive Control Panel, Set Speed, power and more controls directly from the laser.

1.jpg Water Cooling and Protection System.

1.jpg Laser position.

1.jpg Emergency Stop Button.

1.jpg Lifting platform is electric control.

1.jpg Drag - and - chain transmission line


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of PCB CNC Leather Laser Cutting Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
