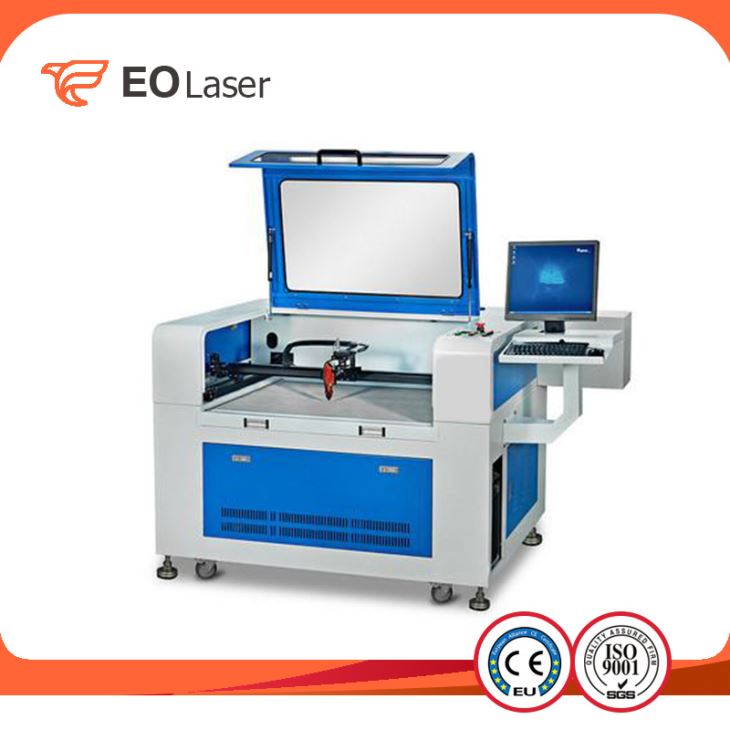

Jeans Cloth Lable Laser Cuting Machine

Jeans Cloth Lable Laser Cuting Machine

Applicable for computerized embroidery label, irregular label, embroidery craftwork, print fabric industries for nonmetal materials artwork / patterns cutting.... Send Inquiry
Product Details



Parameters:
ModelGW-6040/6090
Engraving and Cutting Area600*400mm / 600*900mm
Tube typeCO2 sealed glass tube
Laser wave10.6um
Laser PowerWJ-60W
CoolingPure water (S&A water chiller CW3000)
Engraving Speed0-75,000mm/min
Cutting Speed0-40,000mm/min
Reposition Accuracy±0.01mm
Minimum Character SizeEnglish:1mm ; Arabic numbers:1mm
Resolution4,000 dpi
File output mode2.0 USB interface
Machine Power<2,000W
Support Format and SoftwarePLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 5.3
Working Environment Temperature0-45°C
Drive systemLeashine Stepper motor
Control systemRuida DSP offline control system
Exhaust smoke systemBig exhaust fan ( Optional Air purified)
Working Voltage220V,50HZ/60HZ
N.W.260KG
G.W.320KG
Warranty time2 year for machine
Packageplywood case
Optionalmotorized up & dwon table
Delivery time3 working days after received the deposit




Introduction:

1 This model will be supplied with a computer.



2. It adopts CCD camera with 3,200,000 pels and super-recognition software, ensuring the accuracy of cutting trademarks with whole area, without remaining anyone.



3. It can scan the labels and trademarks in size of 150×150mm in a whole piece. And the biggest size of design it can cut at one time is up to 750×500mm(for GW-9060).



4. In the combinative work of pick up positioning visual system and computer software, this model can carry out overall and automatic trace compensation to the fine stretch and distortion of cloth.



5. It improves productivity greatly and it's convenient to use because of providing automatic loading and unloading system for roll and long mark spinning products.



6. The adoption of pick-up positioning system indicates that laser technology and automatic as well as man-made visual intellectual technology combined harmony. There is no question that it can be a good help for getting continuous and positive productive, and improve productivity.



Product features:

1.CCD camera pick-up positioning labels laser cutting machine adopts high quality DSP technology and internationally leading camera pick-up graphics defination system. C Series fully automatic labels laser cutting machine provides a full set of special designs cutting solution.



2.The first company in China adopting the self-developed ERP management system, 100% of the materials and parts are tested by precise equipment, each laser tube are age-tested for 8 hours, all finished machines go through an 8-hour running test before delivery.



3.Camera resolution is 3,200,000pels; it can automatically pick up the designs before cutting by setting with computer software.



Applicable industries: Applicable for computerized embroidery label, irregular label, embroidery craftwork, print fabric industries for nonmetal materials artwork/patterns cutting.   Applicable materials: Fabric, leather, PU, acrylic, plastic and other nonmetal materials.


Applicable materials:

Fabric, leather, PU, acrylic, plastic and other nonmetal materials.
