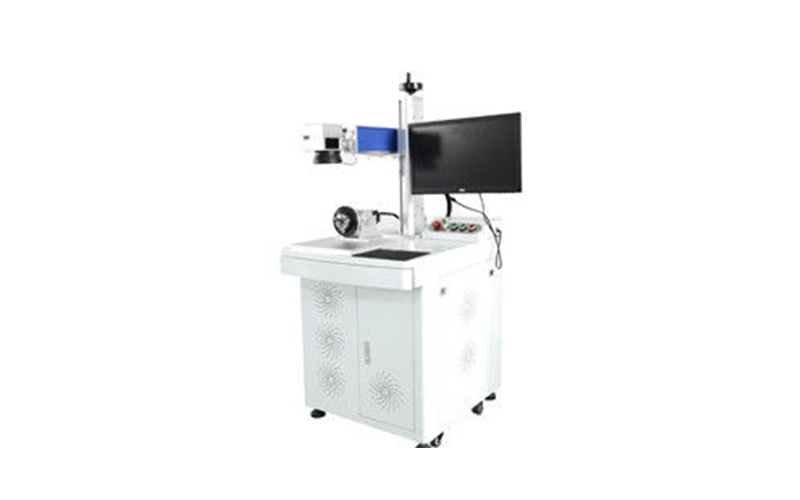

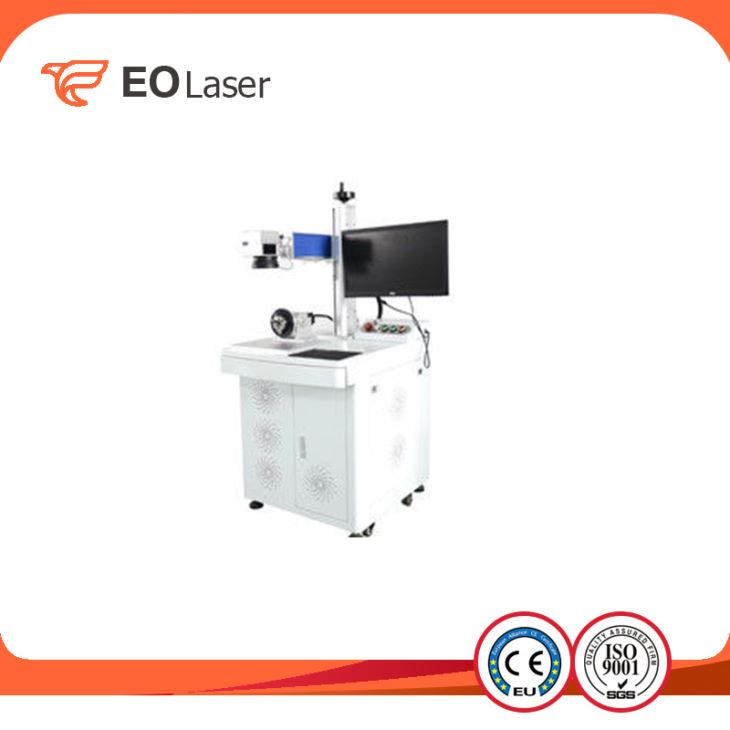

Gold Jewellery Laser Engraving Machine

Gold Jewellery Laser Engraving Machine

This system has advantages of fast scanning speed, high repetition accuracy, good durability, etc., able to ensure the quality and nice look of the laser markings, especially suits for mass production and pipeline operations....

Send Inquiry
Product Details


Product Details:
Place of Origin:China
Brand Name:Raycus Laser Source
Certification:CE
Model Number:LB-MF20




Detailed Product Description
Laser Type:Fiber LaserLaser Source:Raycus Laser Source
Laser Power:30WEngraving Area:300x300mm
Engraving Speed:≤7000mm/sCooling System:Air-cooling
Power Consumption:0.8KWMaterials:

Stainless Steel

 Aluminum



Machine Profile



Fiber Laser Marking Machine is a new type of laser marking machine innovated and developed according to the developing market needs. We use the most advanced laser marking system -- high-speed scanning galvanometer laser marking. This system has advantages of fast scanning speed, high repetition accuracy, good durability, etc., able to ensure the quality and nice look of the laser markings, especially suits for mass production and pipeline operations.



Machine Features



(1) Fiber laser marking technology in the above mentioned applications has the following features:

(2) Good flexibility (computer programmed, free to mark a variety of graphics, texts and other kinds of information);

(3) High precision, consistent marking quality;

(4) Markings are permanent with high abrasion resistance;

(5) Low use-cost, high speed, high production efficiency;

(6) Little pollution, environmentally friendly;

(7) Anti-counterfeiting function.




TypeLB-MF10LB-MF20LB-MF30
Laser Power10W20W30W
Laser wavelength1064nm1064nm1064nm
Beam qualityM2≤1.3M2≤1.3M2≤1.3
Laser repetition rate20KHz~80KHz20KHz~80KHz20KHz~200KHz
Working area

50×50mm

~110×110mm

70×70mm~

175×175mm

70×70mm~

200×200mm

Marking speed≤7000mm/s≤8000mm/s≤8000mm/s
Min.characters0.15mm0.15mm0.15mm
minimum line width0.01mm0.01mm0.01mm
Repeated precision±0.001mm±0.001mm±0.001mm
Cooling systemair-cooledair-cooledair-cooled
Power supplyAC220V/50HZAC220V/50HZAC220V/50HZ
power consumption0.5KW0.8KW1.2KW
Dimension800mm×620mm×1340mm800mm×620mm×1340mm800mm×620mm×1340mm mm




Application Fields



Industry: plastic keypad, components of digital products, electronic components, electrical appliances, jewellery, precision machinery, hardware accessories, glasses, clocks and watches, vehicle and motor accessories, sanitary ware, communication products, medical devices, integrated circuit(IC), building material, pipe materials, more suitable for the marks of high demand of accuracy, speed and depth.



Materials: metal and various nonmetal materials, high hardness alloy steel, oxide, electroplating and vacuum plating, epoxy resin, printing ink, ABS and other engineering plastic.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation
