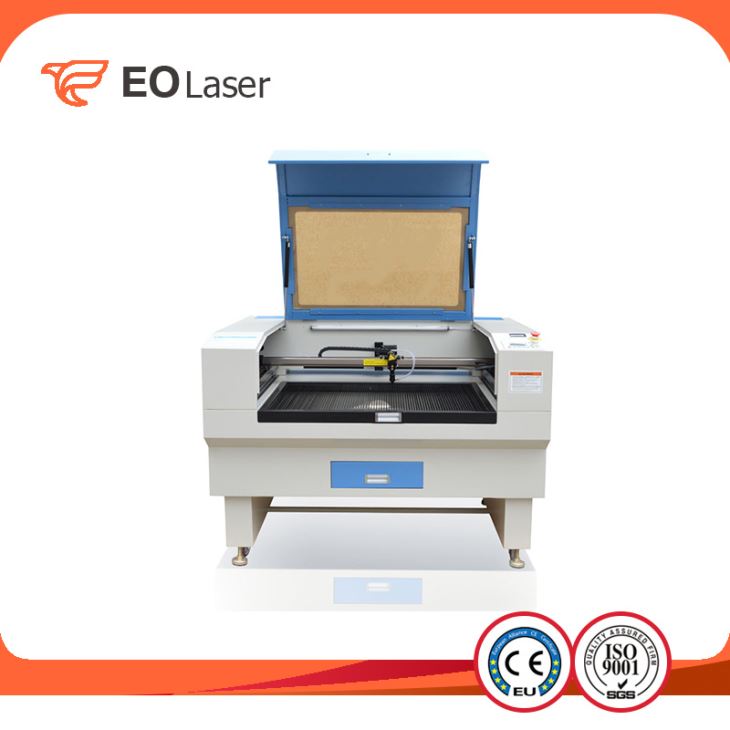

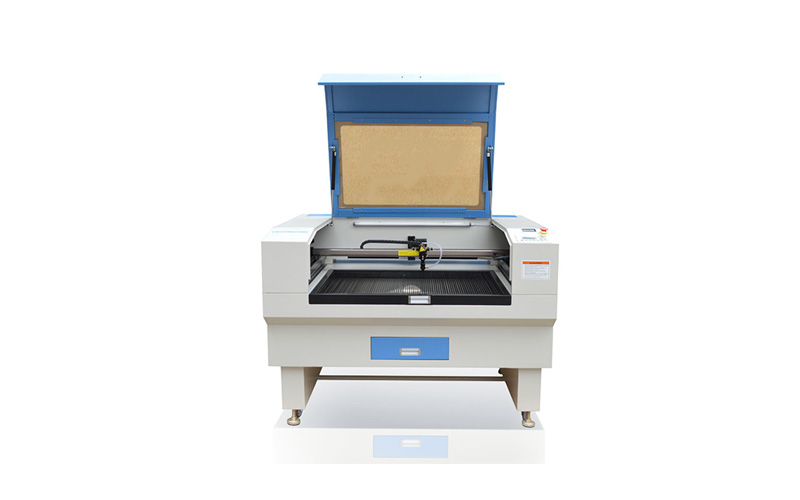

Jewelry Laser Engraving Cutting Machine

Jewelry Laser Engraving Cutting Machine

900*600MM working table size is suitable size co2 laser cutting machine, and the co2 laser cutting machine is very popular in market as new cutting technology, especially in some industry....

Send Inquiry
Product Details

Quick Details
Application:Laser Engraving
Laser Type:CO2
Engraving Area:90*60CM
Engraving Speed:0-64000MM/Min
CNC or Not:Yes
Cooling Mode:Water Cooling
Applicable Material:Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin:China (Mainland)
Brand Name:EO
Model Number:EO-9060
Certification:CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided:Engineers available to service machinery overseas
Laser Power:60W-100W (Optional)
Power Supply:AC110V/220V-240V ± 10%, 50/60HZ
Cutting Speed:0-36000MM/Min
Focal Length:38.1,50.8,63.5,75,100MM
Min Line Width:0.15-0.3MM
Location Precision:+/-0.015MM
Controller System:DSP High Speed Controller
Graphic Formats Supported:PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Gross Power:<1250W

1.   Acrylic Laser Engraving Cutting Machine specification:

Work Area (cm)60 × 4090 × 60100 × 60100 × 80
Laser GeneratorWater cooled Co2 glass sealed laser tube
Laser Power60W/70W (Optional)
Drive MotorsMicro stepping stepper motor system
Control System64 Bit DSP
PC InterfaceUSB 2.0 Port, USB Disk
Cutting Speed0-48000mm/min
Engraving Speed0-64000mm/min
Resolution Ratio<0.025mm
Power SupplyAC110V/220V-240V ± 10%, 50/60HZ
Location Precision<0.01mm
Operating Temperature0°C-45°C
Graphic Format supportedHPGL(PLT), JPGE, PCS, TGA, DST, DXP, DXF, DWG, CDR
Red PointerOptional
Dual Laser HeadNoNoOptionalOptional
AccessoriesWater cooling unit, Air Pump, Exhaust Blower Unit
Warranty12 Months
Dimension (cm)110×98×120148×118×120158×118×120158×138×120
Weight (kg)200260310370


2.   Acrylic Laser Engraving Cutting Machine feature:

co2 laser engraving machine, adopt DSP control technology, special type laser power source and closed circulation chain stainless steel working bench to ensure working stability.

Adopt high quality stepping motor and driver.

USB to transmit date, and equipped with large capacity internal memory, greatly improving working speed and efficiency.


3.   Acrylic Laser Engraving Cutting Machine applicable Materials:

Bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, paper, film, canvas, acrylic, plastic.


4.   Acrylic Laser Engraving Cutting Machine applicable Industry:

co2 laser engraving machine mainly used for the engraving and cutting on acrylic, wood, variety of plastic, Fabrics (silk fabrics, cotton fabrics, decorative fabrics, polyester fabrics, synthetic fabrics,), leather (leather, artificial leather, decorative leather, packaging leather, soft-leather), cardboard and other supplies, and all kinds of non-metal material.

Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
