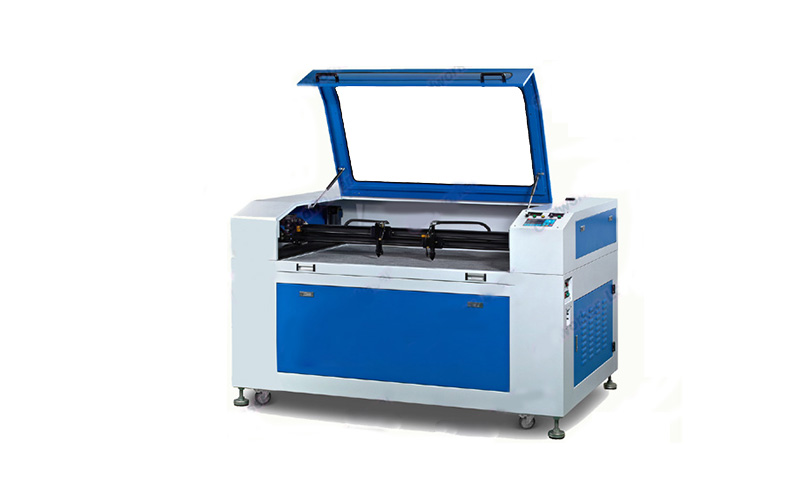

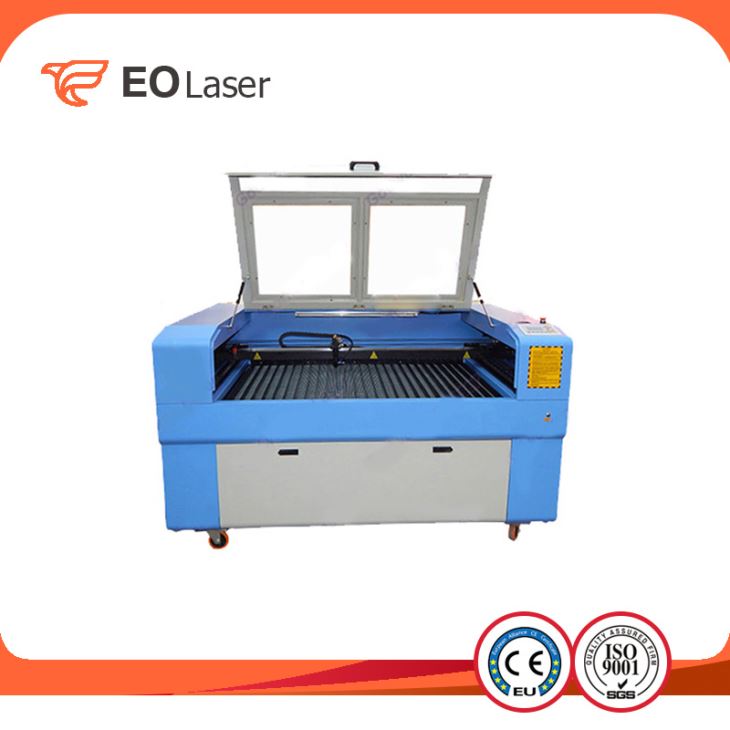

GW-1410 Digital Laser Engraving Machine

GW-1410 Digital Laser Engraving Machine

Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.... Send InquiryChat Now
Product Details



Parameters:
ModelGW-1410
Engraving and Cutting Area1400*1000mm (L* W)
Tube typeCO2 sealed glass tube
Laser wave10.6um
Laser PowerRECI-80W
CoolingPure water (GZ teyu water chiller CW3000)
Engraving Speed0-75,000mm/min
Cutting Speed0-40,000mm/min
Reposition Accuracy±0.01mm
Minimum Character SizeEnglish:1mm ; Arabic numbers:1mm
Resolution4,000 dpi
File output mode2.0 USB interface
Machine Power<2,000W
Support Format and SoftwarePLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 5.3
Working Environment Temperature0-45°C
Drive systemLeashine Stepper motor
Control systemRuida DSP offline control system
Exhaust smoke system550w exhaust fan ( Optional Air purified)
Working Voltage220V,50HZ/60HZ
N.W.500KG
G.W.560KG
Warranty time2 year for machine (12 months for RECI tube)
PackageWooden case
Packing size2370*1870*1300mm
Delivery time3 working days after received the deposit




Applicable Industry:

1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell

2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.

3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.

4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.

5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.

6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.

7.Product Identification Industry: Security marking products, etc.


Applicable Material:

Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf , Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
