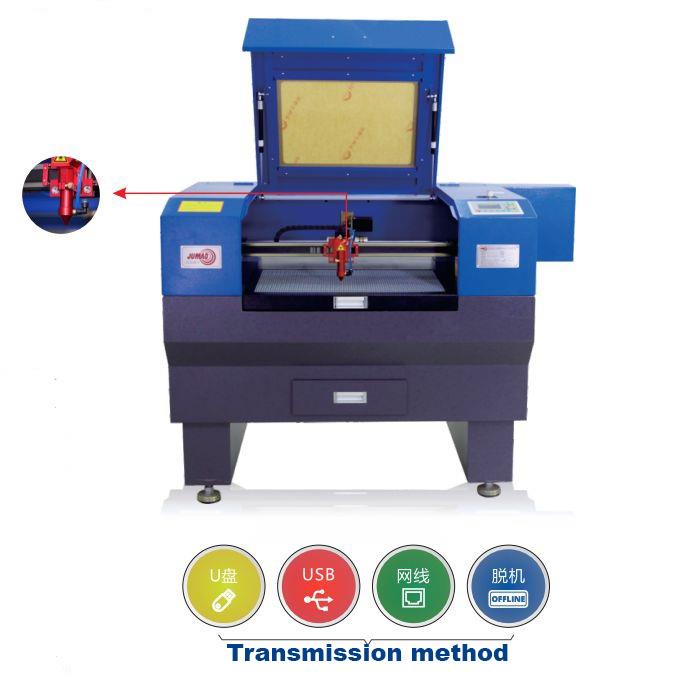

PVC Board Co2 Laser Cutting Machine

PVC Board Co2 Laser Cutting Machine

Wood, acrylic, plastic, corian, delrin, cloth, leather, melamine, paper, pressboard, matte board, mylar, rubber, veneer, cork and more... Send InquiryChat Now
Product Details



Quick Details
Application:Laser CuttingCondition:NewLaser Type:CO2
Applicable Material:Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood, coated metalCutting Thickness:0-20mm depend on different Materials, speed and powerCutting Area:900*600mm
Cutting Speed:0-40000mm/minCNC or Not:Yes

Cooling

 Mode:

Water Cooling

Control

Software:

RuidaGraphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Files which CoreDraw,Photoshop and AutoCAD can identify

Place of

 Origin:

China (Mainland)
Brand Name:EO

Model

 Number:

sh-g690Certification:CE, ISO, FDA

After-sales Service Provided:

Engineers available to service machinery overseasType:Co2 laser cutting machine 6090Laser tube:Co2 Laser Tube
Laser power:80W/100W/130W /150W (optional)application:Engraving and cutting

Compatible

 Software:

Rdworks CorelDraw AutoCAD directly output
worktable:no up down table or motorized up down table or autofocuslong material:front and back door for long material pass thoughdata transfer:computer/ also support offline work , one U disk enough
accessories:all necessary accessories is includ






Engraving Materials: Wood, cork, veneer, rubber, jade, acrylic, plastic, glass, fiberglass, marble, corian, leather, fabric, cloth, coated metals, anodized aluminum, ceramics, tile, mylar, delrin, melamine, paper, pressboard, matte board and more.



Cutting Materials: Wood, acrylic, plastic, corian, delrin, cloth, leather, melamine, paper, pressboard, matte board, mylar, rubber, veneer, cork and more.




parameter
Laser power80W/100W/130W/150W(optional)
laser typehermetic co2 glass tube
power supply220V/110V  ±10%
working area60×90cm/ 130*90cm/ 160*100cm
max moving speed0-40000mm/min
worktable

honeycomb worktable, up/down worktable, aluminium blade

(optional)

location precision<0.01mm
Min shaping Charactercharacter:2×2mm,letter:1×1mm
Operating Temperature5°C-35°C
Resolution Ratio≤4500dpi
Control ConfigurationRuida -  RD6442G
Data Transfer interfaceUSB (offline)
System Environmentwindows2000/windows XP/ Vista/win7/win10
Cooling Waywater cooling and protection system
Graphic Format Supported

The Files which CorelDraw.Photoshop.AutoCAD Can identify

(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,

CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX)

Compatible SoftwareCorelDraw, AutoCAD
Cutting Thickness0-20mm(depends on different materials)
Color Separationseparation of cutting up to 256 colors
Sloping EngravingYes, slope can be designed discretionarily
Cuts off the Water Supply the Protectionyes
Machine Dimension1.50*1.35*1.09m
Package Dimension1.61*1.46*1.29m
Net Weight300kgs
Gross Weight395kgs
Optional PartsCW3000/CW5000/CW5200 water chiller, cylinder/irregular rotary attachemnt



Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service


Inquiry
