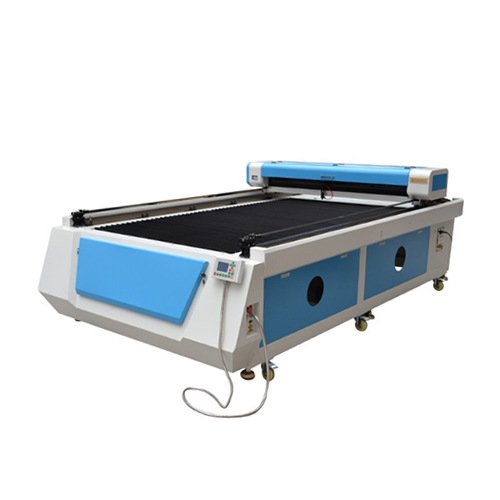

CNC Acrylic Laser Engraving Machine

CNC Acrylic Laser Engraving Machine

Product Name: CNC Acrylic Laser Engraving Machine
Classification: Acrylic Laser Engraving Machine
Application: Acrylic, Organic Glass, Crafts, Furniture, etc
Place Of Origin: China
... Send InquiryChat Now
Product Details

Our CNC Acrylic Laser Engraving Machine has been widely used for engraving and cutting on nonmetal material, including Acrylic, Organic Glass, Crafts, Furniture, Glasses, Wood, PVC, Lightings, Advertising and decorating, pater, packaging ithography, mark plate, atomic stamp & seals, bamboo products, trademarks, embroidery, apparel and other industries. Adoptable for clothing tailoring, embroidery cutting, leather punch Pierced menthol cutting carving processing.


Product Parameters


Model

K-1325 laser machine

Engraving Area

1300×2500mm

Engraving Speed

0-64000mm/min

Laser power

80W/120W/150w

Natural life of laser

10000hours

Laser wave length

10.6um

Resolution ratio

0.025mm

Minimum shaping character

Chinese character 2mm/ letter 1mm

Resetting positioning accuracy

±0.01mm

Power Supply

Ac220v±10%,50HZ

Gross Power

1500w

Operating Temperature

0-45

Operating humidity

5%-95%

Graphic Format Supported

BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF

Driver Type

Stepper Motor

Cooling

air and water cooling

Opearate System

Win98/Win2000/WinXP

Max Cutting thickness

10-30mm(acrylic)

Net Weight

600KG

Dimension

1600×3250×1150mm



Product Application

1.jpg Cutting

Acrylic,perspex,wood,MDF,plywood,veneer,paper,leather,rubber,fabric,cloth,canvas,foil,leather,fur,foam,plastic,PES,PC,PA, PE,PP,composite material, PVC, etc.

1.jpg Engraving:

acrylic, perspex, wood, MDF, plywood, stone, marble, glass, jade, crystal, metal coating, paper, leather, rubber, fabric, cloth, plastic, PVC, etc.


Product Features

1.jpg Advanced LCD Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.

1.jpg LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

1.jpg Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.

1.jpg Special Front and back running-through design, the unique door for the limitless engraved materials through.

1.jpg Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;

1.jpg Water Cooling System with Alarm Protection, adopt CW-5200 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.

1.jpg Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube , makes high efficiency and steady.

1.jpg High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.

1.jpg Red Light Pointer realizes the exact position without laser.

1.jpg Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of CNC Acrylic Laser Engraving Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
