EO CO2 laser machine,able to engrave various non-metals, like paper, acrylic, double-color plate, marble, wood, MDF, plywood,textile,leather, glass,etc....
Send Inquiry| Quick Details | |||||
| Condition: | New | Laser Type: | CO2 | Engraving Area: | 600*400mm |
| Engraving Speed: | 0-60000mm/min | CNC or Not: | Yes | Cooling Mode: | Water Cooling |
| Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | China (Mainland) |
| Brand Name: | EO | Model Number: | EO-6040 | Dimension(L*W*H): | 600*400mm |
| Certification: | CCC, CE, GS, ISO, SGS, UL | After-sales Service Provided: | Engineers available to service machinery overseas | The Key words: | 2018 New design desktop cnc laser engraving and cutting machine |
| Laser power: | 40w/60w/80w/100w | Work mode: | Step motor | Laser tube: | Yongli Co2 Sealed Glass Laser Tube |
| Color: | Blue-white | Work Table: | Blade/Honeycomb table | Optional: | Up-down table/Rotary device/Red dot |
| Working volta: | AC110V/220V, 50-60HZ | Control system: | RD works | Transmission: | Belt transmission |
| Machine model | 6040 laser machine |
| Laser type | Sealed CO2 laser tube, wavelenght:10:64μm |
| Laser power | 40W/60W/80W/100W |
| Cooling mode | Circulating water cooling |
| Laser power control | 0-100% software control |
| Control system | DSP offline control system |
| Max. engraving speed | 60000mm/min |
| Max cutting speed | 50000mm/min |
| Repetition accuracy | ≤±0.01mm |
| Min. Letter | Chinese:1.5mm, English:1mm |
| Table size | 600*400mm |
| Working voltage | 110V/220V.50-60HZ |
| Working conditions | temperature:0-45℃，humidity:5%-95% |
| Control software language | English/Chinese |

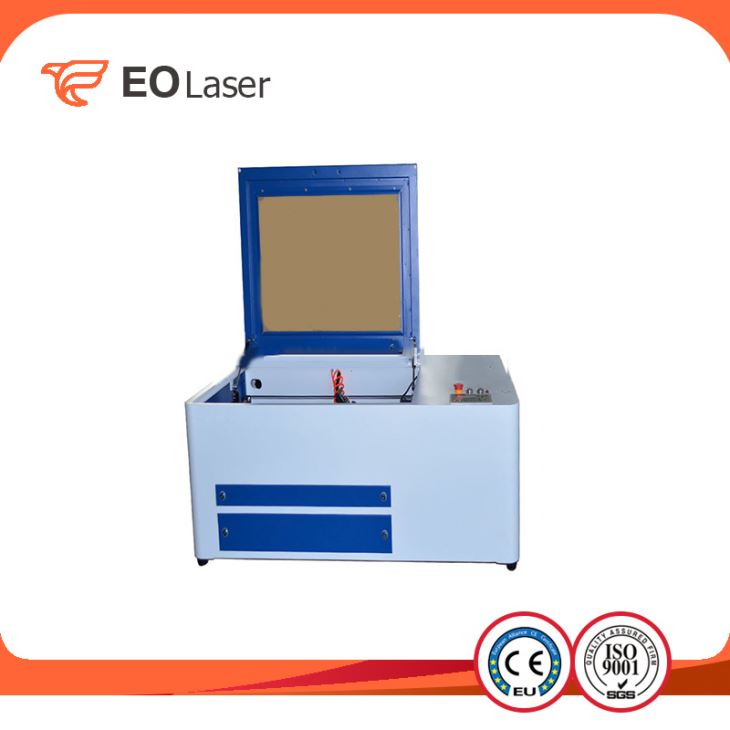

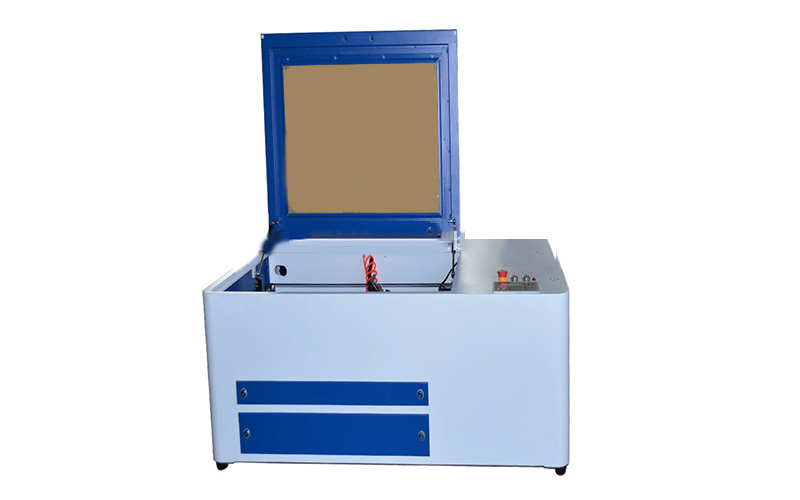

1.EO-6040 CO2 laser machine, able to engrave various non-metals, like paper, acrylic, double-color plate, marble, wood, MDF, plywood, textile, leather, glass, etc.
2.Widely applied in craft gifts, Chinese paper cutting, advertising signs, clothes, furniture and many other industries.
3.Fast engraving and cutting speed, high precision. Can be configured with lifting table, honeycomb table, rotary, etc.
4.Machine working size can be choose according to your needs.we have 600x400mm,900x600mm,1200x900mm,1300x900mm,1400x900mm,1600x900mm,1300x2500mm,and so on.
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
