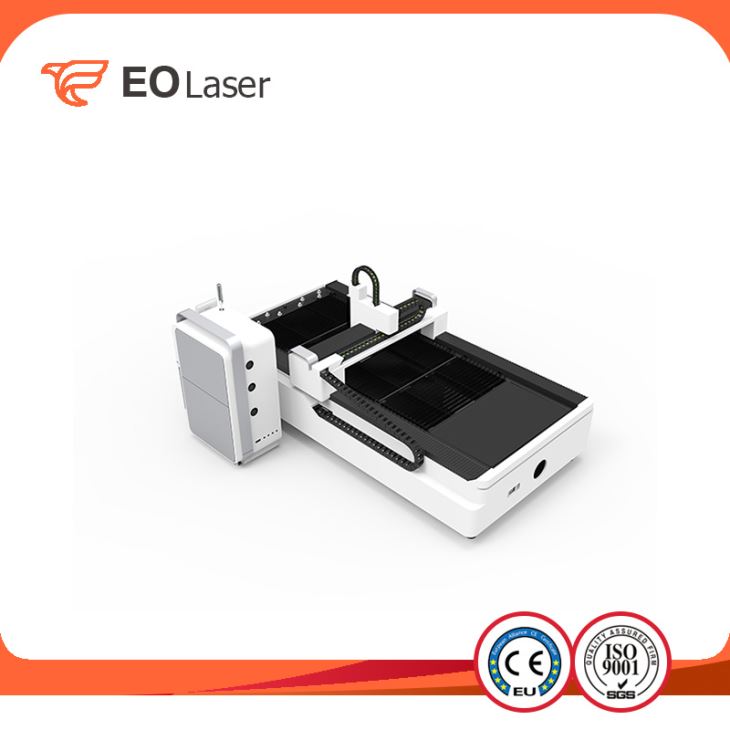

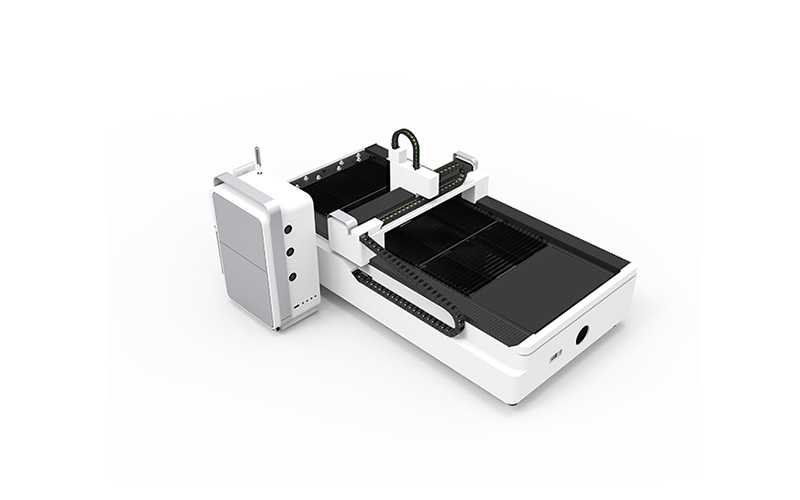

High Quality Fiber Laser Cutter

High Quality Fiber Laser Cutter

Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware.... Send Inquiry
Product Details



Quick Details
Condition:New

Place of

 Origin:

ChinaBrand Name:EO

Model

Number:

F3015Voltage:380V/50Hz/16A, 380V/50Hz/16ARated Power:1000W,2000W,2500W,3000W,4000W
Dimension(L*W*H):2.4*4.7*1.9mWeight:3.5 tonsCertification:CE,ISO,BV,SGS,FDA
Warranty:3 yearsAfter-sales Service Provided:Engineers available to service machinery overseasProduct name:High Quality Fiber Laser Cutting Machine

Max cutting

range:

3000*1500mm,6000*1500mmCutting thickness of material:≤20mmLaser Power:1000W, 2000W,2500W,3000W,4000W

Max Cutting

Speed:

35m/minMin line width:0.1nmDriving and transmission Way:Imported Servo Motor and Linear Guide Rail
Continuous Working Time:24HoursCooling way:water cooling






Free your hands, enjoy auto focus

(1)Auto-focus

Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.

(2)Free

Focal length is controlled by operating system. We don’t need to do manual regulation,which effectively avoids errors or faults caused by manual operation.

(3)Fast

It can automatically adjust the most appropriate focal points in working process, greatly improving cutting speed;

When replacing different materials or different thicknesses sheet, manual focus laser head needs to adjust focal length manually, very inefficient; auto focus laser head can read system storage parameters automatically, very efficient;

(4)Accuracy

Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.

(5)Durable

Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses.

Increasing collimation protective lens and focus protective lens, carefully protect key components.



3.Operating system display

Elegant appearance curve

The first one to use UI design in the world which lets display respond to processing table, making processing more intuitive. Elegant curves precisely fit machine body. Strong waterproof breathable system creates the best space, making operation more convenient. Diamond cutting process and HD plasma tempered glass make screen more exquisite and comfortable to use.


4.Cast aluminum crossbeam

Integral steel mold pressure casting, light, flexible and efficient

After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.


5.EO Por 2.0

6.Appearance design

Aesthetics was introduced to industrial ID, perfect combination of technology and aesthetics

Powerful hockey stick shaped decorations adopt black acrylic with thickness of 30mm, ice film drawbench silver design of the same car and alpine white sheet metal, the international design style is accepted by global consumer groups.


With precise cast iron bed, the whole machine is as firm as a rock. The most reasonable golden ratio and the greatest parts layout make the whole machine more stable, comfortable, accurate, and technological.

PC head capsule design through vacuum hot deformation processing makes Z axis so light.

Crossbeam adopts ribbon design elements, giving crossbeam limitless velocity space.


NO.2 Machine Application Field

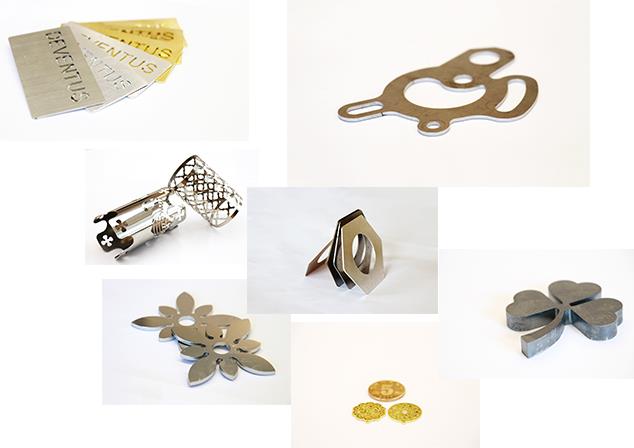

1.Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

2.Application Industries: EO Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.




ModelF3015F6015Option
Max Cutting Range3000*1500mm6000*1500mm

According to

Demands

Machine Size(L*W*H)2.4*4.7*1.9m2.4*5.7*1.9m
Accessory Parts(L*W*H)

Chitler 1*1*1.2m Control Box 1*0.8*1.8m

 Fiber Module 0.5*0.6*0.14m

Laser MediumSingle Core Junction Semiconductor Module
Max Cutting Speed35m/min
Cooling WayWater Cooling
Laser Power1000W/2000W/2500W/3000W/4000W
Min Line Width0.1mm
Cutting Depth0.2-6mm
Driving and Transmission WayImported Servo Motor and Linear Guide Rail
Power Requirements380V/50Hz/16A
Continuous Working Time24Hours
Related Weight

Machine Body 2732kg     Trolley 116kg

Computer Cabinet 56kg     Servo Cabinet 75kg

Transformer 77kg     Chiller 93kg     Fiber Module 50kg


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
