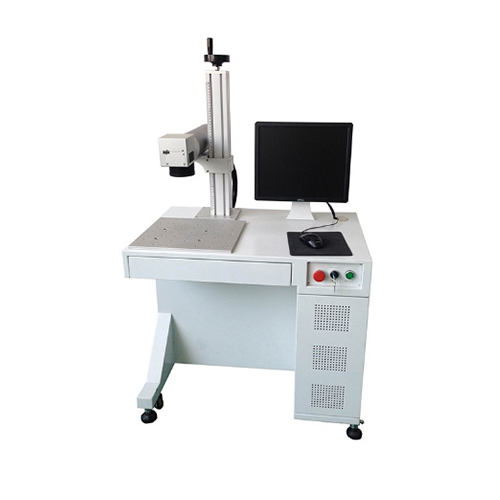

Precision Dots Laser Engraving and Etching Machine for Metal

Product Name: Precision Dots Laser Engraving And Etching Machine For Metal
Classification: Metal Laser Etching Machine
Application: serial number, bar code, data matrix, etc
Place Of Origin: China
... Send InquiryChat Now
Product Details

Product Parameters


Model

 LP-FLM20,

Laser Power

 20W,

Wavelength

1064nm

Fiber Laser Source

IPG, SPI, Raycus, Max. JPT (optional); Lifetime: 100, 000 hours

Marking Area

Max. 110mmx110mm; Max. 200mmx200mm; Max. 300mmx300mm (optional)

Min. Line Width

0.03mm

Min. Character Size

≤0.5mm

Marking Speed

≤16000mm/s

Pulse Width

≤60us

Repetition Positioning Accuracy

10urad

Positioning Way

Red Light

Power Supply

Single Phase AC 220V, 50/60HZ



Product Application



Product Type

Fiber Laser Marking Machine

Marking Material

Both metals and some non-metals
Metals: carbonsteel/mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal andalloy steel(gold,silver,titanium, etc.); specialsurface treatment(aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy)
Non-metals: plastics, rubber, resin, carton box, etc.

Applied Industries

electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts,hardware, tools, building materials, PVC tubes, etc.

Marking Content

logo, character, serial number, bar code, data matrix



Main Parts

Fiber Laser Source, Scan Head, F-theta Lens, Marking Software, Computer

Core Parts&Brand& Lifetime

Core Parts: Fiber Laser Source
Brand: IPG, SPI, Raycus, Max, JPT (optional)
Lifetime: 100, 000 hours

Cooling Mode

Air Cooling

Continuous Working Hours

22 hours

Marking Software

English Version
Graphic Format Supported: DXF, PLT, AI, BMP, JPG, etc.
Easy Operation
With Powerful Function

Certification

CE, FDA



Product Features

1.jpg Permanent marking

1.jpg Free of maintenance, without consumables, cost effective

1.jpg Long service life(100000 hours)

1.jpg English marking software with powerful functions, easy operation


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Precision Dots Laser Engraving And Etching Machine For Metal, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
