Desktop Metal Laser Engraving Machine

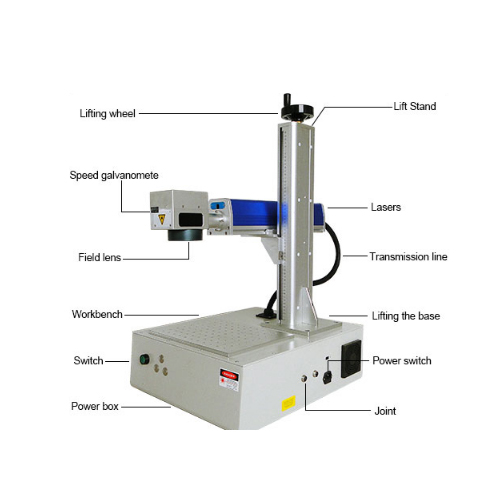

Product Name: Desktop Metal Laser Engraving Machine
Classification: Metal Laser Engraving Machine
Application: metal, etc
Place Of Origin: China
...

Send Inquiry
Product Details

Product Parameters


Type

Laser Marking Machines

Model Number

PL200

Table size

320*200mm

Weight

30KG

Material

Aluminum

Laser wavelength

1060nm

Laser power

10W or 20W or 30W optional

Laser Type

pulsed or continuous

Marking depth

≤0. 5mm as the material may

Marking line speed

≤7000mm / s

Minimum characters

0.15mm

The minimum line width

0.012mm

Repeatability

±0.002

Repeatability

Standard 100mmX100mm

Operating Life

laser Run> 100,000 hours

Dimensions

450 mm X 540 mm X 800 mm Weight 30 kg

Work table

320 mm X 200 mm bearing 30 kg

Lifting heigh

lifting 150

Cooling system

Air cooling

Operating System

WinXP / Win7

Graphic Converter

CAD, CorelDRAW, CAXA

Environment

-20 ° C-45 ° C, relative humidity 80%


Product Features

1.jpg Printable numbers, characters, letters, graphics support automatic coding, serial number, batch number, date, barcodes,two dimensional codes automatically jump number.

1.jpg Our program has a variety of power fiber laser, you can get different laser effects ( metals, plastics, ceramics, etc.) on most materials. Laser Applications.

1.jpg Support PLT, PCX, DXF, BMP and other documents, directly using SHX, TTF font.

1.jpg Support barcode font.

1.jpg Scalable Software flight marks.

1.jpg You may need to set the automatic serial number, date, time, according to the production.

1.jpg You can read text data directly via the serial port.

1.jpg Powerful fill feature, filling the annular support.

1.jpg Open multiple languages, can easily support world languages.

1.jpg Automatic segmentation of text function, it can adapt to the complex processing conditions.

1.jpg Manage your marking process, from the shop floor to the automated production line

1.jpg Production mode enables you to easily complete multiple tasks: Repeat the inspection, historical documents, the operator/ manager landed from existing systems ( measurement equipment) or get data reading gun ...

1.jpg Red Preview, you can preview feature red display the contents printed in advance on the workpiece.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Desktop Metal Laser Engraving Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
