Automatic Mini Metal Laser Engraving Machine

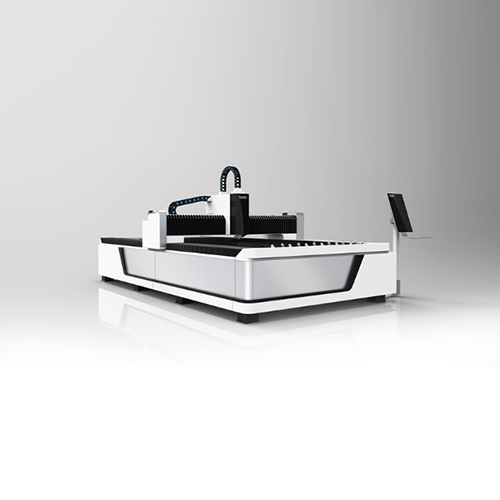

Product Name: Automatic Mini Metal Laser Engraving Machine
Classification: Metal Laser Engraving Machine
Application: metal, etc
Place Of Origin: China
... Send InquiryChat Now
Product Details

With the 1500mm x3000mm working area, the Desktop Metal Laser Engraving Machine is the basic and the most economic model for F1530. Widely used in the processing of advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc..


Product Parameters


Laser head

Switzerland RAYTOOLS; Model: BT240

Laser generator

500w/700w/800w/1000w/1500w/2000w/2500w/3000w/ Maxphotonics IPG Raycus laser generator

X,Y axis working size

1500*3000mm

Z axis height

120mm auto moving height ,CBS100 Height regulator

Precision

Positioning accuracy 0.03mm , reposition accuracy 0.02mm

Speed

Max moving speed 150m/min , max cutting 35m/min

Control system

Cypcut control system

Working table

Sawtooth blade working table

Drive system

France Schneider servo motor; Y (each) axis 2000W; X axis 1000W; Z axis 400W

Transmission

Taiwan silver HIWIN square rail, Taiwan YYC gear rack

Guide rail

All axis Original Taiwan Hiwin square guide rail ,X (25mm),Y (35mm),Z (20mm)

Electric components

French Schneider electrical components

Pneumatic components

Japan SMC pneumatic components

Bearing

Japan NSK bearing

Machine size+ weight

4550*2300*2000mm , After package ,weight 3000kg

Maximum acceleration

1.2G

Other parts

auto lubrication system + pressure gage + laser protective goggles + WIFI Control+ control panel and etc.


Product Features

1.jpg 500w/700w/800w/1000w/1500w/2000w/2500w/3000w/ Maxphotonics IPG Raycus laser generator

1.jpg Working area(X*Y*Z): 1500mm*3000mm*120mm

1.jpg Laser head: Switzerland RAYTOOLS laser head

1.jpg Control: Cypcut control system

1.jpg Drive system : France Schneider servo motor

1.jpg Reducer: France MOTOREDUCER reducer

1.jpg Transmission: Taiwan silver HIWIN square rail,Taiwan YYC gear rack

1.jpg Components: France Schneider electronic components

1.jpg Lubrication: Guide rail automatic lubrication system

1.jpg Switzerland design

1.jpg Wifi control and Wifi remote diagnosis system


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Automatic Mini Metal Laser Engraving Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
