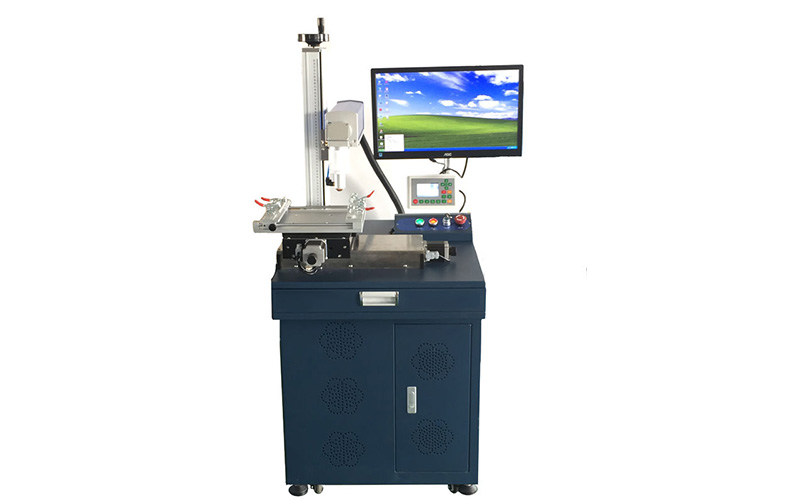

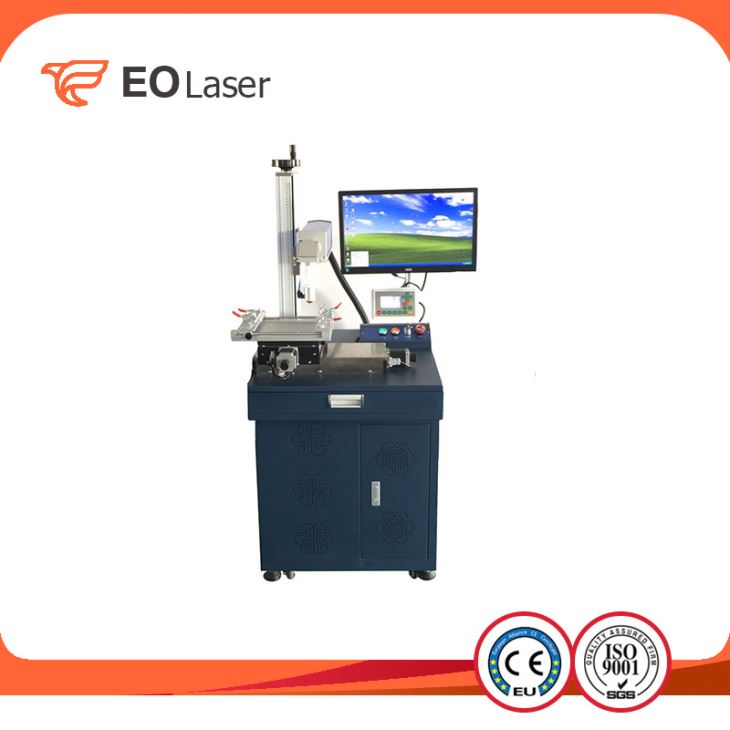

Jewelry Fiber Laser Engraving Machine

Jewelry Fiber Laser Engraving Machine

Fiber laser marking machine is a new generation laser marking system made with newest laser technique in the world....

Send Inquiry
Product Details


Product Details

Place of Origin:

China

Brand Name:

Raycus Laser Source

Certification:

CE

Model Number:

LB-MF20



Detailed Product Description
Laser Type:Fiber LaserLaser Source:Chinese Raycus Laser
Laser Power:20WLaser Wavelength:1064nm
Engraving Area:110x110mmEngraving Speed:≤7000mm/s
Cooling System:Air-coolingPower Consumption:0.8KW
Power Supply:220V / 50HzMaterials:Metal Plastic ABS PVC






Technical Parameters
Output Power10w / 20w
Wavelength1064nm
Beam qualityM2 < 2
Cooling systemAir cooling
Marking scope110mm×110mm
Repeat accuracy±0.002mm
Marking DepthMax. 1mm ( Depending on materials)
Linear speed≤7000mm/s
Min. line width0.01mm
Min. character size0.2mm
Input power<1.2 KW
Electrical source:220V/50Hz/5A
Dimensions (L*W*H)610x810x1320mm
PackagesSeaworthy plywood case
Weight66kgs


Standard Accessories (Fiber Laser Marking Machine)

(1) A set of 20W / 30W Fiber Laser Device (Raycus) or IPG Fiber Laser

(2) A set of Scanning System (Galvotech)

(3) A set of high-speed Scan Lens (Singapore Ronar-Smith)

(4) 110mm x110mm Fiber Focus Lens (Singapore Ronar-Smith)

(5) A set of Laser Beam Expanders (Singapore Ronar-Smith)

(6) Motion control card

(7) A set of marking control system

(8) A set of marking software

(9) An industrial computer

(10) A red laser pointer

(11) A pedal switch

(12) Working table(300mmX300mm)

(13) Laser power supply

(14)Operation Manual Training Video





Machine Features



Excellent beam quality: This series of fiber laser marking machines are much better than the traditional marking machine, condensation diameter is less than 20um, divergence angle is 1/4 of the semiconductor pumping source laser, used in accurate marking

Low use-cost : high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser

Maintenance-free Operation : There is no need of any maintenance for laser, or to adjust /clean the lens

Fast marking speed, 2-3 times faster than the traditional marking machine

Long working life: using fiber laser as pumping source, the working hours can reach as long as 100,000 hours

Rotary worktable system is optional, thus, accomplish marking on cambered surface.

Air-cooling, no water chiller like YAG laser marker, easy transportation, also have the portable type.

This machine cannot be affected by bad environment and the temperature change.

Small size and light weight





Application Fields



A. Materials: metal and various nonmetal materials, high hardness alloy steel, oxide, electroplating and vacuum plating, epoxy resin, printing ink, ABS and other engineering plastic.



B. Industry: plastic keypad, components of digital products, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses, clocks and watches, vehicle and motor accessories, sanitary ware, communication products, medical devices, integrated circuit(IC), building material, pipe materials, more suitable for the marks of high demand of accuracy, speed and depth.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
