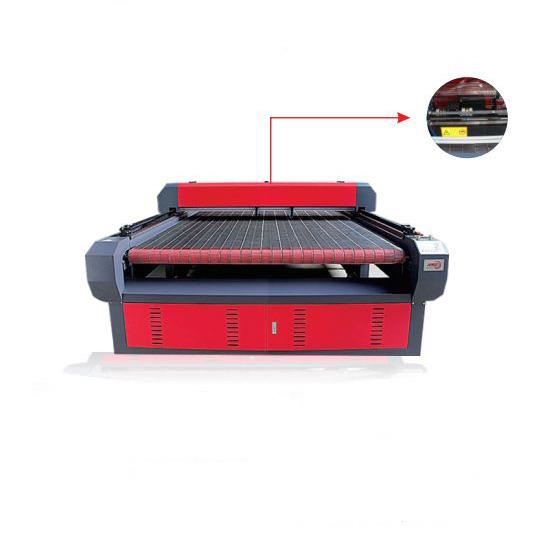

Automatic Feed Laser Cutting Machine

The moving system adopts Taiwan Hiwin linear guide and precision gear, matched up with the advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy....

Send Inquiry
Product Details


Model
EOJM-1625M-T
EOJM-1630M-TEOJM-1825M-TEOJM-1830M-TEOJM-1835M-T
Laser typeDomestic sealed off CO2 laser tube
Cutting area1600mm×2500mm1600mm×3000mm1800mm×2500mm1800mm×3000mm1800mm×3500mm
Laser power100W(Optional 130W)
CoolingIndustrials constant temperature chiller
Moving systemServo motor(Optional stepping motor)
Engraving speed0-64000mm/min
Max cutting speed0-36000mm/min
Cutting energy controllingCan be fine-tuned
Cutting speed controllingCan be fine-tuned
Dimension(mm)2250×3500×12502250×4000×12502450×3500×12502450×4000×12502450×4500×1250
Environmental requirementsTemperature 15℃     humidity 30%-80%
Power supply220V/50-60HZ, 10Amax

Two sets of high power laser generating system, crawler working platform and full automatic feeding system are selected to ensure automatic continuous processing. Intelligent typesetting software is equipped at the same time. According to the graphics designed in the computer, the material can be processed in the batches at the sane time, and the cutting and punching of full width can be carried out separately, Also the machine adopt the double-head intermovable electric, which can conveniently set the distance between two laser heads according to the width of the cut fabric, that greatly saves the fabric.


Model
EOJM-1610T-ATEOJM-1612T-ATEOJM-1810T-ATEOJM-1812T-ATEOJM-1814T-AT
Laser typeDomestic sealed off CO2 laser tube
Cutting area1600mm×1000mm×21600mm×1200mm×21800mm×1000mm×21800mm×1200mm×21800mm×1400mm×2
Laser power80W(optional 100W 120W 140W 150W)
CoolingWater chiller
Moving systemStepping motor
Engraving speed0-64000mm/min
Max cutting speed0-36000mm/min
Cutting energy controllingCan be fine-tuned
Cutting speed controllingCan be fine-tuned
Dimension(mm)2250×1950×12502250×2150×12502450×1950×12502450×2150×12502450×2350×1250
Environmental requirementsTemperature 15℃     humidity 30%-80%
Power supply220V/50-60HZ, 10Amax

True integrated feeding system, non-pulling system, suitable for multi-material automatic feeding: knitted material, cloth, leather, foam(multi-layer feeding), software can automatically calculate the length according to the typsetting, can be done in the previous version and the next version is seamlessly combined to help save material.

Compared with the common arry verision, this typesetting function is more reasonable in layout, simpler in operation, and more conducive to material saving.

It can do odd typesetting, tirm cutting (saving mateial typesetting),  split feeding cuttingt (infinite long feeding).



Features

Multi-material automatic feeding device;

CCD camera positioning vtrademark cutting(optional);

Single and double heads are free to interact and integrate functions into one, which is more intelligent.


Applicable industry

Applicable for users who have high precision requirements for engraving effects and cutting effects in industries such as clothing, leather, cloth toys, computer embroidery cutting, packaging and printing, and paper products.


Applicable materials

Non-mertallic materials such as rolled fabrics, trademarks, embroidered sheels, plush toys, denim fabrics, leather, fabrics, etc.


截图20190628154919
