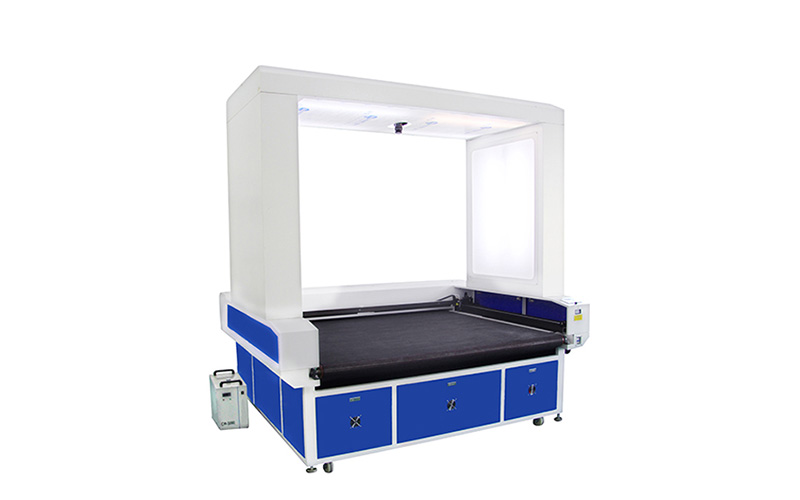

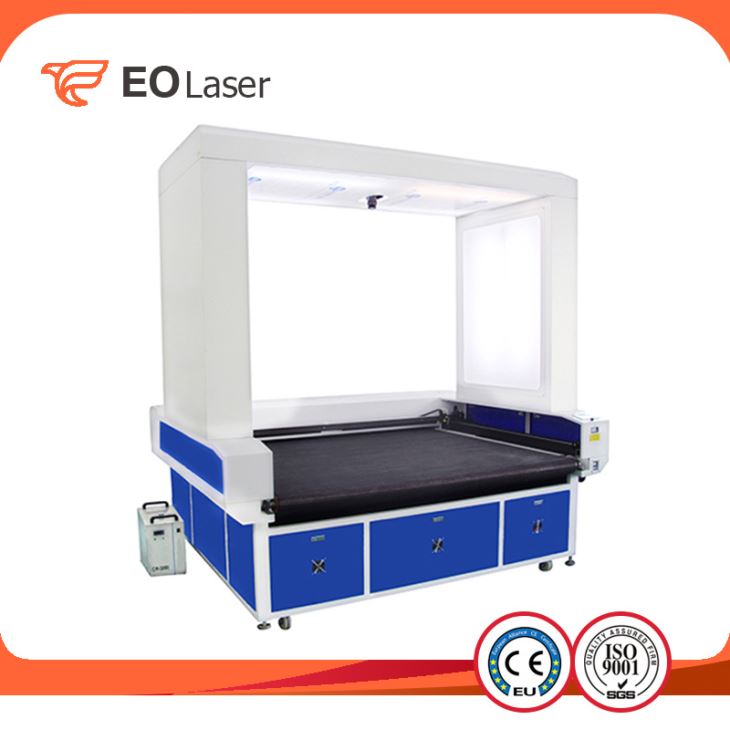

CCD Camera Automatic Fabric Laser Cutting Engraving Machine

Laser high ccd camera automatic fabric laser cutting engraving machine will be packed by wooden cases...

Send Inquiry
Product Details





Quick Details
Application:Laser CuttingCondition:NewLaser Type:CO2
Applicable Material:Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, WoodCutting Thickness:0-10mmCutting Area:1600*1000mm
Cutting Speed:0-40000mm/minCNC or Not:YesCooling Mode:Water Cooling
Control Software:professional laser intelligent identification systemGraphic Format Supported:AI, BMP, DST, DWG, DXF, LAS, PLTPlace of Origin:China (Mainland)
Brand Name:EOModel Number:CW-1610HFSCertification:CCC, CE, ISO
After-sales Service Provided:Engineers available to service machinery overseasLaser power:80-130W optionalProduct name:ccd camera laser cutting machine
Keyword:ccd camera laser cutting machineLaser tube:Co2 Glass Laser TubeName:automatic fabric cutting machine price
Function:Cutting Nonmetal MaterialsType:Water Cooling CO2 Laser Cutting MachinesModel:CW-1610HFS
Color:Blue-whiteWorking area:1600mmX1000mm


Model
EOJM-64OCCDEOJM-960CCD
EOJM-1080CCDEOJM-1280CCDEOJM-1390CCDEOJM-1480CCD
Laser  typeDomestic sealed off CO2 laser tube
Cutting area600mm×400mm900mm×600mm1000mm×800mm1200mm×800mm1300mm×900mm1500mm×800mm
Laser power80W(optional 100W 120W 130W 150W)
CoolingWater chiller
Moving systemStepping motor
Engraving speed0-64000mm/min
Max cutting speed0-36000mm/min
Cutting energy controllingCan be fine-tuned
Cutting speed controllingCan be fine-tuned
Dimension(mm)1210×840×1130
1510×1135×11301610×1350×11301810×1350×11301910×1450×11302010×1350×1130
Environmental requirements
Temperature 15℃      humidity 30%-80%
Power supply220V/50-60HZ, 10Amax





The CCD series adopts the leading camera visual recognition system to realize high-precision camera positioning and cutting function. It is developed for batch processing of various non-metal trademarks to replace the inadequacies of traditional manual positioning and cutting and to meet accurate and faster production needs. At present, this series of models has been widely used in the market, and by continuously collecting customer suggestions, the whole machine is continuously improved, and today, the market will be repositioned with more perfect functions.








Packaging & Delivery

Packaging Details

EO Laser high ccd camera automatic fabric laser cutting engraving machine will be packed by wooden cases

Delivery Time

With 5-7 days after payment





Product Application

EO Laser high ccd camera co2 laser cutting engraving machine for sale.

Laser format printing fabrics, automaticly identify of the special and complex design cutting, accurate cutting textile such as embroidery and trade mark and etc. Specially used in parts field, printing field.





ModelCW-1610 HFS
Working area1600*1000mm
Laser power80-130W optional
Laser typeCO2 glass tube
LensA full set laser transmission lens imported from USA
Cooling typeWater cooling system
Carving scanning speed 0-6000mm/min
Cutting speed0-4000mm/min
Laser energy control0-100% by software settings
Maximum scanning accuracyHigh resolution Canon SLR camera
Machine weight6000KG



Main Features

1) The camera can identify the whole work table design and cutting.

2) It can auto-generated the graphics according to the pattern on the fabric,automatic cutting no need drawing.

3) The machine can be attached automatic feeding device, to improve cutting efficiency.

4)High permeability side and top protective cover and constant light system make the cutting area gets good lighting and indentification and cutting.



Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
