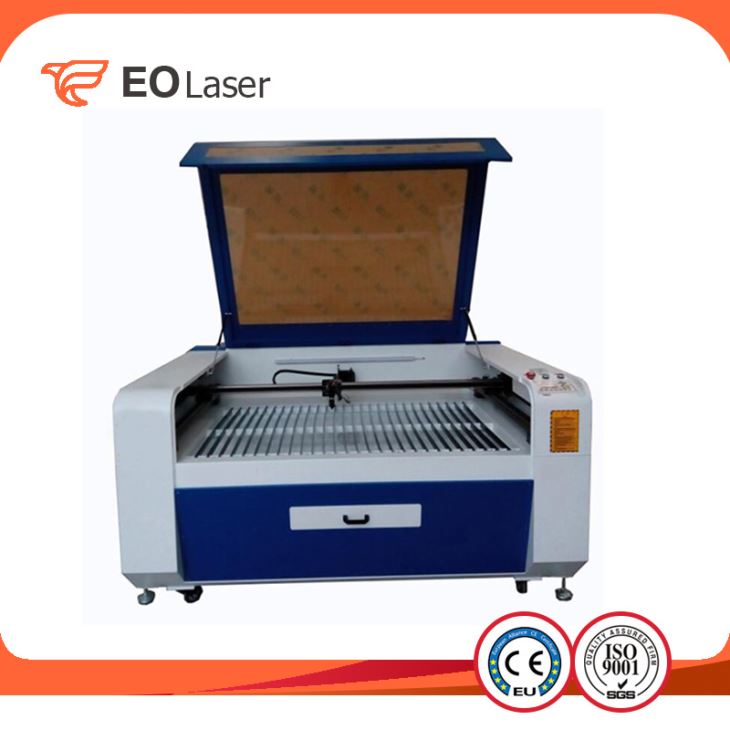

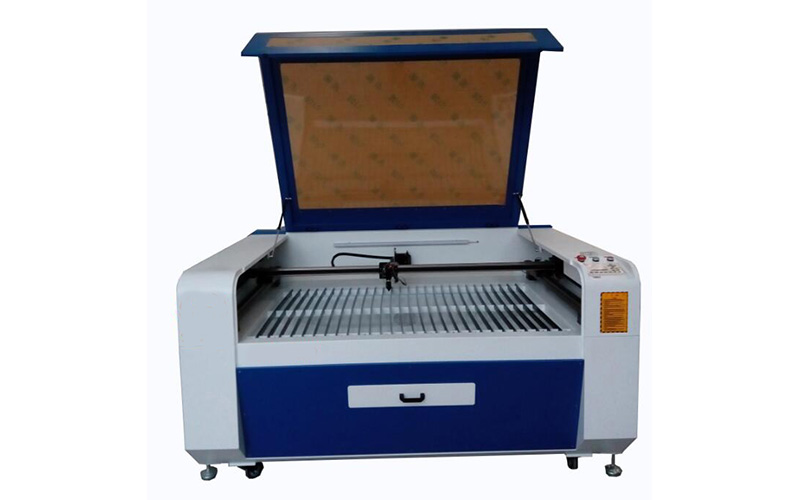

GW-1490 Wood Acrylic Laser Engraving Cutting Machine

GW-1490 Wood Acrylic Laser Engraving Cutting Machine

Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc....

Send Inquiry
Product Details



Parameters:
ModelGW-1490
Engraving and Cutting Area1400*900mm
Tube typeCO2 sealed glass tube
Laser wave10.6um
Laser PowerRECI W6 (130--160W)
Cooling Pure water cycle (water chiller)CW5000
Engraving Speed0-60,000mm/min
Cutting Speed0-30,000mm/min
Reposition Accuracy±0.01mm
Minimum Character SizeEnglish:1mm ; Arabic numbers:1mm
Resolution1,000--10,000 dpi
File output mode2.0 USB interface
Machine Power<3,700W
Support Format and SoftwarePLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 5.3
Working Environment Temperature0-45°C
Drive systemLeadshine stepper motor 573S-15L + 3M blet
Control systemRuida 6442G DSP offline control system
Transmission wayPMI Linear Rail
Exhaust smoke system550W exhaust fan
Working Voltage220V,50HZ/60HZ
N.W.1200KG
G.W.1300KG
Warranty time3 years for machine, 10 months for tube
Package Plywoodcase with steel tube
Packing size2360*2260*1300mm
Delivery time3---7 working days after received the deposit




Features:

1. High precision: Adopt Leadshine 573S15-L stepper motor with PMI MSA-20R Linear Rail transmission greatly improve the response speed & cutting precision of equipment, extend the time of using.

2. Constant light system :The machine uses the constant light,achieving high precision cutting of the whole area.

3. High precision and stability: with precision Fulo belt & PMI Linear Rail transmission mechanism and optimized the Ruida RDC 6442G system control, it can meet the precision parts processing ,also can work for long hours.

4. Adopt RECI W6 sealed CO2 laser tube, main consumable items are electric energy, water-cooling,auxiliary gas and laser light.

5. Sample structure,easy operation ,stable laser device and low maintenance cost.



Applicable Industry:

1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell

2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.

3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.

4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.

5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.

6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.

7.Product Identification Industry: Security marking products, etc.



Applicable Material:

Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf , Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.
