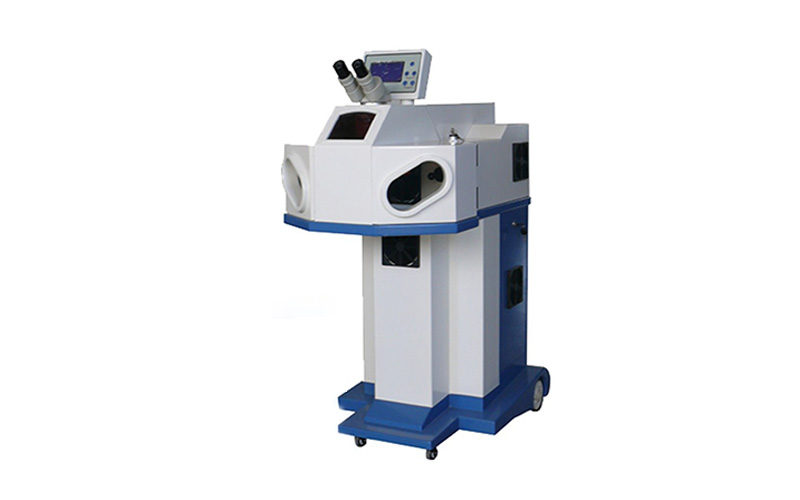

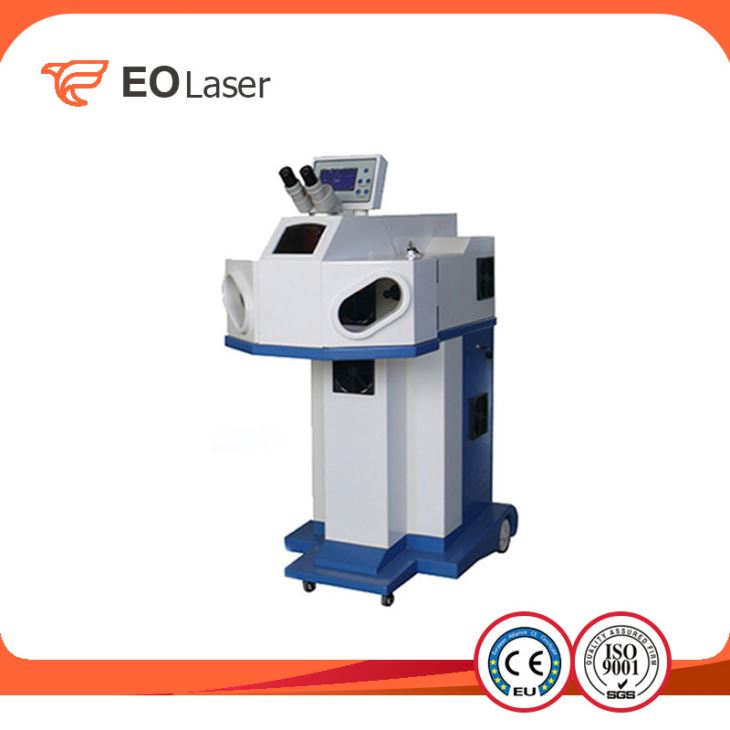

Stainless Steel Metal Jewelry Laser Welding Machine

Stainless Steel Metal Jewelry Laser Welding Machine

Jewelry laser welding machine is an important and basic aspect of laser welding technology. When laser radiation heats the surface of work-piece, the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of this unique feature, it is widely used in processing of precious jewelry or welding of precision parts.... Send Inquiry
Product Details



Quick Details
Condition:New
Place of Origin:China (Mainland)
Brand Name:EO
Model Number:LX-D1 laser welding machine
Single Pulse Energy:40J,60J,80J
Pulse Width:≤20ms
Wavelength:1064nm
Focal Spot Diameter:0.1-3.0mm
Max. Output Power:200W laser welding machine
Dimensions:920mm*560mm*1220mm
Usage:laser welding machine for jewelry
Power(W):100W/150W/200W/400W laser welding machine
Certification:CE, FDA
Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas
Product:100W 150W 200W 400W laser welding machine
Product name:laser welding machine
Power Supply:220V±10% /50Hz
Cooling System:Water cooling
Power Consumption:4KW
Net Weight:130kg(welder)+50kg(chiller)
Package:Durable wooden case(customized package accepted)
OEM/ODM:Support
Factory:Have own factory in Wuhan
Processing material:Gold/silver/titanium/platinum jewe





Instrument introduction



Jewelry laser welding machine is an important and basic aspect of laser welding technology. When laser radiation heats the surface of work-piece, the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of this unique feature, it is widely used in processing of precious jewelry or welding of precision parts.



Jewelry laser welding machine features



1. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient.



2. Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant with 8-10 years service life. The life of xenon lamp is more than 8 million times.



3. Most advanced light shielding system eliminates the irritation to eyes by laser during working.



4. Able to work for 24 hours continuously; stable performance; free of maintenance in 10,000 hours.



5. Human-based design accords with ergonomics, avoiding fatigue after long time working.



6. High speed, high efficiency, deep enough, slightly deformation, small heat effect area, high welding quality, pollution free, environmental friendly.





Application





It is specially used for spot welding, perforating, repairing, retipping and resizing of gold/silver/titanium/platinum jewelries,stone caging and gap-bridging of small accessories. It is also widely used in aviation, aerospace, sports products, eyewear frames, medical instruments, titanium alloy denture, instruments, electronics, machinery, automobile, etc.


Technical parameters


Model No.LX-D1-100W laser welding machine LX-D1-150W laser welding machine LX-D1-200W laser welding machine
Laser SourceNd:YAG
Laser Wavelength1064nm
Rated Power100W150W200W
Laser Energy40J60J80J
Pulse Width≤20ms
Pulse Frequency≤50Hz
Beam Diameter0.1-3.0mm
Power Supply220V±10% /50Hz
Observing Systemmicroscope
Chamber IlluminationLED lamps
Parameters Memorization10 groups
Protection Alertflow alert
Language DisplayChinese/English
Shield Gas SupplyOne line
Cooling Systemwater cooling
Power Consumption4KW5KW6KW
Welding Chamber Dimensions300mm*450mm*150mm(L*W*H)
Machine Dimensions920mm*560mm*1220mm (L*W*H)
Running Environment5℃-30℃, 5%-75% humidity
Net Weight130kg(welder)+50kg(chiller)


Our Service

Spot delivery, including delivering small batches of goods Provide wide-range and complete materials series products Cutting plates, including complex shapes of materials and special processing and disposal Cutting bars and strips Our application technology expert provide the best material and recommendation One-stop service.
