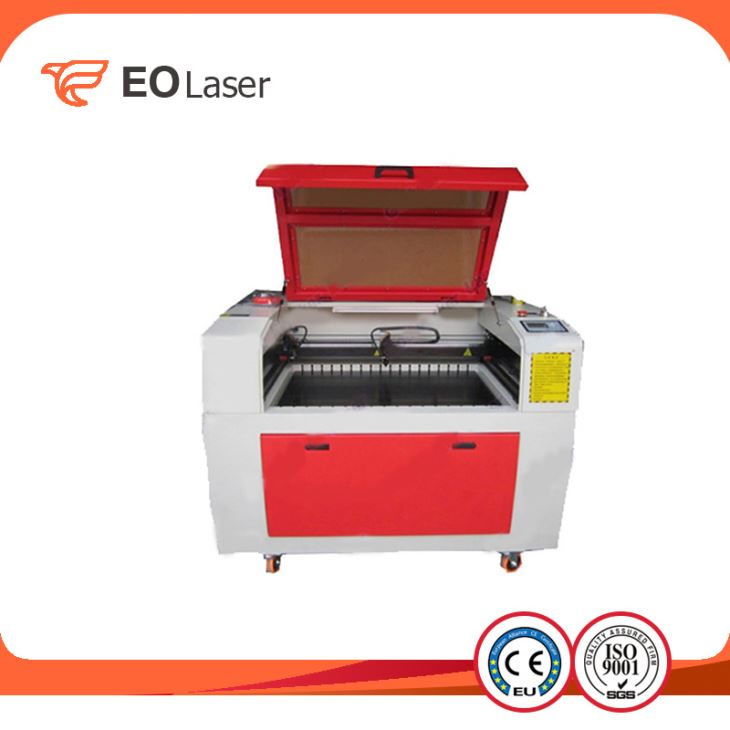

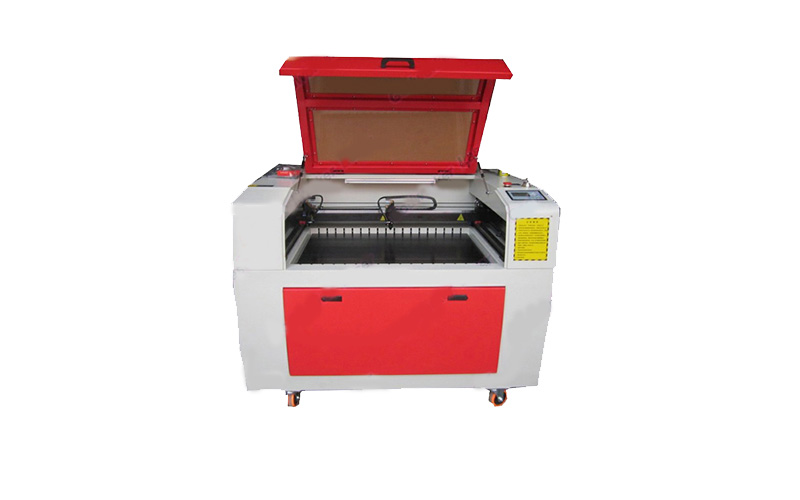

GW-6040 Small Co2 Laser Engraving Machin

GW-6040 Small Co2 Laser Engraving Machin

GW-6040 laser engraving and cutting machine is used specially for the nonmetal art crafts, gifts and the engraving of bamboo products. The mechanical structure is strong and stable, making the machine to run at high precision. The electrical ability is stable, the engraving speed is high, and the precision is high.... Send Inquiry
Product Details



Specifications:
Name:GW-6040 small Co2 laser engraving machine
Processing area600mm*400mm (2feet*1.3feet)
Laser power50w
Laser type:Sealed Co2 glass laser tube
Cooling mode:Water cooling and protection system
Resetting positioning accuracy:±0.01mm
Compatible Software:Laser cut 5.3, CorelDraw  AutoCAD  Photoshop
Whole machine size:1050mm*800mm*970mm
Engraving speed1-60000mm/min
Cutting speed1-20000mm/min
Cutting thickness0-15mm acrylic (others determined by materials)
Resolution ratio≤0.0125mm
Position system:Red dot
Interface:USB
Minimum shaping characterletter 0.8mm, Chinese 2mm
Support graphic formatDST, PLT, BMP, DXF
Gross power1000W
Driving mode:DC0.8A 24V stepper motor
Cooling mode:Circulation water cooling
Working voltage:AC 110 - 220V±10%, 50 - 60Hz or depend on customer
Operating temperature0-45C
Operating humidity:5-95%
Driving systemstepper
Driving systemrotary attachment
Packing:Plywood case
Guarantee time:1 year of whole machine
Option:Rotary attachment for column materials
Operation:Video to tell customer how to operate the machine
Net weight:200KGS before package, 260KGS after package




Applicable materials:

Non-metal materials such as acrylic, double color board, Plexiglas,

Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.


Applicable industries:

Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo

and wooden product, garment and leather, embroidery, decoration and upholster industry.

Guarantee and after-sale service

1. 12 months for machine,long life span of laser tube:3000-5000 hours.

2. 24 hours technical support by e-mail, calling or door-to-door service

3 .English software, user manual and detailed Videos CD

4.International quality certificate:CE,FDA,SGS,ISO9001:2008

5. professional laser machine supplier with 5 years experiences in China
