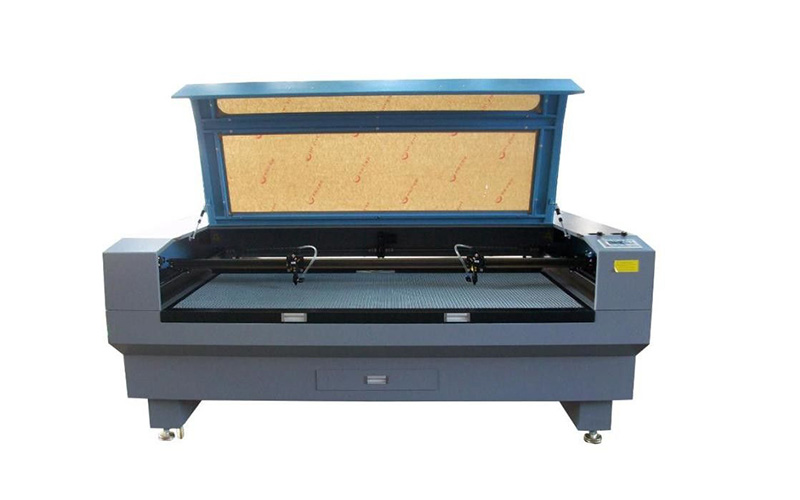

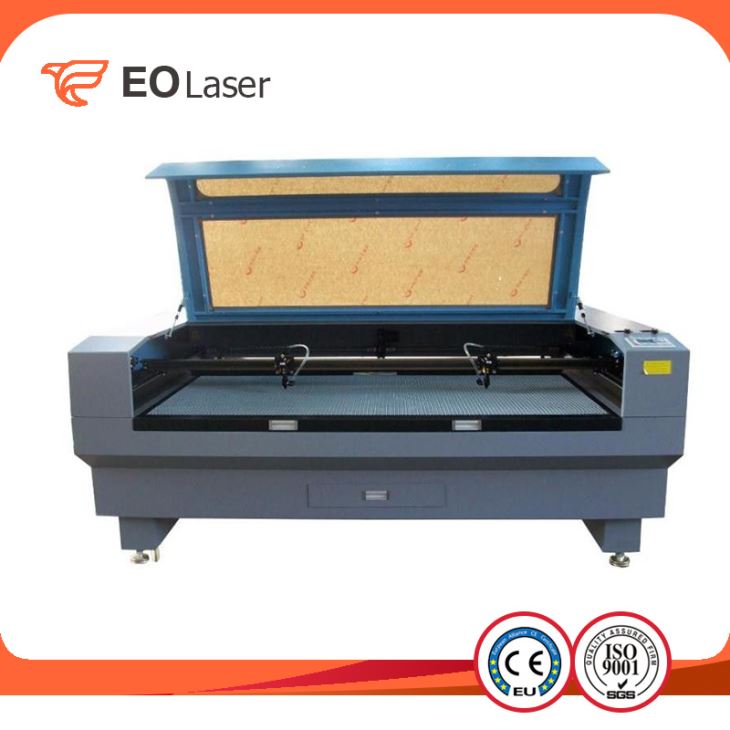

CO2 Laser Cutting Machine High Precision

CO2 Laser Cutting Machine High Precision

LB-CE Series laser cutting machine are the high-tech product of using the CO2 laser as energy power, and integrating technologies of optics and mechatronics. It is combined organically by the stepping motor driving system, the mechanical system of synchronous belt, wheel and straight axis, and the new technology of DSP digital control and USB data transmission.... Send Inquiry
Product Details



Product Details
Place of Origin:China
Brand Name:Reci Laser source
Certification:CE
Model Number:LB-CE



Detailed Product Description
Application:Laser CuttingLaser Type:CO2, CO2
Applicable Material:Acrylic, Leather, MDF, PaperCutting Thickness:Adjustable
Cutting Area:1300*900mmPower:100W



Laser cutting is using the energy released from the workpiece when irradiated by laser beam, to make the workpiece melt and evaporate, so as to cut and engrave. Laser cutting is of high-rate precision and speed, and is not limited by patterns. The automatic composing can save materials largely, and the incision is very smooth, and also the processing cost is much lower. With those qualities, the laser cutting machine will replace the traditional cutting Equipment.




Technical Parameters
TypeLB-CE6040LB-CE9060LB-CE1390LB-CE1610LB-CE1810
Laser Power60W/80W60W/80W80W/100W80W/100W80W/100W
Working area600x400mm900x600mm1300x900mm1600x1000mm1800x1000mm
Laser typeCO2 Sealed Glass tube laser
Max.curve movement speed50000mm/min Stepping motor
Cutting speed0-40000mm/min Stepping motor
Engraving speed0-50000mm/min
Laser energy control1-100% software setting
Min. CharacterChinese character 2.0x2.0mm, English 1.0x1.0mm
Repeated precision±0.001mm
Max. scanning accuracy2500 DPI
Power supplyAC220V/50Hz

Cooling

system

Water-cooling



Technical Advantages



a . Adopted the off-line motion control system which need not be connected to PC operation. Use USB data import, can reserve many processing documents.

b . Strong and stable mechanical structure and digital control.

c . Imported the American focusing mirror and silicon bottom gilded mirror with thin light spot and cutting force.

d . Equipped with professional industrial cooling water system, so the continuous work performance is very stable .

e . Support AI, BMP, PLT, DXF, DST (tajima embroidery software) image data format import.

f . Support TAJIMA embroidery software (TAJIMA), CORELDRAW, PHOTOSHOP, AUTOCAD, all kinds of clothing CAD software.

g . Equipment can choose servo drive and imported linear guide, enhance stability, improve accuracy, increase the work efficiency.

h . Can adopt double-head laser cutting, with big processing dimension and high processing efficiency.



Application Fields for Laser Engraving And Cutting Machine



Widely used in shoes material, leather clothing,trademark processing, embroidery, advertisement decoration, wooden processing, laser die cutting, packaging and printing, decoration industry, hot stamping template, craft gift field, electronic industry, model industry(architectural model,aviation and navigation models,wooden toys) etc.



Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
