metal and all kinds of nonmetal materials, high hardness alloy steel, oxide, electroplating vacuum plating, epoxy resin, printing ink, ABS, and other engineering plastic....
Send Inquiry| Model | EOYLP-F10/YLP-F20/YLP-F30 | EOYLP-F10P/YLP-F20P/YLP-F30P |
| Laser type | IPG laser tube(1064 um) | |
| Cooling | air cooling | |
| Rated power | ≤10W/≤20W/≤30W | |
| Frequency | 20-80KHZ | |
| Scanning speed | ≤9000mm/s | |
| Scanning accuracy | ±0.05mm | |
| Repeated positioning accuracy | ±0.001mm | |
| Processing area | 100×100mm(optional for different working area) | |
| Minimum line width | 0.01mm | |
| Minimum character | 0.15mm | |
| Power | 600W/800W | |
| Power supply | 1PH+1 AC 220V 10A 50/60HZ | |
| External size | 900mm×620mm×1100mm | 650mm×250mm×520mm |
| Weight | 80kg | 15kg |
| Environmental requirements | Temperature 20℃-30℃ humidity 30%-80%(no condensation frost) | |
| System/compatible format | Windows XP/AI、PLT、DXF、BMP、JPEG and so on | |

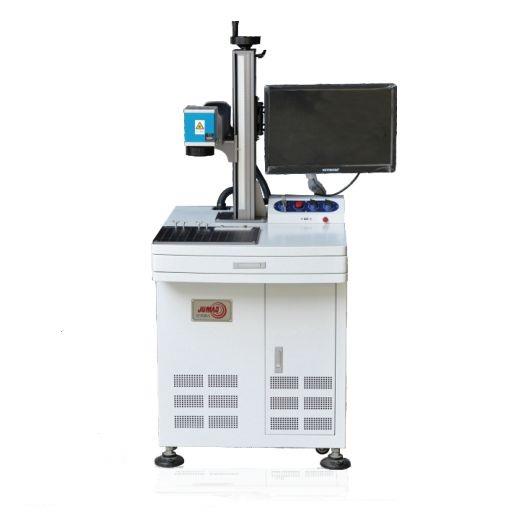

The optical fiber series laser marking machine has a perfect compact shape, which makes the production station flexible and changeable. The most environmentally friendly way to mark. The world's leading optical technology makes laser marking impeccable.
Features
Long service life(up to 100,000 hours);
Maitenance-free;
Portable, flexible, environmentally friendly;
Long energy consumption(0.35KW/hour);
Fine engraving characters(minimum 0.2mm)
High speed.
Applicable industry
Electronic communication, precision hardware, jewelry, electrical appliances, auto parts, instrumentation, sanitary ware, glasses and watches and other industries.
Applicable materials
Mobile phone buttones, light-transmitting buttons, integrated circuits(ic), metal products, etc.

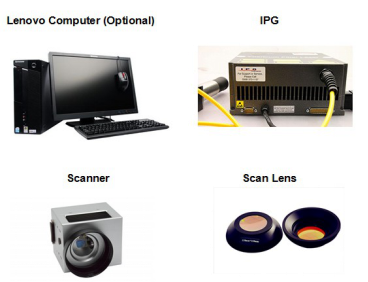

Standard Accessories (Fiber Laser Marking Machine)
A set of IPG
A set of Scanner
A semiconductor module
A set of high-speed vibrating mirrors
A set of marking control system
An industrial computer
A marking work table
A red laser pointer
A pedal switch
A set of marking software
A "Instruction Book", "Operation Manual" and "Training Video”
Optional Accessories
A rotary attachment (mainly for engraving cylindrical/round objects)
Applicable industry
Electronic communication, precision hardware, jewelry, electrical appliances, auto parts, instrumentation, sanitary ware, glasses and watches and other industries.
Applicable material
Mobile phone buttons, light-transmitting buttons, integrated circuits (ic), metal producrs, etc.
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
