Laser Etching Machine for Plastic

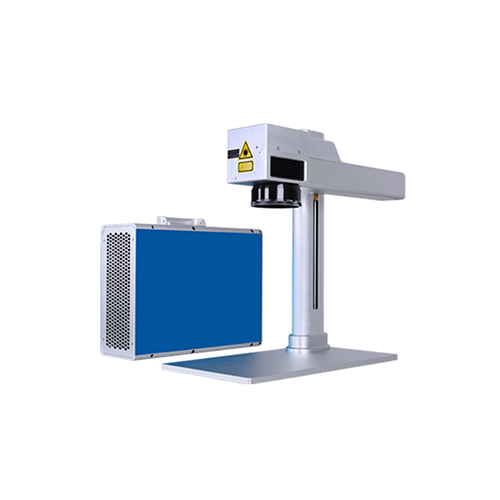

Mini Desktop Laser Etching Machine for Plastic

Mini Desktop Laser Etching Machine for Plastic

Product Name: Mini Desktop Laser Etching Machine For Plastic
Classification: Laser Etching Machine For Plastic
Application: Plastic, Color Sheet, Glass, Sliver, etc
Place Of Origin: China
...

Send Inquiry
Product Details

Product Parameters


Specification for mini metal laser marking machine


Model & Power


PEDB-100

20w China famous laser source


Laser

Laser wavelength

1064±4nm

Polarization

Random

Output power

20w


Laser source

Frequency adjusting range

20~80KHZ

Facular diameter

7~9mm

Beam quality

<1.7 square meter

operating voltage

100~240VAC

Fiber Length

1.5m

Cooling mode

Air cooling

Software Support Format

Graphics, Text, Bar Codes, QR Code, Serial Number, Serial number,etc.

Application

Metal, Alloy, Plastic, Color Sheet, Glass, Sliver, Gold etc



Product Application

1. Mini Desktop Laser Etching Machine For Plastic with pre-loaded legitimate computer operating systems, broke away from the shortcomings of traditional marking machine which need equipped with extra computer, you just do some simple steps and Mini Fiber Laser Marking machine will enter work mode.

2. Mini Desktop Laser Etching Machine For Plastic made from Germany aluminum alloy material imported from Germany, with 132 fabricating processes and 52 manual assembly processes, you will cannot help liking it.

3. Mini Desktop Laser Etching Machine For Plastic has small and compact structure installed with the computer system, the laser control system, the motion control system and humanized design. Above all the installment is convenient.


Product Features

1.jpg Best Marking Effect:

The laser beam of the CNC Laser Marking Machine is fine and thin.

Perfect Laser's Mini fiber laser marker can provide the best marking effect among all the other brands' Mini fiber laser marking machine. Especially good at the picture, image marking.

1.jpg Deep Marking:

Mini fiber laser marking machine can make deep marking up to 1.0mm on stainless steel and aluminu.While other supplier only could mark 0.2mm-0.3mm.

1.jpg Higher Accuracy:

Mini fiber laser marking machine can reach unto 0.001mm precision, while other supplier only 0.01mm.

1.jpg 10 Years Long lifetime:

We used the fiber laser module made by Germany IPG technology, the lifetime can reach to 100000~200000 hours, so the machine can be used for 8-10 years.

1.jpg No consumables: 8-10 years lifetime without any consumables.

1.jpg No need to adjust the laser path.

1.jpg Free of Maintenance for machine working.

1.jpg Use Integrated Air Cooling.

1.jpg Low Power Consumption:low cost, only 0.5kw/hour.

1.jpg Small and compact:

the volume of Mini Desktop Laser Etching Machine For Plastic is small and compact.Whole machine weight less than 35KG.

1.jpg Adopt NWT technology three in-one computer, you can connect machine with computer via wifi,U disk and data wire which realize the offline control function.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Mini Desktop Laser Etching Machine For Plastic, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.


Inquiry
Hot Tags: mini desktop laser etching machine for plastic, China, manufacturers, suppliers, buy, cheap, price
