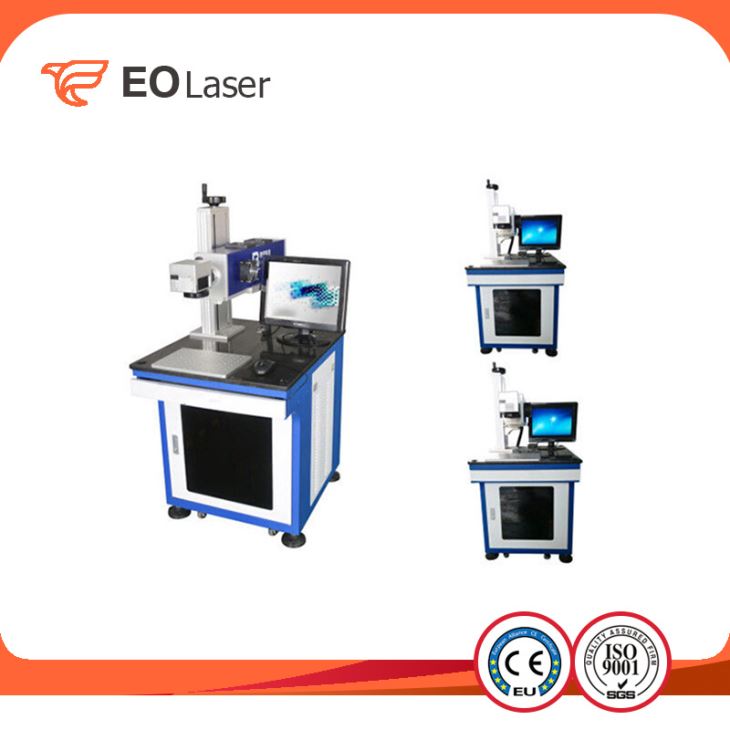

Wood CO2 Laser Engraving Machine

Wood CO2 Laser Engraving Machine

High speed CO2 laser marking machine adopts American RF laser and high speed galvanometer system.It is equipped with high quality optic components,extremely stable laser power supply and full auto controlling system.It is characterized by high precision and speed,stable performance.It can continuously work for a long time and be installed to production line....

Send Inquiry
Product Details



Product Details
Place of Origin:China
Brand Name:USA Synrad Laser
Certification:CE
Model Number:LB-MC60



Detailed Product Description
Laser Wavelength:10640nmPulse Frequency:≤50KHz
Engraving Speed:≤7000mm/sCooling System:Air-cooling
Repeated Precision:±0.003mmPower Supply:220V / 50Hz
Power Consumption:0.8KWProducts:Bamboo Wood , PU Leather Plastic Acrylic Glass





Technical Parameters
ModelMC10MC30MC60
Laser wavelength10640nm
Laser power10W30W60W
Marking Area70mm×70mm 100×100mm100mm×100mm 200mm×200mm
300×300mm (optional)
Marking speed7,000mm/s
Minimum line width≤0.15mm≤0.3mm line width varies in according to labeling
Minimum character0.4mm0.4~0.6mm
Repeating orientation precision+0.003mm
Cooling modeAir cooledWater cooled



Standard Accessories (CO2 Laser Engraving Machine)

A set of USA SYNRAD Laser Source

A set of Galvo tech Scanner

A set of focus lens

A set of high-speed vibrating mirrors

A set of marking control system (Original version)

An industrial computer

A marking work table

A red laser pointer

A pedal switch

A set of marking software (EZCAD)

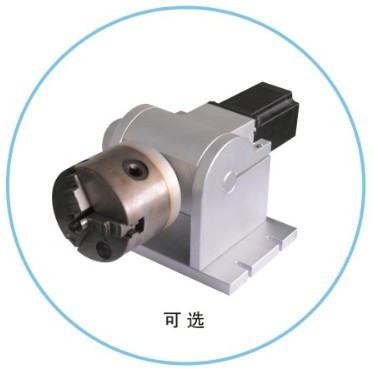

Accessories (Optional)




60 Watt Wood CO2 Laser Engraving Machine For Wood Craft / Acrylic Bamboo



60W Wood Laser Engraving Machine For Wood Craft , Acrylic Bamboo Carving Machine




Equipment features

1 . It is full sealed and free maintenance laser optic system ensure the machine can be used at installation without adjustment.

2. It adopts original imported RF laser.The laser quality is excellent,lifetime is long.

3 . High precise and fast performance,marking clearly,firm and permanent labels.

4 . We do chose the best appliances with high cost performance based on different customer's request.

5 . Under Windows interface,it can compatible with a variety of software output files,such like AutoCAD,CoreDraw, Photoshop.Support PLT,AI,DXF,BMP and other documents ,directly using SHX,TTF font.It supports automatic coding,serial number,batch number,date,bar code and two-dimensional code marking.



Technical Advantage



1 Adopted USA imported RF metal laser device, high performance, long service life, the cavity can always be used.

2 High accuracy and speed of engraving , the performance is extremely stable, support long time continuous work.

3 Excellent laser power utilization rate, and can be applied to a variety of nonmetal products in engraving and cutting.

4 Without consumables cost, clear marking, not easy to wear, high efficiency of engraving and cutting, environmental protection,energy saving.

5 DXF ,PLT, BMP ,AI ,JPG and other documents supported in the software, and can form the serial number, production date, bar code and planar bar code automatically . Support online flying, rotating marking, and support XY platform with large area partitioning marking.



Application Field



A. Materials: wood products, paper, cloth, leather, organic glass, acrylic, epoxy resin, unsaturated polyester resin and other non metal materials.

B. Industry: craft gift,furniture, leather and cloth, advertising signs, model products, food packaging,electronic components, pharmaceutical packaging, printing plate, nameplate, case and so on.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
