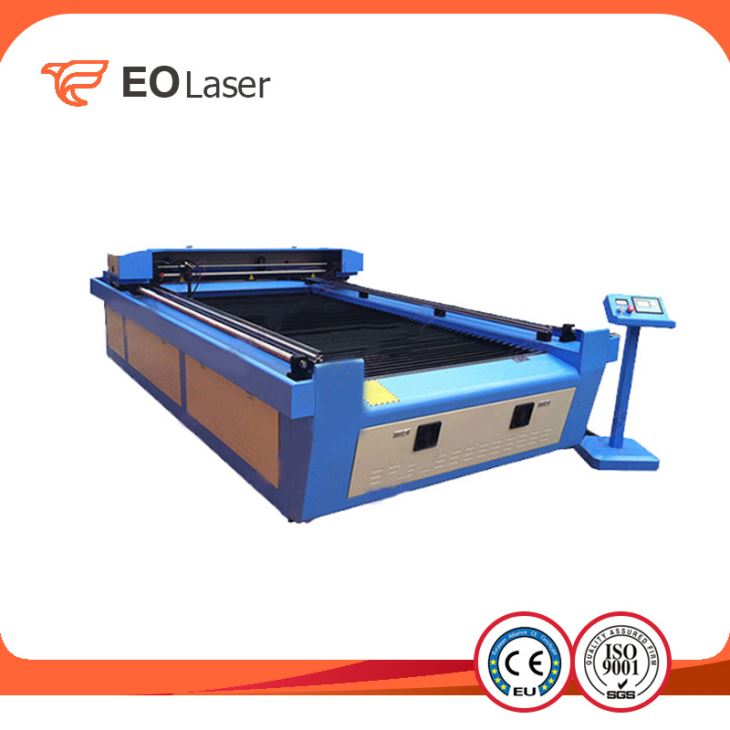

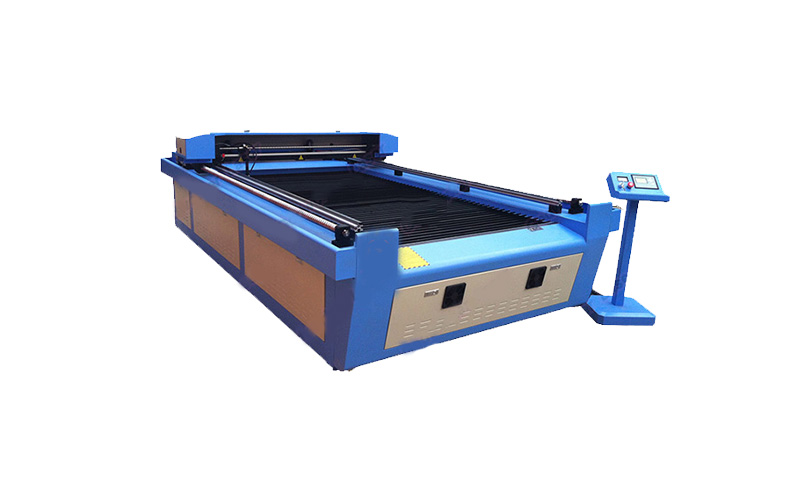

GW-2030 Large Size Laser Cutting Machine

GW-2030 Large Size Laser Cutting Machine

Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.... Send Inquiry
Product Details



Parameters:
ModelGW-2030
Engraving and Cutting Area2000*3000mm (L*W)
Tube typeCO2 sealed glass tube
Laser wave10.6um
Laser PowerRECI-80W ( 100w, 150w, 200w )
Cooling wayPure water ( water chiller)
Engraving Speed0-60,000mm/min
Cutting Speed0-30,000mm/min
Reposition Accuracy±0.01mm
Minimum Character SizeEnglish:1mm ; Arabic numbers:1mm
Resolution1,000--10,000 dpi
File output mode2.0 USB interface
Machine Power<3,000W
Laser Output Control0-100% No section control,Soft inner 0-100% adjustable.
Support Format and SoftwarePLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, laser cut 5.3
Working EnvironmentTemperature:0-45°C Humidity 5%-95% ( No condensate water)
Drive systemLeadshine DC Stepper motor
Control systemRuidia DSP offline LCD control system
Exhaust smoke system750W exhaust fan ( Optional Air purified)
Working Voltage10% ± 220V,50HZ/60HZ
N.W.1200KG
G.W.1300KG
Warranty time2 year for machine (12 months for RECI tube)
PackagePlywood case
Packing size4300*2320*1300mm
Delivery time5 working days after received the deposit





Applicable Industry:

1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell

2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.

3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.

4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.

5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.

6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.

7.Product Identification Industry: Security marking products, etc.



Applicable Material:

Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf , Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service


Inquiry
Hot Tags: gw-2030 large size laser cutting machine, China, manufacturers, suppliers, buy, cheap, price
