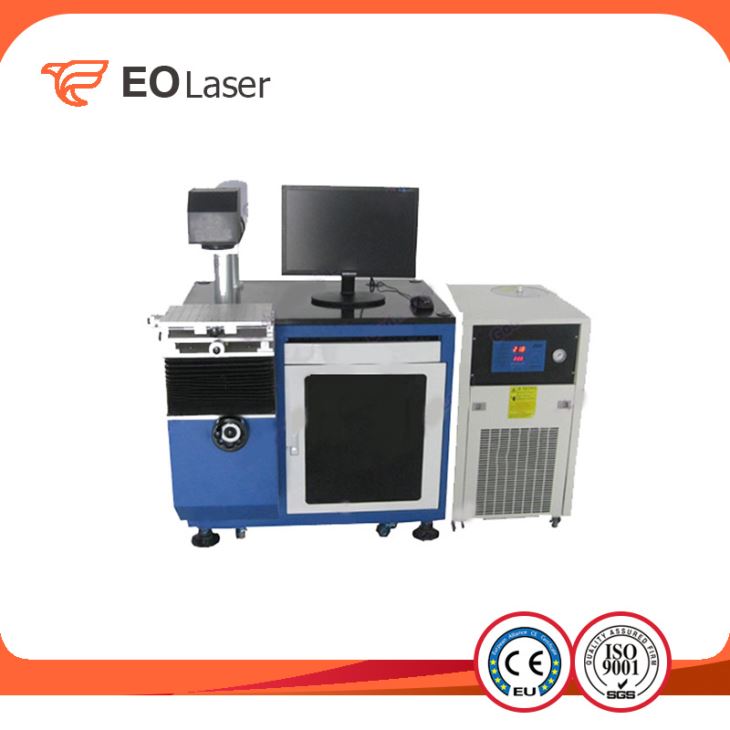

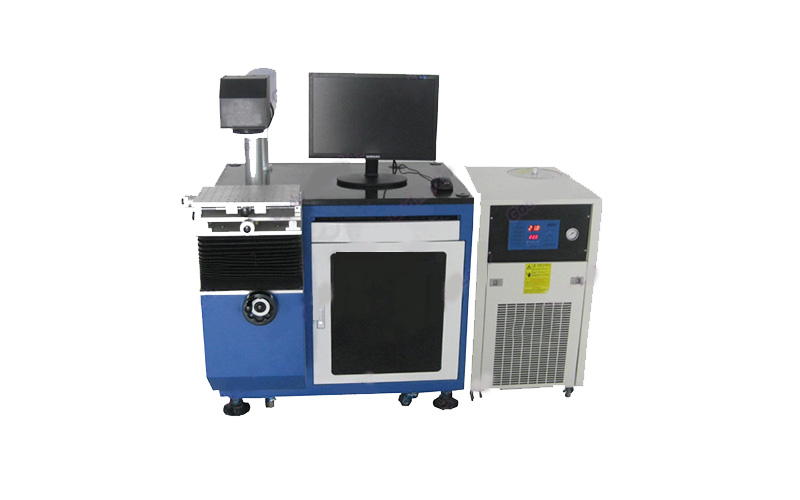

Stainless Steel Laser Marking Machine

Diode Laser Marking Machine

Diode Laser Marking Machine

This machine is suitalbe for marking the barcode, serial number, graph, logo on the metal and some non-metallic materials.... Send Inquiry
Product Details



Technical Parameter:
ModelEO-50
Laser deviceYAG laser device
Optical maser wavelength1064nm
Average output power50W
Modulation frequency range20KHz~80KHz
Maximum speed7000mm/s
Resolution0.001mm
Repeat location accuracy0.003mm
Marking rangeF=160mm,110×110mm
Minimum line width0.01mm
Minimum character height0.2mm
Sheet label marking time≤ 90 s (depend on the content)
Paper cutting modePneumatic hob
Working tableWorking table with vacuum system
Laser power supply800W/AC220V/50Hz, 1.1KW/AC220V/50Hz
Cooling modeWater cooled
The Max input power2 phase 220V AC,50 / 60 Hz
Environmental Requirement0~35°C,humidity≤90%
WarrantyOne year
PackageWooden case
Delivery time5 working days






Features and advantages

Red light pointer previews the exact positioning with focus indication. Equipped with luxury component, imported focus lens and reflected mirror, USA imported diode module, top glass scanning head, famous English “Gooch” brand Q switch, makes high efficiency and steady performance.

Compare with the YAG laser marker, it doesn’t need to change the consumables Kr lamp, free of maintenance,very low operation cost.

Professional control software to give customer’s friendly and easy operating interface. Which can set different marking parameters setting to satisfy different effect.

High efficient water cooling, special auto emergency water stop protection function, can ensure the machine to work under any environment steadily

Up-and-down worktable to ajust the foucs distance for the convenience of different height of workpieces.

Diode side-pump laser and the high speed galvo head to engrave the deep depth.


Applicable industries

This machine is suitalbe for marking the barcode, serial number, graph, logo on the metal and some non-metallic materials as follow: gold, silver, stianless steel, copper, brass, aluminium, plastic, PVC, PES, ABS, ceramics and so on. And it has been widely applied in the indsutries, like electronic primary device, the communication, the spare parts of automobiles and motorcycles, the instrument measuring appliance, the aerospace, the war industry product, the hardware and machinery, the tool measuring instrument cutting tool, the sanitary equipment, the solar energy, handicraft and so on.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
