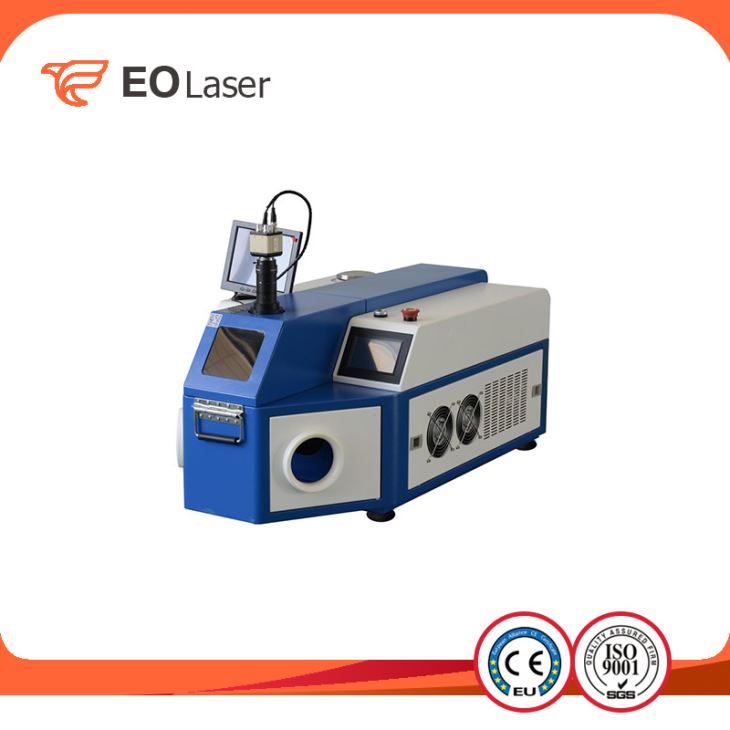

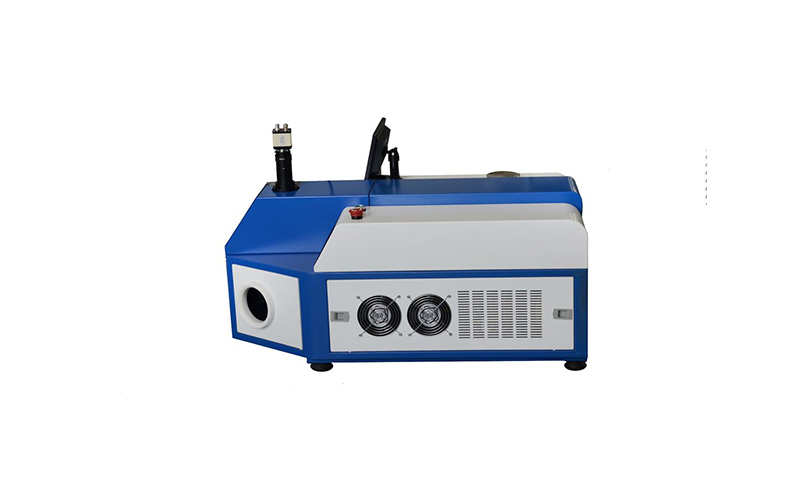

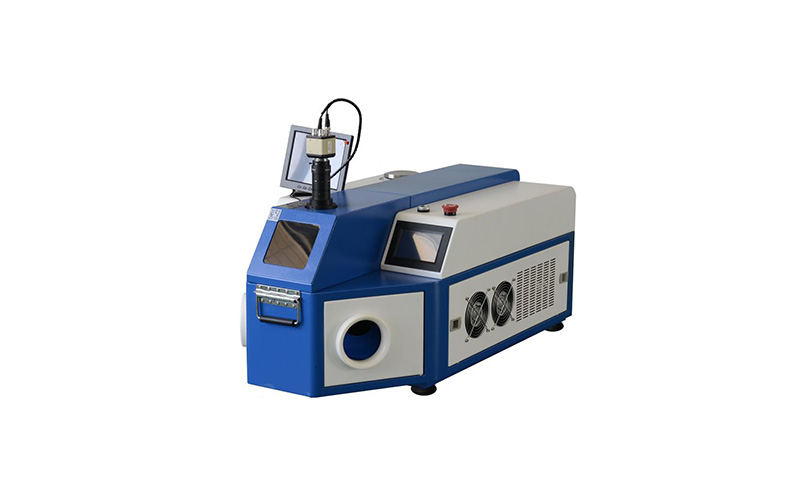

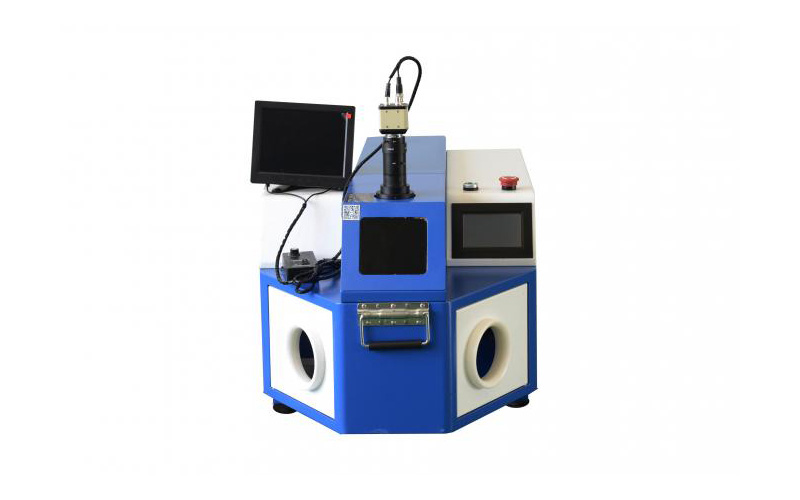

Portable Jewelry Laser Welding Machine

Portable Jewelry Laser Welding Machine

LB-TW80 Laser Welding Machine is specially designed for jewelry industries and electronics, which imported advanced technology and adopts high quality accessories, the whole machine is more efficient, more durable, more convenient and environmental protection.... Send InquiryChat Now
Product Details


Product Details:

Place of Origin:

China

Brand Name:

Leadboom

Certification:

CE

Model Number:

LB-TW80


Detailed Product Description

Model:

LB-TW-80

Laser:

Yag Laser

Max Peak Power:

4.5 KW

Pulse Length:

1-5ms

Laser Frequency:

1-12Hz Light

Spot Size:

0.1-2.0mm

Laser Cooling System:

Internal Water-air

System

Dimension:

1050*560*650mm





Model

LB-TW80

Laser source type

Nd:YAG

Laser wavelength

1064nm

laser class

4

Pulse output energy

0.5-60J

Average laser power

80W

Pulse width

1-5ms

Pulse frequency

1-6Hz

Spot diameters

Spot diameters

Focusing system

Microscope + automatic light-filtering protection system

Cooling system

Internal water-air system

Power

220V / 50Hz

Machine Size

1050*560*650mm

Weight

60KG


Technical Advantages



1.The whole machine with ergonomics design, more suitable for jewelry industry, nice appearance, stable performance, to meet the requirements for long time continuous work.



2.Applicable for welding and repairing metal materials, including stainless steel, 18K gold, platinum,925 silver and other metals.



3.Big internal space, convenient to put the tool and fixture.



4.Switch for adjusting laser parameters installed in working area, easy to operate.



5.Adjustable LED shadowless lamp, imported microscope, more clear to observe the welding position.



6.Water-air cooling system internally installed, machine with small volume, low power consumption, no need industrial power, convenient to operate in small shop or factory.



7.Small heating affects for welding, strong joints with nice and smooth surface, convenient operation, fast speed, high efficiency, more depth, less distortion, efficient environmental protection and pollution-free



8.High-definition CCD monitor is more convenient to observe the welding position.





Production Application of laser welding machine



Laser welding can be used to the welding between the same metal materials, such as Titanium, Nickel, Tin, Zinc, Copper, Aluminum, Chromium, Niobium, Gold, Silver and all kinds of Alloy.



This machine is applied to a variety of industries, such as Mobile Communications, Electronics, Clocks and watches, Glasses, Jewelry Accessories, Metal products, Precision Instruments, Medical Equipment, and etc.




Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
