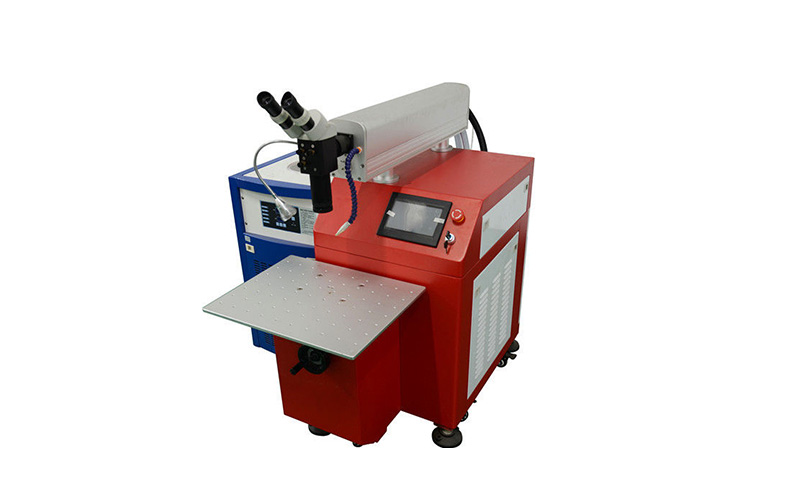

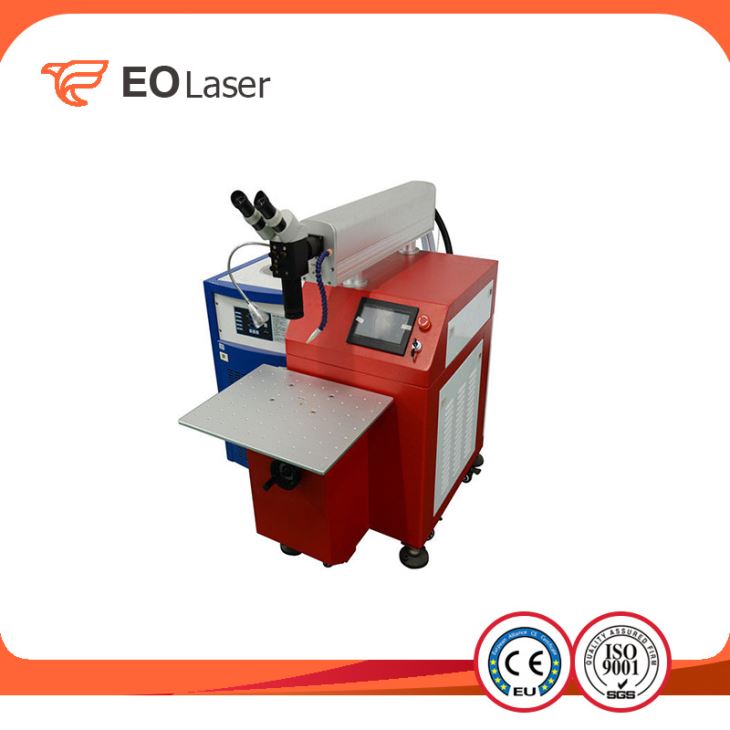

Medical Equipment Laser Welding Machine

Medical Equipment Laser Welding Machine

The laser soldering machine is used for between the same metal materials, such as Titanium, Nickel, Tin, Zinc, Copper, Aluminum, Chromium, Niobium, Gold, Silver and all kinds of Alloy.... Send InquiryChat Now
Product Details


Product Details
Place of Origin:China
Brand Name:Yag Laser
Certification:CE
Model Number:LB-MW300


Detailed Product Description
Model:LB-MW300Laser Wavelength:1064nm
Light-gathering Cavity:UK Ceramic CavityMax.Laser Powerw:200W
Pulse Length:0.1-20msLaser Frequency:0.1-30Hz
Light Spot Size:0.3-2mmAiming Device:Cross Cursor And Red Dot Preview (Camera System Is Optional)
Average Power Consumption:6KW Single/ 3 PhraseDimension:700x1600x1300mm




ModelLB-MW200LB-MW300
Laser wavelength1064nm1064nm
Light-gathering CavityUK Ceramic CavityUK Ceramic Cavity
Max.Laser Power200w300w
Pulse Length0.1-20ms0.1-20ms
Laser frequency0.1-30Hz0.1-30Hz
Light spot size0.3-2mm0.3-2mm
Aiming device

Cross cursor and red dot preview

(Camera system is optional)

Cross cursor and red dot preview

(Camera system is optional)

Chiller power1.5P3P
Average Power Consumption6KW Single/ 3 Phrase12KW 3 Phrase
Input Power

Single phrase: 220v±5%, 50Hz/30A

3Phase:380v±5%, 50Hz/20A

3Phase: 380V±5%,50Hz/40A
Dimension

Host:700x1600x1300mm

Chiller:550x800x800mm

Host:700x1600x1300mm

Chiller:400x740x740mm


Production Application of laser welding machine



Laser welding can be used to the welding between the same metal materials, such as Titanium, Nickel, Tin, Zinc, Copper, Aluminum, Chromium, Niobium, Gold, Silver and all kinds of Alloy.



This machine is applied to a variety of industries, such as Mobile Communications, Electronics, Clocks and watches, Glasses, Jewelry Accessories, Metal products, Precision Instruments, Medical Equipment, and etc.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
