Portable Plastic Sheet Laser Cutting Machine

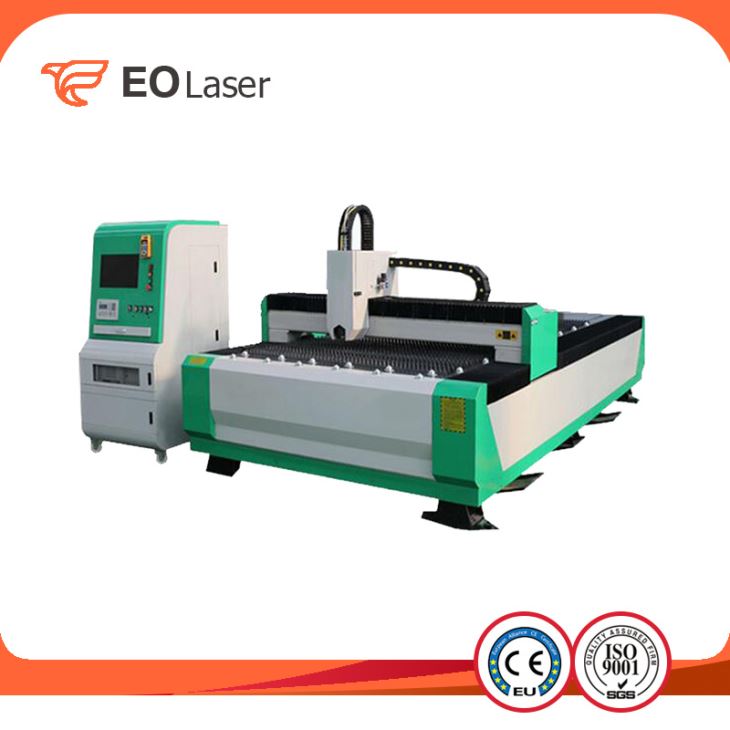

Product Name: Portable Plastic Sheet Laser Cutting Machine
Classification: Plastic Laser Cutting Machine
Application: S/S, carbon steel, galvanized sheet, etc
Place Of Origin: China
...

Send Inquiry
Product Details

Product Parameters


Model

P-A1530

P-A1540

Cutting Range (length*width)

1500*3000mm

1500*4000mm

Fiber Laser Generator medium

Semiconductor pump continuous ytterbium doped fiber

Max Moving Speed

100m/min

Max Cutting Speed

25m/min

Positioning Accuracy

0.03mm

Repeated Positioning Accuracy

0.02mm

Cooling Type

Water cooling

Laser Output Power

500W/1000W/2000W/3000W/4000W

Min Line Width

0.1mm

Drive System

Servo motor

Power Allocation

380V/220V±10%, 50Hz/60Hz

Continuous Working Time

24 hours

Related Weight

Whole machien: approx 4 tons, actual weight based on final configuration (depends on model)

Machine Size (l*w*h)

2.4*5.7*1.9m  2.4*5.7*1.9m

Accessories (l*w*h)
(take 500W for example)

Water chiller 1*1*1.2m, contol box 1*0.8*1.8m, fiber laser generator 0.5*0.6*0.14m


Product Application

1.jpg Applicable Fields

Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, galvanized sheet, electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials,laser metal cutting machine price


Product Features

1.jpg Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.

1.jpg High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.

1.jpg Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

1.jpg High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Portable Plastic Sheet Laser Cutting Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
