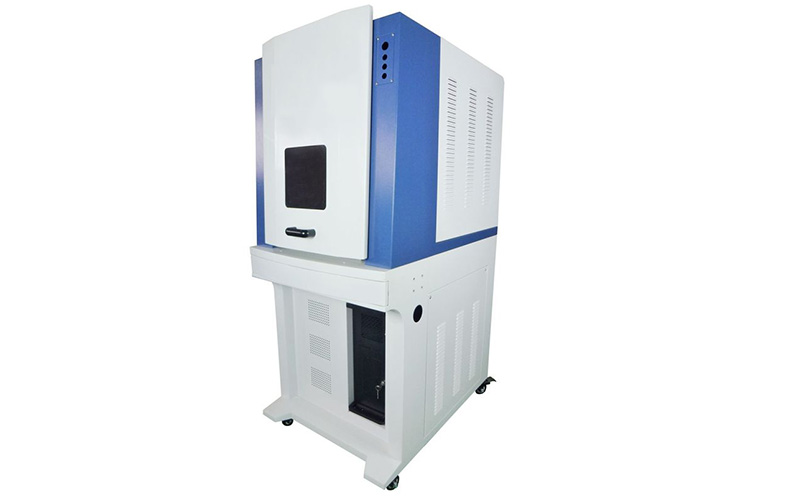

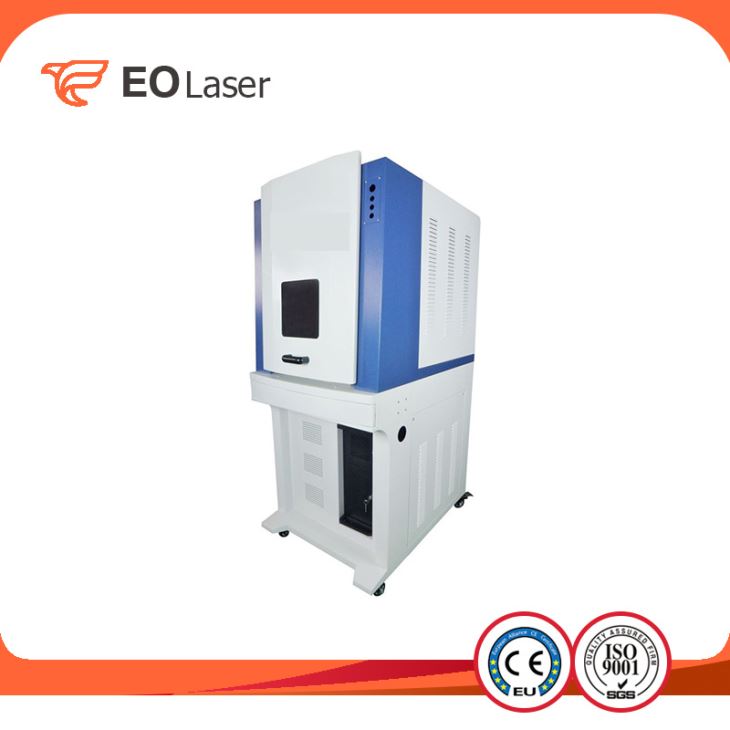

UV Air Cooling Laser Marking Machine

Place of Origin:

Brand Name:

UV laser source

Certification:

CE

Model Number:

LB-UV5W

UV Laser Marker Machine/engraving Machine Metal And Non-metal:

Laser Engraving, Metals And Nonmetallic

Laser Engraving, Metals And Nonmetallic:

New

Engraving Area:

110*100mm/180*180mm

Engraving Speed:

Engraving Speed

CNC Or Not:

YES

Cooling Mode:

Water Cooling

Applicable Material:

Glass, Metal, Plastic

Graphic Format Supported:

AI, BMP, DXF, LAS, PLT, JPEG

AI, BMP, DXF, LAS, PLT, JPEG

Guangdong, China (Mainland)

Total Weight:

120KG

Laser Power:

3-10W

Maximum Laser Power

3W

5W

7W

10W

Laser Wavelength

Nd: Yvo / 355nm

Beam Quality M2

1.1

1.1

1.3

1.3

Laser Frequency

0KHz~90KHz

Marking Scope

110x110mm or 180x180mm (Optional)

Min.marking character

0.1mm

Marking Speed

400 characters / sec

500 characters / sec

Min. Line Width

0.01mm

0.015mm

Repeated Precision

±0.001mm

Cooling System

Water-cooling

Voltage

220V / 50Hz / 10A

Dimension

900x680x1200mm

Total Weight

120kg
