Stainless Steel Laser Welding Machine

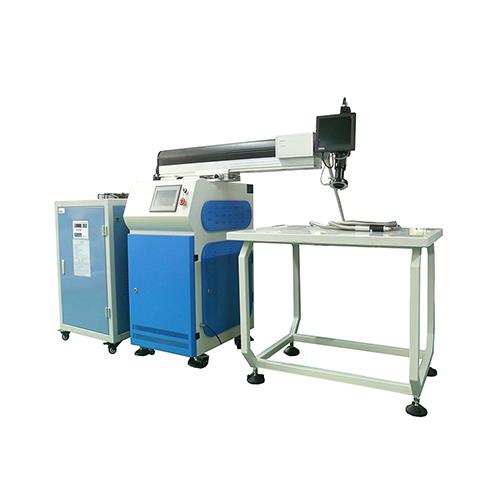

Stainless Steel Laser Welding Machine for Channel Letter

Stainless Steel Laser Welding Machine for Channel Letter

Product Name: Stainless Steel Laser Welding Machine For Channel Letter
Classification: Stainless Steel Laser Welding Machine
Application: stainless steel, etc
Place Of Origin: China
... Send InquiryChat Now
Product Details

Stainless Steel Laser Welding Machine For Channel Letter is used for making a variety of stainless steel letter, LED luminous characters, AD Logos, signs and other fast welding. Logo making, fine word production, metal word production, Copper factory, advertising production company, and so on.  Perfectly weld for 0.1-2mm stainless steel, galvanized plate and bronzing plate; 0.1~1.2mm copper brass and aluminum.


Product Parameters


Model

PE-W300

PE-W500

PE-W300-II

PE-W500-II

Name

300W Laser welding machine

500W Laser welding machine  Kw/rpm

300W Double light path Laser welding machine
hand held

500W Double light path Laser welding machine
hand held

Machinery Part

Laser cavity length of 1100 mm, the laser head can rotate 360 degrees.

Working Area

750*1000MM

Load Bearing

≤200KG

Machine Power Supply

220V±10%/50/60Hz

380V±10%/50/60Hz

220V±10%/50/60Hz

380V±10%/50/60Hz

Laser Type

Nd:YAG impulse xenon lamp

Spot Size

0.2-3.0mm

Laser Wave Length

1064nm

Impulse Width

≤10ms

Laser Power

300W

400W

300W

500W

Single Pulse Energy

90J

120J

90J

120J

Impulse Rate

≤30Hz

≤50Hz

≤30Hz

≤50Hz

Laser Power

500W

400W

300W

500W

Single Pulse Energy

120J

120J

90J

120J

Impulse Rate

≤50Hz

≤50Hz

≤30Hz

≤50Hz

Laser Output Focal Length

150-250mm

150-250mm

150-250mm  Laser head120mm

150-250mm Laser head120mm

Laser Cooling

Water cooling

Cooling Capacity

2700W

5000W

2700W

5000W

Total Power

<7KW

<12KW

<7KW

<12KW

Viewing System

CCD



Product Application

1.jpg With the booming of global advertising industry, metal letters has been more and more popular because of its colorfulness, attractiveness, heating-proof, frozen-proof, no deformation, no fadedness (8-10 years color preservation), corrosion proof, rain-proof, and spontaneous combustion proof and some other good features.

1.jpg AD metal letters are made of stainless steel, aluminum, brass or other metal sheet being cut, polished, hemmed, and welded. The core feature of AD metal letters is being rustproof, with long life span and dimensional looks. It’s widely used in LED illuminated billboard, exterior/interior signs, branding, door plate and etc.


Product Features

1.jpg Red light finds the welding point fast, CCD intuitive observation, optional microscope.

1.jpg Marble working platform, to ensure that the bright face plate does not scratch.

1.jpg Machining speed, dedicated fixed focus position of the rotation of the bearing rod, without the need for CCD and microscope. It can quickly focus on the welding.

1.jpg Small thermal deformation and heat affected zone.

1.jpg local heat treatment can be carried out on the metal word;

1.jpg Available for the processing of complex shape of parts and small words.

1.jpg Processing without noise, no pollution to the environment;

1.jpg Ultra fine bearing rotating positioning rod, friction plate welding word, also need not adjust the spot position in the font corner.

1.jpg Owing to the advanced processing method, the quality of the existing metal character is greatly improved.

1.jpg LED ring special lighting lamp, no dead spot.

1.jpg The self-produced high peak laser power supply, for other brand is difficult to weld aluminum. The machine can easily achieve (400W models for welding aluminum models).

1.jpg Standard models and double light path optional hard light welding small, 5 meter long fiber pen welding with Chinese characters.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Stainless Steel Laser Welding Machine For Channel Letter, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
