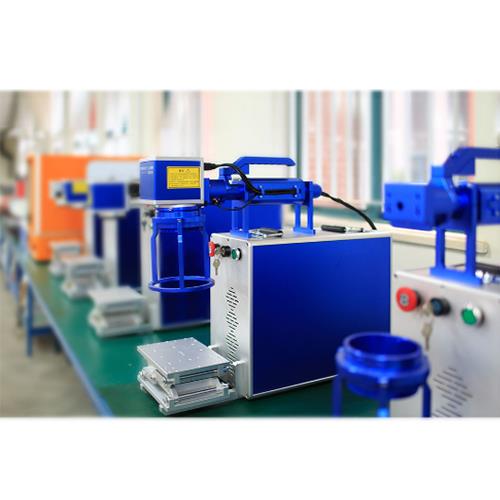

Handheld Fiber Laser Marking Machine

Handheld Fiber Laser Marking Machine

Product Name: Handheld Fiber Laser Marking Machine
Classification: Handheld Laser Marking Machine
Application: Automobile Parts, Mechanical Parts, Daily Necessities, Jewelry, etc.
Place Of Origin: China
...

Send Inquiry
Product Details

Handheld Fiber Laser Marking Machine using PEDB-400H Desktop portable design, not only can be fixed for the desktop marking, but also removable for hand-held marking.It`s small, light, convenient to carry, and the marking speed is twice than the same type of laser. It adopts imported laser, so the core component life can reach more than 100,000 hours, also no subsequent consumables.


Product Parameters


Model No.

PEDB-400H

Type

Hand-held

Computer

Not includes PC

Laser Source

IPG Series:

Pulsed, High Energy Ytterbium Fiber Lasers

Mode of operation

Pulsed

Polarization:

random

Nominal average output power

10W/20W/30W/40W/50W

Central emission wavelength:

1060-1070 nm,Q-switched operation Output power adjustment range 10%-100%

Emission Bandwidth (FWHM)

<10 nm

Long-term average power instability

<5%

Pulse width, (FWHM)

100 ns

Laser switching ON time

180 μsec

Laser switching OFF time

180 μsec

Pulse Repetition Rate* kHz

20-80 kHz

Energy per pulse (PRR = 20 kHz)

0.95 mJ

Typical beam quality, M2

<1.8

Output fiber delivery length

3m

Operating voltage:

220V

Max. Power consumption:

600W

Laser system

Scanning Speed:

0-7000mm/s

Marking Speed:

0-5000mm/s

Marking size:

110mm×110mm (F-theta 160)

Spot size:

≤ 40 micron (F-theta 160)

Cooling unit:

Air cooled

Pilot laser:

650nm diode laser,visible red light for marking guide

Continuous working time:

≥16h

Humidity:

45~85% (no condensation)

Operating temperature:

0~40℃



Product Features

1.jpg The whole machine is light weight, small size, easy to carry. The galvanometer can be rotated to 90 degrees according to the requirements of side marking, suitable for pipeline work.

1.jpg Desktop and portable dual-use design, you can not only finish desktop fiber marking by a fixed bracket ,but  also complete the hand-held marking by removable hand.

1.jpg Comes with fixed auto-focus bracket ,easy to use, save time and labor.

1.jpg Laser in the fiber wave by the increase in oscillation, good stability, free from external dust and mechanical loosening of the impact of the output of the laser beam stability.

1.jpg Maintenance-free operation, the laser without any maintenance, do not have to adjust or clean the lens, no supplies.

1.jpg Processing speed is fast, and the processing speed is 2-3 times of the traditional laser marking machine.

1.jpg Excellent Spot quality, high peak power, in the same material, the marking effect is best

1.jpg Automatic lift platform, integrated air-cooled system, integrated design,with the beautiful appearance.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Handheld Fiber Laser Marking Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
