Stainless Steel Laser Marking Machine

Automobile Laser Marking Machine

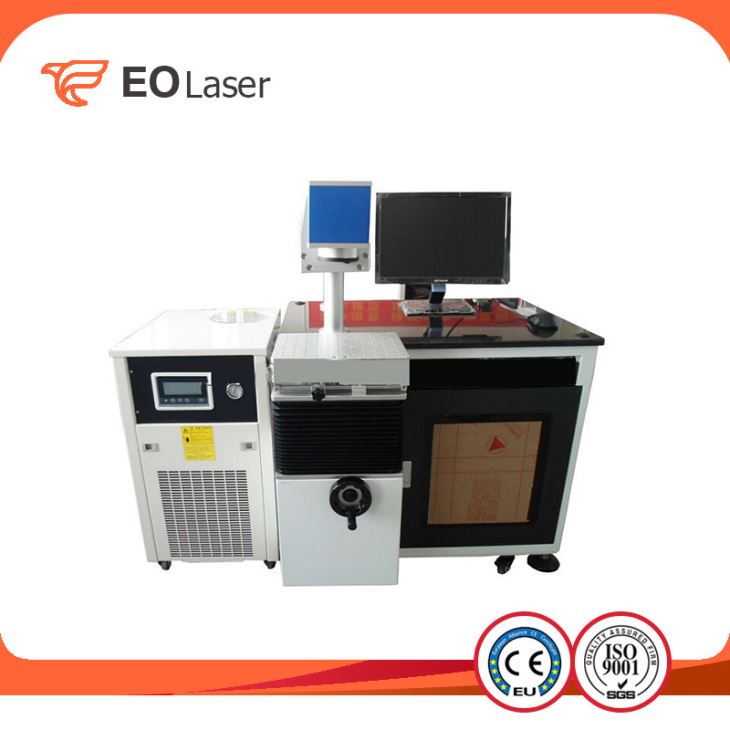

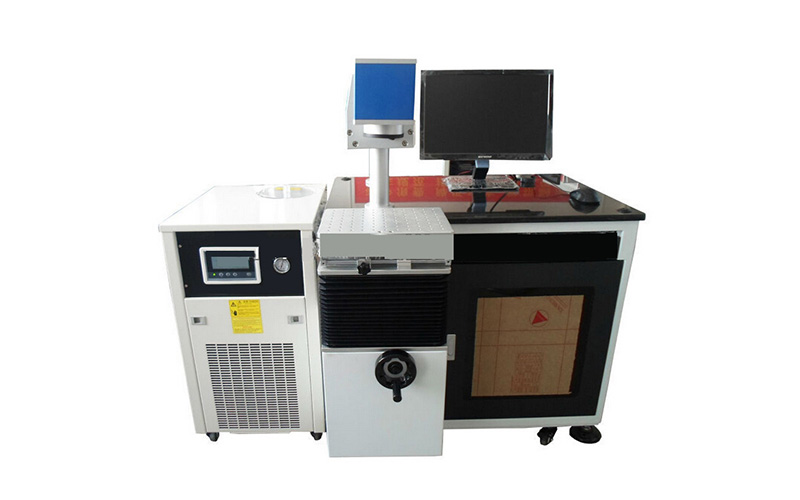

Automobile Laser Marking Machine

The YAG laser marking machine is used for more than 30 series in automobile industry, like the Body label, oil pressure label, VIN code label, air conditioning label, bar code label, cooling system label, key label, oil tank label, car door label, etc.... Send Inquiry
Product Details



Specification:
ModelGW-75
Work Area (cm)110x110/160x160/220x220(Optional)
Laser Power75W (Optional)
Laser Pulse Frequency<50KHz
Wavelength1064nm
Min Line Width50µm
Min Character0.2mm
Marking Speed300character/min1mm character high 1mm
Marking Depth≤ 0.3mm                          ≤0.5mm
Repeat Precision±0.01mm
Power Supply220V(±10%)/50Hz/15A
Gross Power<3.5KW
Cooling StyleHigh precision constant temperature/closed loop water cooling)
Operating Temperature10°C-45°C
Warranty12 Months
Dimension (cm)124x53x137
Weight (kg)250






Feature:

The YAG laser marking machine is used for more than 30 series in automobile industry, like the Body label, oil pressure label, VIN code label, air conditioning label, bar code label, cooling system label, key label, oil tank label, car door label, etc.

1.Good flexibility and adaptability Combine with the spot workstation; accept model, production date, maintenance code, etc of the auto mobile, with the specialized software to convert into plane laser marking output. This can meet fully require of on-line production, especially suitable for the mixed-model assembly line of a few different models.

2. maintenance-free The hardcore adopt imported YAG laser device, with good quality light beam(ground mode output) and long service time of 100000 hours to reach maintenance-free

3.Good anti falsification As the flexible label marking machine is with complicated configuration, and the soft label material on-off type, it is hard to copy. And it can protect the manufacturers’ and customers’ lawful rights and interests

4. Low aggregate cost : For quantity production and enterprises with many different automobile models, no other Consumable is need, uses especially economical

5. Made of Special Material : heat resisting, wear resistant, corrosion proof, repellent, long working life.




Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
