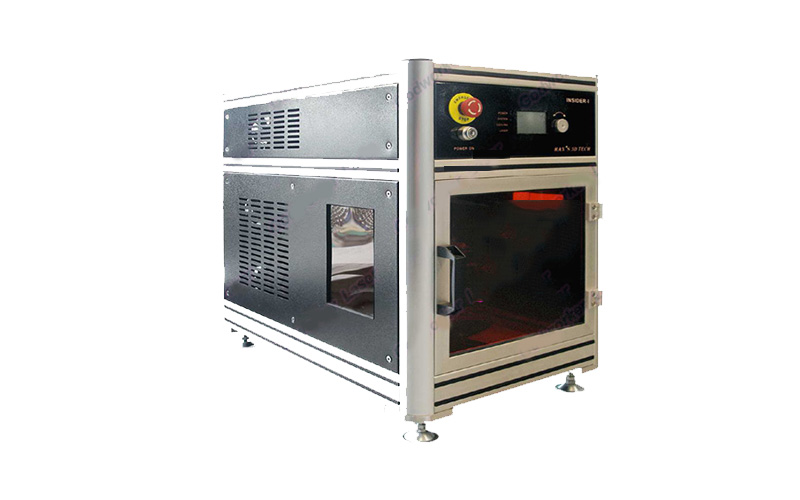

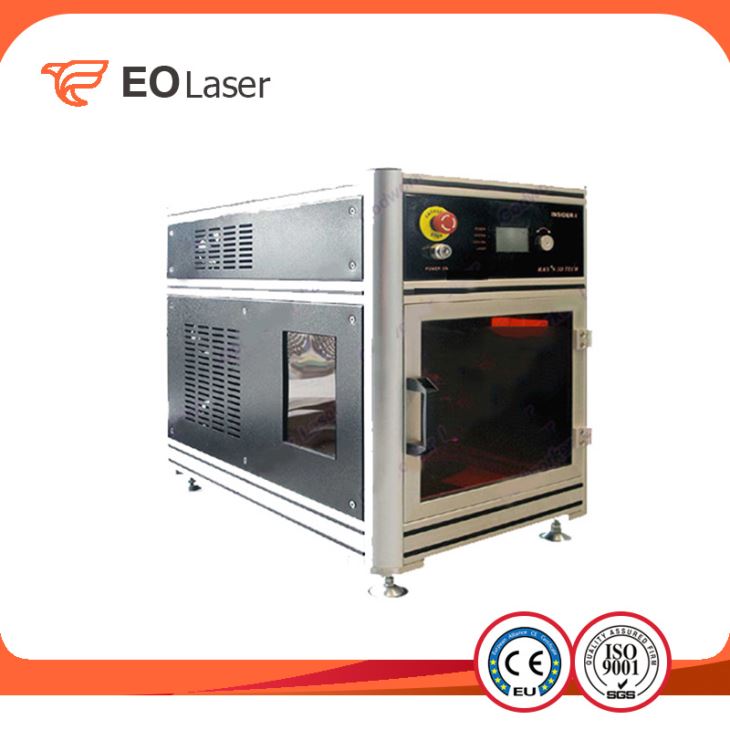

GW-602B 3D Crystal Laser Engraving Machine For Crystal 3D Photo

GW-602B 3D Crystal Laser Engraving Machine For Crystal 3D Photo

Newly developed diode pumped machine structure for crystal, glass and arcylic products laser subsurface engraving process.... Send Inquiry
Product Details




GW-602B-L Laser Sub-surface Engraving MachineParameter
Product main technical indexLaser MediumDiode Pump (German) + YAG (USA)
F-theta lens(mm)F:100 (German)
Pump sourceDiode
Diode Pump useful time20000 Hours
Laser Wavelength532nm (Green Laser)
Highest Frequency of Laser Power Supply2000 HZ
Resolution (DPI)800-1200
Maximum Engraving Range400x300x100mm
Engraving Speed100,000-120,000 dots/min
Engraving time(558 crystal)2 minutes
Engraving time(keychain)25 seconds
Working Way1scanner + X-Y-Z
Repeated location accuracy10μm
Power Supply220V or 110V±10% 50Hz or 60Hz
Power consumption1KW
Laser Head Number1
Continuous Working Time12 hrs
Working Current of the Whole Machine20 A
Control SystemServo control system
Deadweight of Main Machine220 kg
Dimension of Main Machine1240x860x1040mm
Cooling systemCooling WayAir cooler or water cooler optional
Best EnvironmentTemperature15-30°C
Relative humidity<75%
After serviceTraining time10 working days
Warranty1 year
MaintenanceLifelong




Advantage:

GW-602B-L Rapid Scanner Laser Subsurface Engraving Machine adopts the advanced galvanometer scanner technology together with 2 KHz diode-pumped YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively. The key parts of the apparatus mainly come from Germany and the USA. This machine is suitable for individual production and batch fast process. Just one machine could be satisfied with capacity for both storefronts network distribution and electric-business distribution.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
