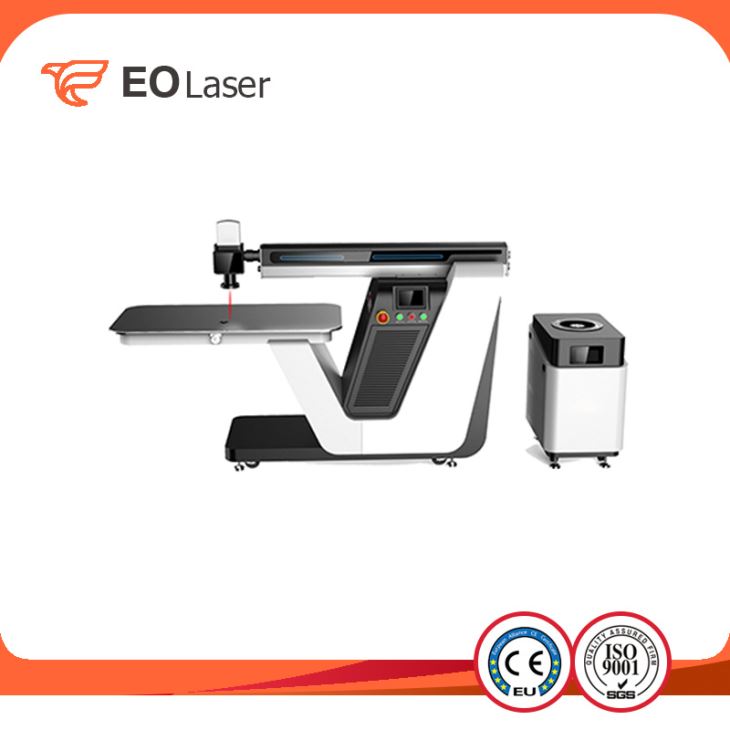

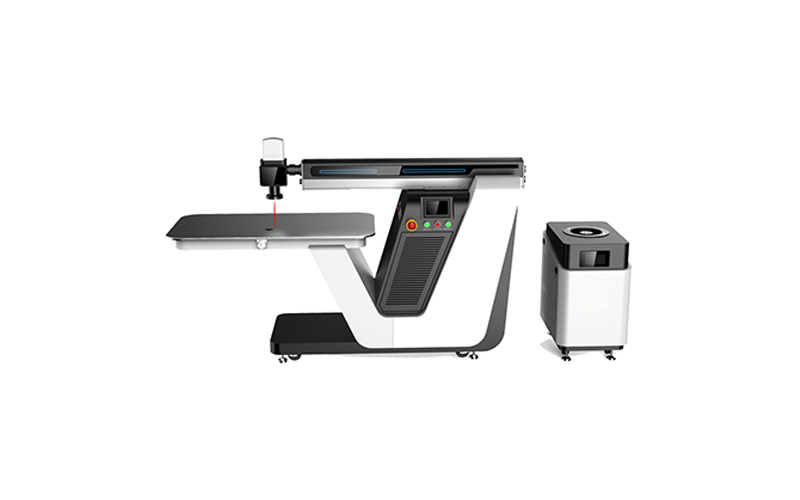

300w Jewelry Laser Welding Machine

300w Jewelry Laser Welding Machine

Red point fast positioning, CCD display, microscope optional.Adjustable working table allows welding from small size to big size of work piece.Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope.... Send Inquiry
Product Details



Quick Details
Condition:New
Place of Origin:China (Mainland)
Brand Name:EO
Model Number:300w
Pulse Width:0.1-20ms
Wavelength:1064 Nm
Focal Spot Diameter:0.2-5.0mm
Max. Output Power:200-300w
Usage:Metal Welding
Power(W):300W
Warranty:2 Years
After-sales Service Provided:Engineers available to service machinery overseas
Model No.:300w Jewelry laser welding machine
Laser source:Nd3+:YAG Rod
Rated power:300w
Laser wavelength:1064nm
Facula diameter:0.20-5.0mm
Operation interface:English
Observing system:CCD
Working table scale:1200*600*12mm
Locating system:Infrared and locating rod
Total power:6KW



Laser Welding Machine:

1: Mechanical designing is more stable and flexible.

2. Complete Technical Team with 8 years Service experience

3. Equip self protection system and EMI technology

4. CE,ISO and FDA Certificates for it .



Features of Laser Welding Machine 300w

1. Red point fast positioning, CCD display, microscope optional

2. Adjustable working table allows welding from small size to big size of work piece

3. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope

4. Slight distortion and affect by heating.

5. Capable of partial heating process.

6. Able to weld with complex, profiled, or tiny letters.

7. Low noise and no pollution.


Technical parameter
Model No.300w
Laser sourceNd3+:YAG Rod
Rated power300w
Total power6KW
Power supply220V, 40A
Laser wavelength1064nm
Facula diameter0.20-5.0mm
Controlling systemSingle-chip microprocessor
Operation interfaceEnglish
Observing systemCCD
Working table scale1200*600*12mm
Locating systemInfrared and locating rod




Our Service

Spot delivery, including delivering small batches of goods Provide wide-range and complete materials series products Cutting plates, including complex shapes of materials and special processing and disposal Cutting bars and strips Our application technology expert provide the best material and recommendation One-stop service.
