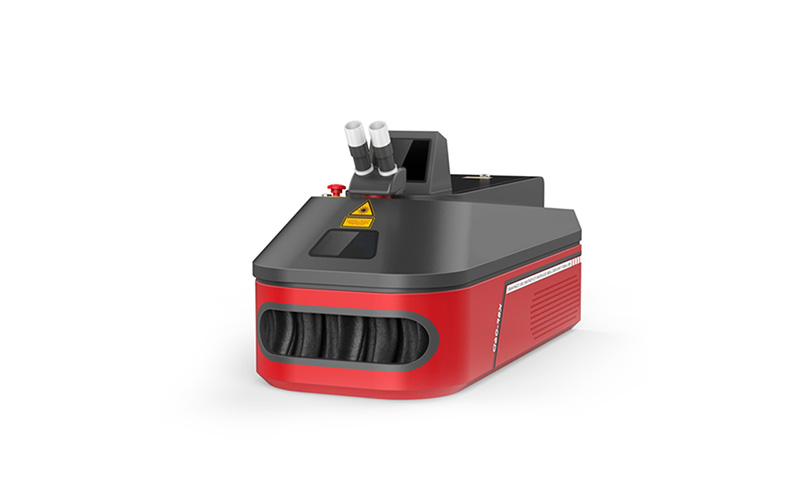

100W Portable Jewelry Laser Welding Machine

100W Portable Jewelry Laser Welding Machine

Laser soldering system portable jewelry laser welding machine price is used to weld spot of jewellery, could weld gold and silver jewellery, with welding wire. It could weld ring, necklace, earring, bracelet etc.... Send Inquiry
Product Details



Quick Details
Condition:New
Place of Origin:China (Mainland)
Brand Name:EO
Model Number:EO-W100
Single Pulse Energy:100J, 100J
Pulse Width:0.3-20ms
Wavelength:1064 nm
Focal Spot Diameter:0.3mm
Max. Output Power:4000w
Dimensions:1100mm*550mm*860mm
Usage:jewelry laser welding machine
Power(W):100W
Certification:CCC, CE, GS, ISO, SGS, UL
Warranty:One Year
After-sales Service Provided:Engineers available to service machinery overseas
Application:jewelry laser welding machine
Model:EO-W100
Power:100W/ 200W optional
Laser type:YAG Laser Welding Machine
Laser wavelength:1064nm Portable Laser Welding Machine
Color:Red with black
Control System:Micro-computer Program Control
Net Weight:80kg

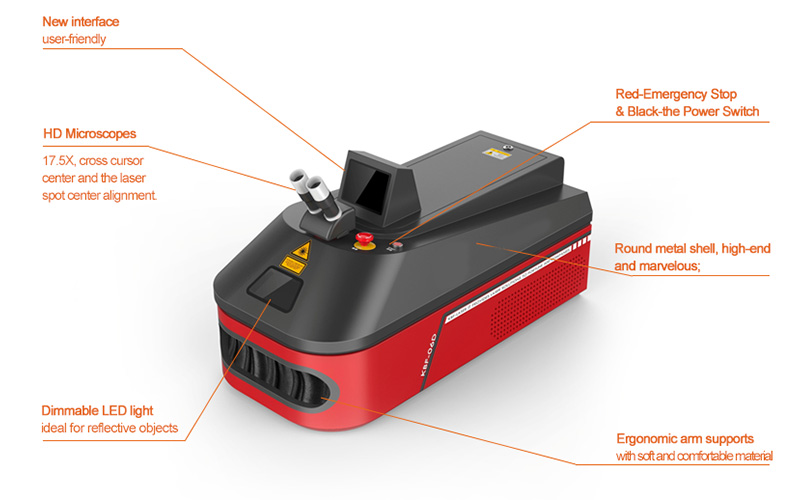

Human-based design according to ergonomics makes the machine precise, nice-looking, stable performance, and long lifetime, more suitable for the exquisite jewels.

Switch for beam, laser parameter adjuster in the working area makes more convenient in use.

Easily change, clean working area, and recycle the welding dust and material.

The adjustable LED shadowless lamp, more clear to observe the welding spot more precise light-spot, meets to precise welding needs.

Used the most advanced auto-shading system, remove the stimulus to the eyes when the machine works.

Applied the golden light-gathering cavity from UK, corrosion resistance, heat resistance, high conversion efficiency. The lifetime for the light-gathering cavity is 8-10 years. The lifetime for the xenon lamp is more than 8 million times.

It uses an imported power source and voltage adjustment control.


Applicable Industry-- Laser soldering system portable jewelry laser welding machine price

Laser soldering system portable jewelry laser welding machine is widely used in aviation, aerospace, sports goods, jewel, golf head, medical instrument, electronics, mechanical process, car industries.

Laser soldering system portable jewelry laser welding machine is suitable for gold, silver, copper, titanium, stainless steel and other metals' patch welding, spot welding, pocket repairing and jaw hand welding when mount parts.

Laser soldering system portable jewelry laser welding machine price


Features-- Laser soldering system portable jewelry laser welding machine price


Laser soldering system portable jewelry laser welding machine is adopt Nd:YAG laser supplier, cooling system and control system as a integrative design, beautiful structure, high output power, good energy stability, simple and convenient operation, reliable performance, wide application and other characteristics.




Our Service

Spot delivery, including delivering small batches of goods Provide wide-range and complete materials series products Cutting plates, including complex shapes of materials and special processing and disposal Cutting bars and strips Our application technology expert provide the best material and recommendation One-stop service.
