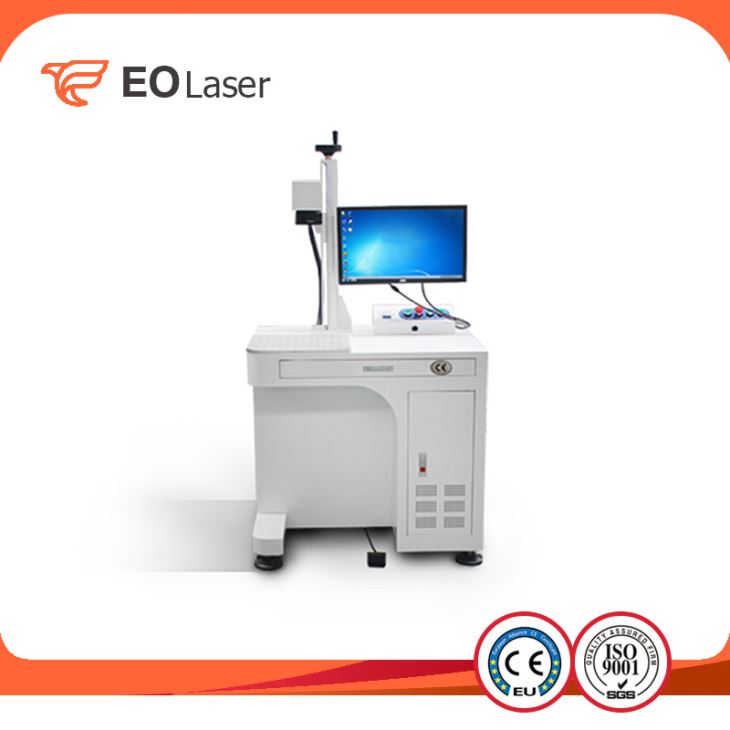

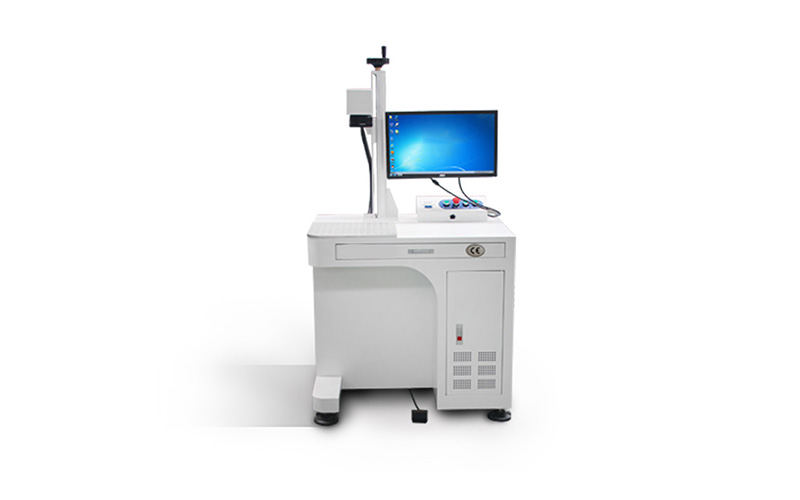

Mini Jewelry Laser Engraving Machine

Mini Jewelry Laser Engraving Machine

Applicable industry of laser marking machine jewellery,sanitary ware, food packing, tobacco products, medical apparatus and instruments, watches&glassware, auto accessories, electronic hardware.... Send Inquiry
Product Details



Quick Details
Application:Laser Engraving
Condition:New
Laser Type:Fiber Laser
Engraving Area:110*110mm
Engraving Speed:0-60000mm/min
CNC or Not:Yes
Cooling Mode:Air Cooling
Applicable Material:Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone
Graphic Format Supported:AI, BMP, DST, DXF, DXP, PLT
Place of Origin:China (Mainland)
Brand Name:EO
Dimension(L*W*H):960*900*1460
Certification:CE, ISO
After-sales Service Provided:Engineers available to service machinery overseas
Laser power:10W 20W
Type:Fiber Laser Marking Metal
Function:Cutting Engraving Marking
Color:White
Laser device:CHINA(German IPG or UK SPI)
Wavelengh:1060nm
Beam quality:㎡<1.5
Laser repetition rate:≤100khz
Standar making scope:110*110MM





Product Application of fiber laser marking machine

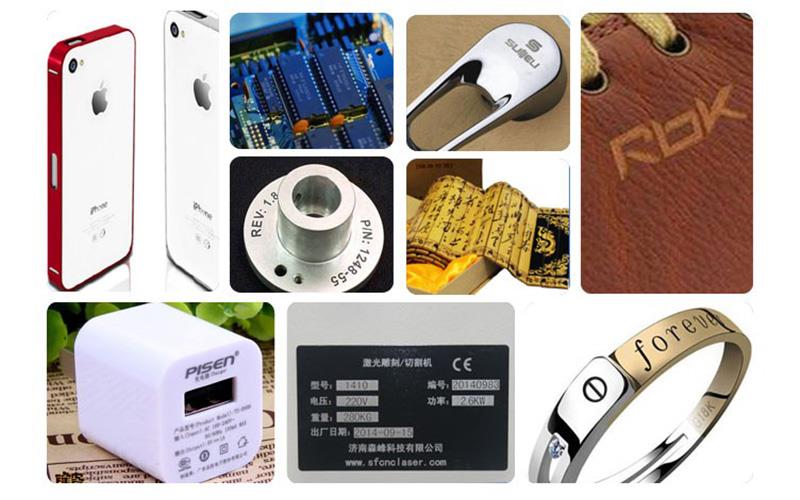

1. Applicable industry of laser marking machine

Gold&silver jewellery,sanitary ware, food packing, tobacco products, medical apparatus and instruments, watches&glassware, auto accessories, electronic hardware.

2. Applicable materials of laser marking machine

Gold&silver, stainless steel, ceramic, plastic, glass, stone, leather, cloth, bamboo etc.

mini laser engraver jewelry laser engraving machine


3. Features of laser cutter

1. High speed with galanometer.

2. Small volume, light weight.

3. Low power, consumption power is less than 500W.

4. Completely air cooling, low power consumption.

5. No influence of the severe environment and temperature change. If no power, battery and car cigarette lighter can be used for working.

6. Greatly reduce the depreciation cost, satisfying customers' stable large quantities production


Technical Data
DescriptionParameter
Working area200*200mm
Laser deviceCHINA(German IPG or UK SPI)
Laser power10w/20w
Wavelengh1060nm
Cooling typeAir cooling
Marking depth≤1.2mm
Working voltage220V/50HZ/10A
Minimum line width0.01mm
Minimum character0.05mm
Repeated accuracy±0.001mm
Consumed power≤500W
Whole machine size960*900*1460mm



Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
