The machine integrates the core technology of super large-scale camera positioning software, machine motion system,machine structure and so on. It can adjust the cutting contour according to the printed graphics. It does not need to make templates and arbitrary combination of graphics in advance....Send Inquiry
|Laser type||Domestic sealed off CO2 laser tube|
|Laser power||100W(optional 130W)|
|Cooling||Industrials constant temperature chiller|
|Moving system||Servo motor|
|Max cutting speed||0-36000mm/min|
|Cutting energy controlling||Can be fine-tuned|
|Cutting speed controlling||Can be fine-tuned|
|Environmental requirements||Temperature 15℃ humidity 30%-80%|
|Power supply||220V/50-60HZ, 10Amax|

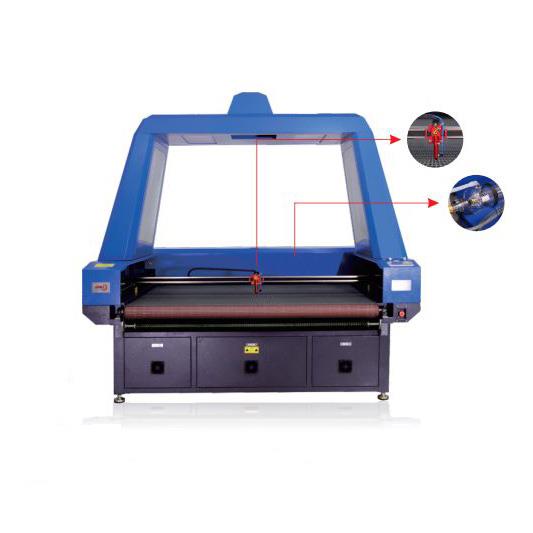

The machine integrates the core technology of super large-scale camera positioning software, machine motion system, machine structure and so on. It can adjust the cutting contour according to the printed graphics. It does not need to make templates and arbitrary combination of graphics in advance. It can automatically extract the graphic contour, realize automatic recognition of high-speed processing, follow-up cutting, and fully intelligently deal with the problem of mateial deformation. The structure is exquiste and not disturbed by the length of the fabric. It is easy to install and has high precision. It is suitable for digital printing clothing, trademark embroidery, shoe upper, flexible fabic, lace and other materials. It is the best automatic scheme for positioning and processing of individual logo. The whole machine is equipped with stainless steel caterpillar working platform, which greatly saves labor and improves production efficiency.
Feature nest cutting: fast large area positioning nest, same size cutting piece; intelligent scaling edge cutting function;
Multi-graphics cutting: arbitrary graphics, arbitrary angle intelligent recognition cutting.
Feature contour extraction: the software scans directly to extract contour without processing graphics;
Cutting worktable: automatic feeding crawler workable, honeycomb workable, blade worktable(optional).
