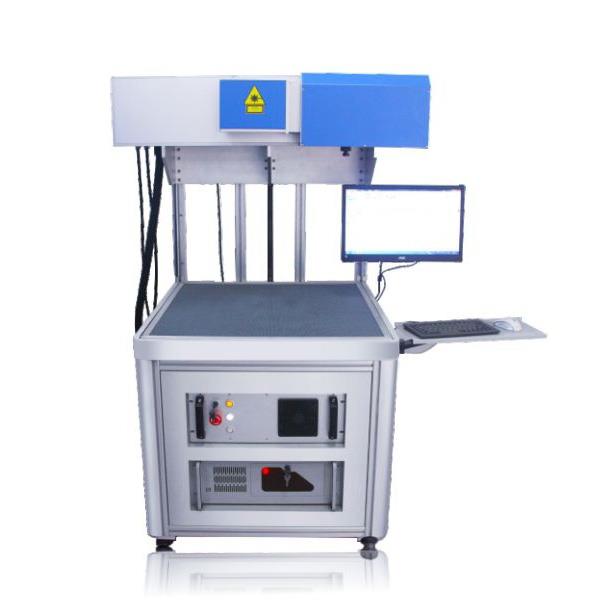

CO2 3D Dynamic Laser Marking Machine

CO2 3D Dynamic Laser Marking Machine

3D dynamic laser marking machine adopts high-speed scanning galvanometer, high-performance imported laser, accurate precision, stable performance, fast speed, high-precision lifting working platform, achieving long-term stable and reliable operation, simple operation and convenient use. The mark is clear....

Send Inquiry
Product Details
Model
EOJM-CO2-DFMEOJM-CO2-CDFM
Laser typeMetal dealed RF CO2 laser generator(10.6um)
CoolingNo coagulate frost water cooling
Rated power≤135W/≤230W≤135W/≤230W
Power range0-165W/0-280W
Frequency0-130KHz/0-100khz0-130KHz/0-100KHz
Scanning speed≤9000mm/s≤9000mm/s
Scanning accuracy±0.1mm±0.1mm
Repeated positioning accuracy±0.02mm±0.02mm
Z-axis response time<3ms<3ms
Processing area300×300mm~600×600mm400×400mm~1000×1000mm(optional 600×600mm~1200×1200mm)
Minimum line width0.17mm
0.17mm
Minimum character1mm
1mm
Power3500W
4500W
Power supply1PH+1 220V 20A 50/60HZ
1PH+1 220V 30A 50/60HZ
Weight160Kg485kg
External size1110mm×900mm×1500mm1600mm×950mm×1700mm
Environmental requirementsTemperature 20℃-30℃, humidity 30%-80%, (no coagulate frost)
System/compatible formatWindows XP/AI、PLT、DXF、DSP、BMP、JPG、JPEG、PNA、TIF.etc.


3D dynamic laser marking machine adopts high-speed scanning galvanometer, high-performance imported laser, accurate precision, stable performance, fast speed, high-precision lifting working platform, achieving long-term stable and reliable operation, simple operation and convenient use. The control software adopts Windows engineering interface, which can be compatible with Coreldraw, AutoCAD and other graphic output files. It can carry out various graphic characters and barcodes, and supports many common graphic text formats, such as PLT. PCX. DXF, etc. SHX, TIF font, encoding, printing serial number, batch number, date, etc.


Features

Applied 3D marking system, large area which can up to 600*600mm, I speed can be increased by 20%, small spot, strong power, red light preview, allowed continuous operation.


Applicable industry

Clothing, leather products, crafts gifts, packaging, advertising and oyher industries.


Applicable materials

Non-metallic materials such as leather, cloth, wood products, bamboo products, plastics, acrylic, marble, crystal, jade, etc.


截图20190628161031

Inquiry
Hot Tags: co2 3d dynamic laser marking machine, China, manufacturers, suppliers, buy, cheap, price
