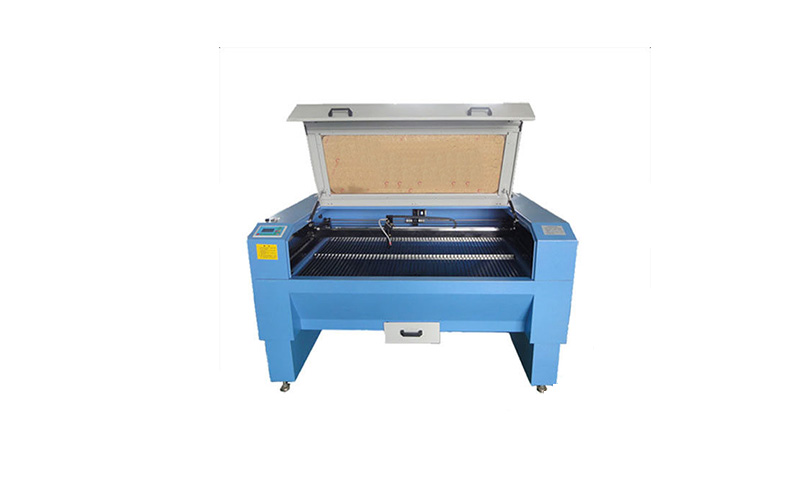

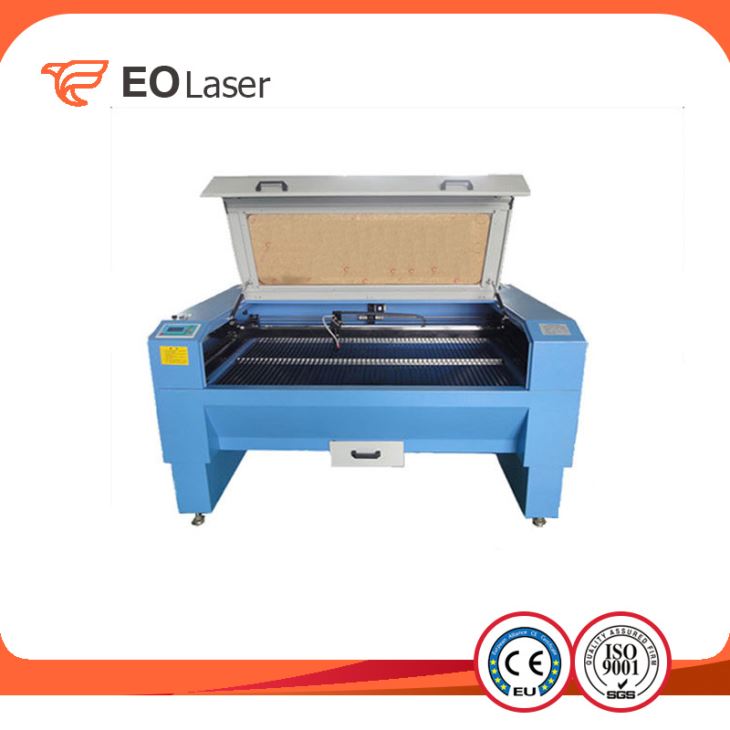

Leather Co2 Laser Cutting Machine

Leather Co2 Laser Cutting Machine

LB-CE Series Laser Cutting machine are the high-tech product which using the CO2 laser as energy power, and integrating technologies of optics and mechatronics. It is combined organically by the stepping motor driving system, the mechanical system of synchronous belt, wheel adn straight axis, and the new technology of DSP digital control and USB data transmission.... Send Inquiry
Product Details



Product Details
Place of Origin:Chine
Brand Name:Leadboom
Certification:CE
Model Number:LB-CE1680




Technical Parameters
TypeLB-CE6040LB-CE9060LB-CE1280LB-CE1390LB-CE1680
Laser Power

60W/80W

60W/80W80W/100W80W/100W80W/100W
Working area600x400mm900x600mm1200x800mm1300x900mm1600x800mm
Laser typeCO2 Sealed Glass tube laser
Off-line motion controlUSB data import
Laser wavelength10640nm
Max.curve movement speed50000mm/min Stepping motor
Cutting speed0-40000mm/min Stepping motor
Min. Carving CharacterChinese character 2.0x2.0mm, English 1.0x1.0mm
Repeated precision±0.001mm
Max. scanning accuracy2500 DPI
Power supplyAC220V/50Hz

Coolling

system

Water-cooling


Product Overview

CNC Laser Cutting Machine is using the energy released from the workpiece when irradiated by laser beam, to make the workpiece melt and evaporate, so as to cut and engrave. Laser cutting is of high-rate precision and speed, and is not limited by patterns. The automatic composing can save materials largely, and the incision is vey smooth, and also the processing cost is much lower. With those qualities, the laser cutting machine will replace the traditional cutting Equipment.


Application Materials & fields

Cloth, tile, cardboard, paper, leather, PU leather, trademark embroider, plastic, rubber, wood products, wood, organic glass, acrylic, jade, leather, shell, horn, animal sebum, double color boards, bamboo and wood products, ABS board, PVC board, fiber and composite materials etc. Nonmetal materials.



Shoes, leather clothing, trademark processing, embroidery, advertisement, decoration, wood processing, packaging and printing, laser knife die, decoration decoration industry, printing tipping template, process gifts industry, electronic industry, model industry (architecture model, aviation and navigation models and wooden toys), etc.



Advantages

Adopt the off-line motion control system which need not be connected to PC operation. Use USB data import, can reserve many processing documents.

Strong and stable mechanical structure and digital control.

Imported the American focusing mirror and silicon bottom gilded mirror with thin light spot and cutting force.

Equiped with professional industrial cooling water system, so the continuous work performance is very stable .

Support AI, BMP, PLT, DXF, DST (tajima embroidery software) image data format import.

Support TAJIMA embroidery software (TAJIMA), CORELDRAW, PHOTOSHOP, AUTOCAD, all kinds of clothing CAD software.

Equipment can choose servo drive and imported linear guide, enhance stability, improve accuracy, increase the work efficiency.

Can adopt double-head laser cutting, with big processing dimension and high processing efficiency.



Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
