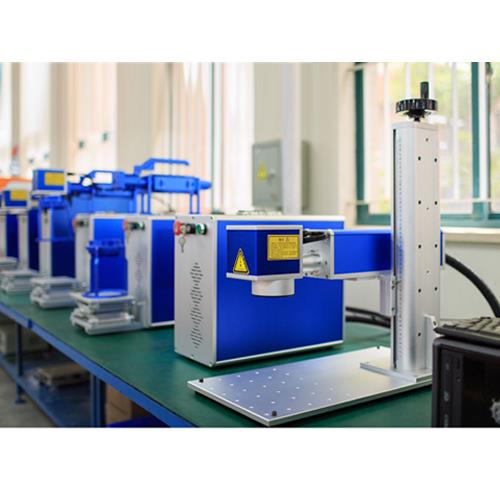

Fiber Laser Marking Etching Machine for Metal

Product Name: Fiber Laser Marking Etching Machine For Metal
Classification: Metal Laser Etching Machine
Application: Automobile Parts, Jewelry, etc
Place Of Origin: China
...

Send Inquiry
Product Details

Fiber Laser Marking Etching Machine For Metal adopts international most advanced technology and the laser source is fiber with USA IPG technology, lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance. we have 2 years warranty time for our laser source ,The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.


Product Parameters


Model No.

PEDB-400A

PEDB-400B

PEDB-400C

PEDB-400D

Type

Portable

Desktop

Colorful

Floor Stand

PC includes or not

Not includes PC

includes PC

Laser Source

IPG Series:

Pulsed, High Energy Ytterbium Fiber Lasers

Mode of operation

Pulsed

Polarization:

random

Nominal average output power

10W - 20W

Central emission wavelength:

1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%

Emission Bandwidth (FWHM)

<10 nm

Long-term average power instability

<5%

Pulse width, (FWHM)

100 ns

Laser switching ON time

180 μsec

Laser switching OFF time

180 μsec

Pulse Repetition Rate* kHz

20-80 kHz

Energy per pulse (PRR = 20 kHz)

0.95 mJ

Typical beam quality, M2

<1.8

Output fiber delivery length

3m

Operating voltage:

220V

Max. Power consumption:

600W

Net Dimensions:

70*20*50cm

58*22*50cm  80*38*72cm

70*20*50cm

143*62*101cm

Net Weight:

44 kgs

53 kgs

44 kgs

130 kgs

Gross Weight:

60 kgs

70 kgs

60 kgs

150 kgs

Laser system

Scanning Speed:

0-7000mm/s

Marking Speed:

0-5000mm/s

Marking size:

110mm×110mm (F-theta 160)

Spot size:

≤ 40 micron (F-theta 160)

Cooling unit:

Air cooled

Pilot laser:

650nm diode laser, visible red light for marking guide

Continuous working time:

≥16h

Humidity:

45~85% (no condensation)

Operating temperature:

0~40°C

Control units

CT-MARK (English Version)



Product Application

1.jpg Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer keyboard.

1.jpg Apparatus And Meter: Panel signs, precision equipment ,etc.,

1.jpg Instrument: Panel signs nameplates, precision equipment ,etc.,

1.jpg Hardware Tools : Knives, tools, measuring tool, cutting tool, etc.,

1.jpg Automobile Parts : Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,

1.jpg Mechanical Parts : Bearings, gears, standard parts, motors, etc.,

1.jpg Daily Necessities : Handicrafts, zipper, key holder, sanitary ware, etc.,

1.jpg Jewelry: Rings Jewelry, gold, silver,etc.

1.jpg Food, drinking packing: Plastic packings,etc.


Product Features

1.jpg Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.

1.jpg High Precision: Re-position precision is 0.002mm

1.jpg High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s

1.jpg Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.

1.jpg High Reliability: MTBF>100,000 hours


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of Fiber Laser Marking Etching Machine For Metal, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
