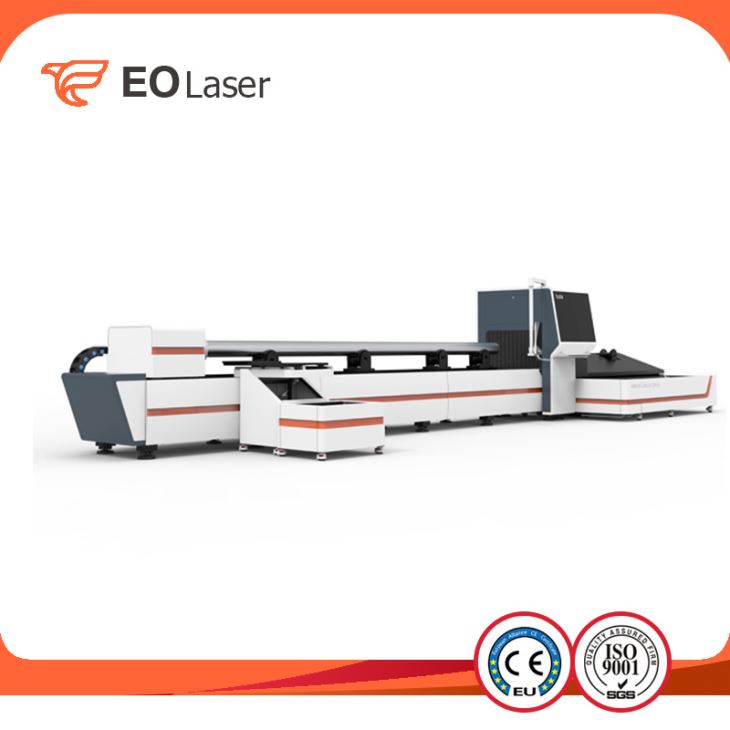

Laser Etching Fiber Laser Machine For Carbon Tube Metal

Laser Etching Fiber Laser Machine For Carbon Tube Metal

Especially for cutting of stainless steel, carbon steel, alloy steel, aluminum, copper, titanium, or other metal material, Industry: Petroleum exploration, lamps, metal, tool-processing and other.... Send InquiryChat Now
Product Details



Quick Details
Application:Laser Engraving
Condition:New
Laser Type:Fiber Laser
Engraving Area:1500mmx3000mm
Engraving Speed:25m/min
CNC or Not:Yes
Cooling Mode:Water Cooling
Applicable Material:Metal
Graphic Format Supported:AI, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin:China (Mainland)
Brand Name:EO
Model Number:T6
Dimension(L*W*H):40HQ
Certification:CE, ISO, SGS, FDA BV
After-sales Service Provided:Overseas service center available
Laser power:1000w
Model:T6
Max output power:500-4000w
Effective pipe cutting diameter:20mm-200mm
Effective pipe cutting length:3000mm/6000mm/9000mm
Worktable axial positioning accuracy:0.05mm
Worktable reposition accuracy:0.03mm
Function:Cutting Pipe
Software:EO Pro




Product Application

Especially for cutting of stainless steel, carbon steel, alloy steel, aluminum, copper, titanium, or other metal material,

Industry: Petroleum exploration, lamps, metal, tool-processing and other.

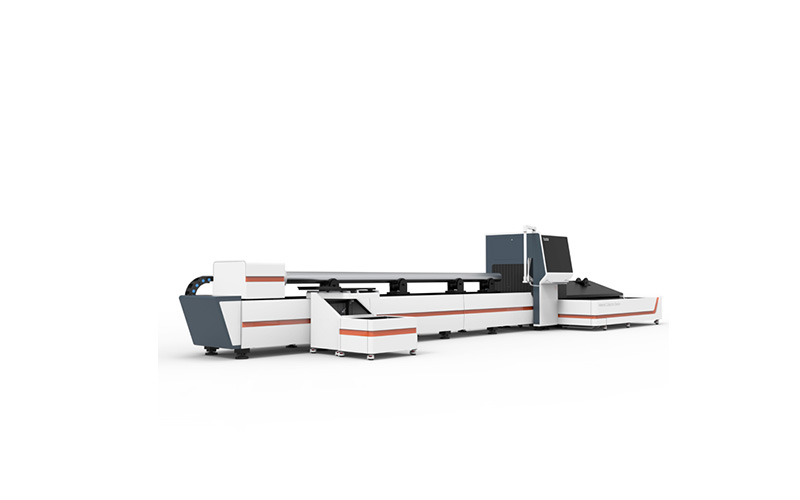

Parameter of square pipe fiber laser cutting machine
ModelT6
Tube Length3m/6m/9m
Laser power500w~4000w
Cutting speed35min/mm
Effective pipe cutting diameter≤200mm
Worktable axial positioning accuracy±0.04mm
Effective pipe cutting length6m
Worktable reposition accuracy≤±0.04mm
Pulse Width0.3~20MS
Laser Power Stability≤±3%
Pipe Wall Cutting Thickness≤6mm(depend on the material
Electrical Source380V50Hz/100A
Graphic Format SupportedAI, BMP, DST, DWG, DXF, DXP, LAS, PLT



Main Features square pipe fiber laser cutting machine

1) Can cut lines and holes with different diameters from different directions on the pipe, and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.

2) Can cut inclined section at the end section of the pipe.

3) Can cut branch pipe intersected with the main circular pipe.

4) Can cut variable angle bevel surface

5) Can cut square hole, waist-shaped holes and circular hole on the pipe.

6) Can truncate the pipe.

7) Can cut all kinds of graphics on the surface of the square pipe.face. It is mainly used for metal crafts, metal products, precision machinery, auto parts and other industries.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
