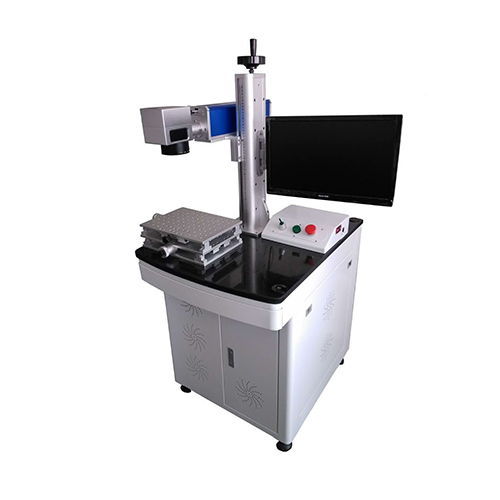

3D Mini Fiber Laser Marking Machine

3D Mini Fiber Laser Marking Machine

Product Name: 3D Mini Fiber Laser Marking Machine
Classification: Fiber Laser Marking Machine
Application: metal, etc
Place Of Origin: China
... Send Inquiry
Product Details

Product Parameters


Product Model

ELE 200 fiber laser marking machine

Laser Tube

made in China(optional Germany IPG or Britain SPI)

Laser Power

10W/20W

Laser Length

1060mm

Quality of Lase Beam

m2<1.5

Laser Repetition Frequency

≤100 KHz

Standard Marking Area

110×110mm

Optical Marking Area

50*50mm,100*100mm,50*150mm

Engraving Depth

≤1.2mm

Engraving Speed

≤12000mm/s

Minimum Line Width

0.01mm

Minimum Character

0.05mm

Resolution Ratio

±0.001mm

Gross Power

≤500W

Working Voltage

200V/50Hz/10A



Product Application

1.jpg Applicable Industry:

gold & silver jewellery, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus and instruments, watches & glassware,   auto accessories, electronic hardware.

1.jpg Applicable Materials:

gold & silver, stainless steel, ceram, plactic, glass, stone, leather, cloth, bamboo and so on.


Product Features

1.jpg High speed with galvanometer.

1.jpg Small volume,light weight.

1.jpg Low power,consumption power is less than 500w.

1.jpg Completely air cooling,low power consumption.

1.jpg No influence of the severe enviroment and temperature change.If no power,battery and car cigarette lighter can be used for working.

1.jpg Greatly reduce the depreciation cost,satisfying customers' stable large quantities production.


More

Our Services:

Pre-sale services: enthusiasm

We provide you with the process plan, process flow design and manufacturer equipment according to your special demand.

Sale services: servant

Send technicians to the job site for guiding the installation and adjustment of 3D Mini Fiber Laser Marking Machine, training operators and finishing the check and accept together with you.

After-sale services: faithfulness

To establish long term friendship, we will regularly pay return visit to customers.
