Laser Etching Machine for Plastic

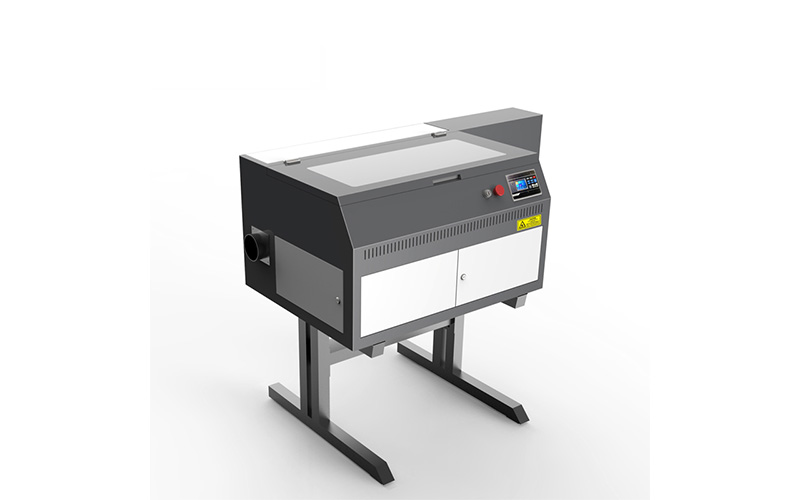

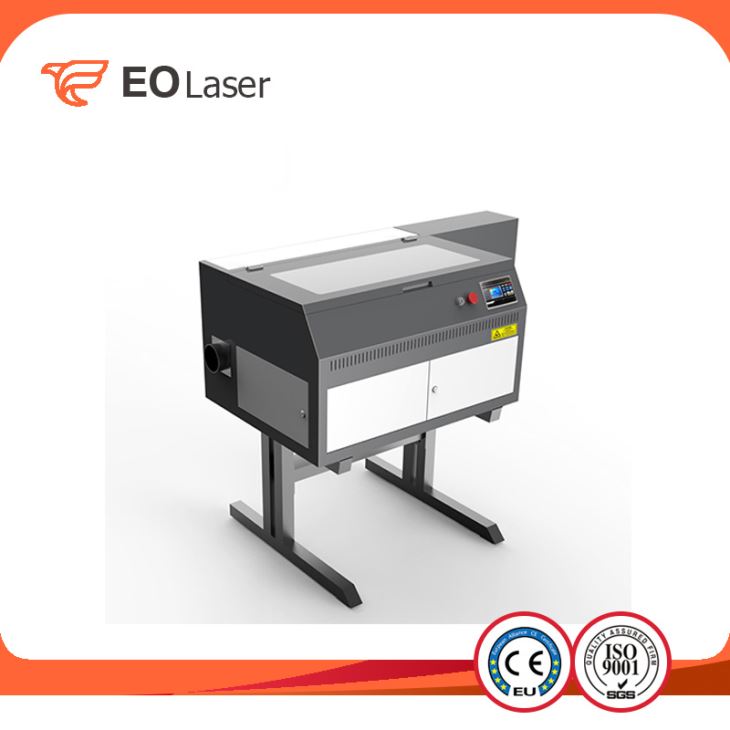

Desktop Photo Laser Etching Machine

Desktop Photo Laser Etching Machine

This mini machine is especially designed for art & crafts engraving industry.It occupies limited space and can be put on the desk. Its really the best choice for art & crafts industry.... Send InquiryChat Now
Product Details



Quick Details
Application:Laser Engraving
Condition:New
Laser Type:CO2
Engraving Area:20*12"
Engraving Speed:6000mm/m
CNC or Not:Yes
Cooling Mode:Water Cooling
Applicable Material:Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported:AI, BMP, DXF, DXP, PLT
Place of Origin:China (Mainland)
Brand Name:EO
Model Number:EO500
Certification:CE, ISO
After-sales Service Provided:Engineers available to service machinery overseas
desktop laser engraver:high precise laser
Option:Rotary, auto focus, red dot pointer
platform:motorized up/down
cotroller:Leetro 6515 cards
color:as arrange
Drving system:Leadshine stepper or Sanyo servo
parts:honeycomb, water pump, air pump, exhaust fans
connector:USB or PCI
table:Honeycomb
Software:Laser cut or Wisdom





 Specification:

1) Engraving area: 500 x 300mm

2) Whole machine size: 1,300 x 660 x 450mm

3) Laser power: 60W

4) Engraving speed: 0 - 54,000mm/min

5) Resetting positioning accuracy: ±0.01mm

6) Power supply: AC 110 - 220V ±10%, 50 - 60Hz

7) Gross power: <1,000W

8) Operating temperature: 0 - 45°C

9) Operating humidity: 8 - 95%

10) Minimum shaping character: English 1 x 1mm

11) Graphic format supported: BMP, HPGL, PLT, DST, DXP, and AI

12) Driving system: stepper

13) Cooling mode: water-cooling and protection system

14) Table: up and down platform

15)Auxiliary equipments :Exhaust-fans, air-exhaust pipe

16)Controlling software : DSP control system.

17)Compatible software: CorelDraw  AutoCAD  Photoshop

18)Laser- type: Sealed CO2 laser tube

19)Net Weight:80KG


Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other    nonmetal materials.

Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and    clipping, packaging and paper industry




Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
